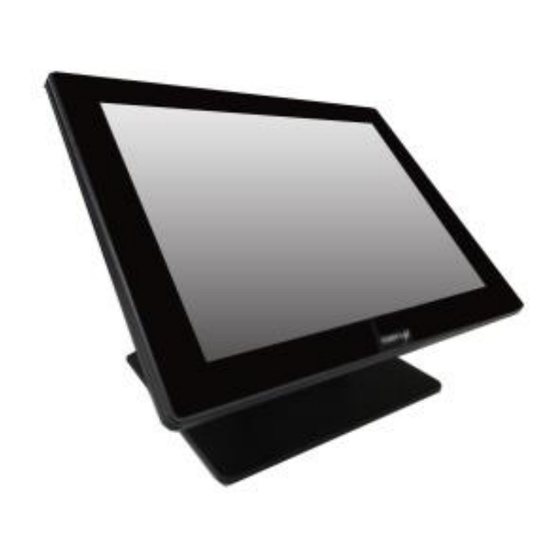

Fanless touch pos terminal

Advertisement

Quick Links

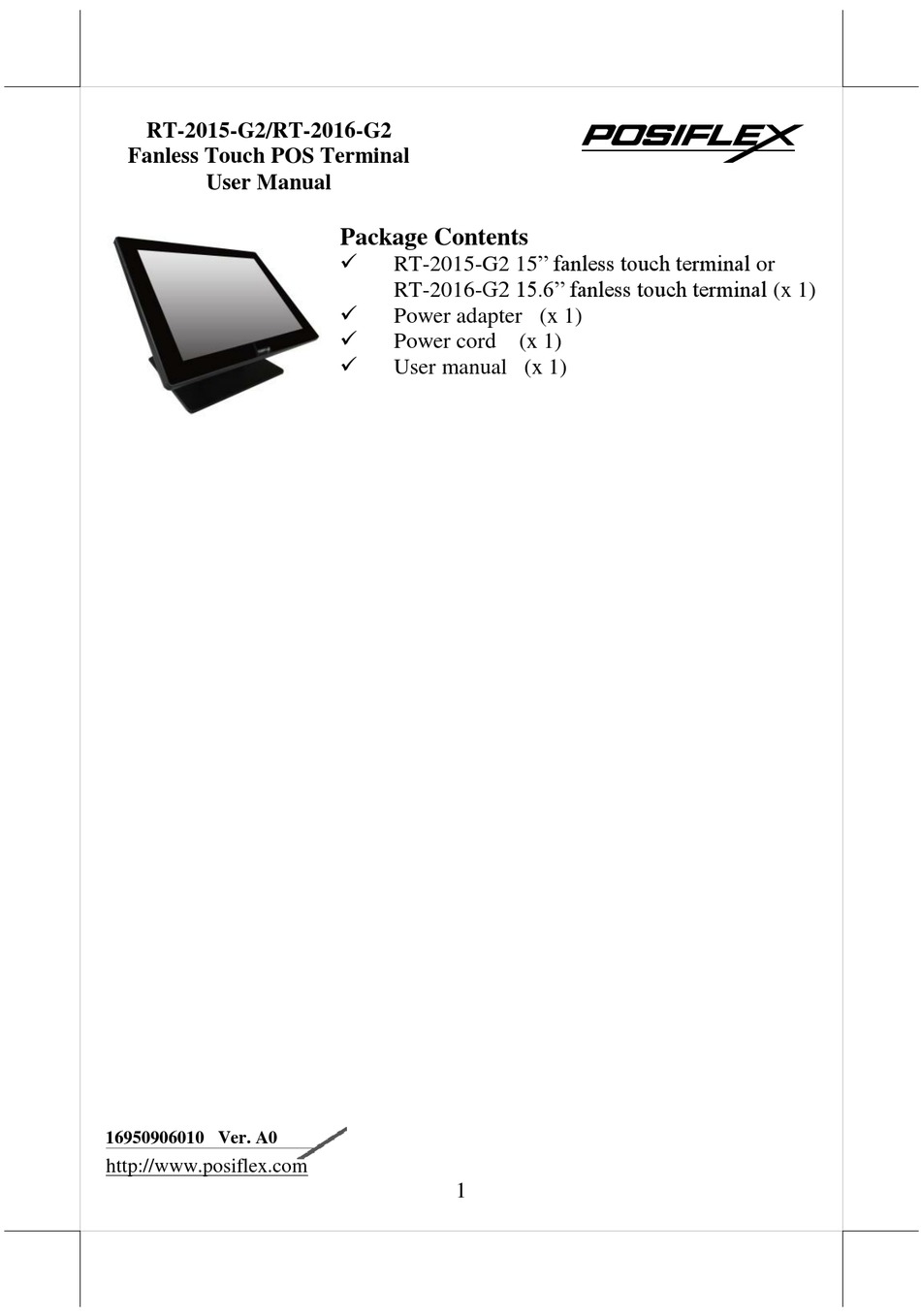

RT-2015-G2/RT-2016-G2
Fanless Touch POS Terminal
User Manual
16950906010 Ver. A0
http://www.posiflex.com
Package Contents
RT-2015-G2 15" fanless touch terminal or
RT-2016-G2 15.6" fanless touch terminal (x 1)
Power adapter (x 1)
Power cord (x 1)
User manual (x 1)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the RT-2015-G2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for POSIFLEX RT-2015-G2

  • Page 1 RT-2015-G2/RT-2016-G2 Fanless Touch POS Terminal User Manual Package Contents  RT-2015-G2 15” fanless touch terminal or RT-2016-G2 15.6” fanless touch terminal (x 1)  Power adapter (x 1)  Power cord (x 1)  User manual (x 1) 16950906010 Ver. A0...
  • Page 2 SOME IMPORTANT NOTES FCC NOTES This system meets industry & government requirements and applicable standards. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause interference to radio communications. It has been tested and found to comply with limits for a Class A digital device pursuant to subpart B of Part 15 of FCC Rules, which are designed to provide reasonable protection against interference when operated in a commercial environment.
  • Page 3 n'est en aucun cas responsable de tout dommage ou danger causé par une mauvaise application. 警告使用者 這是甲類的資訊產品,在居住的環境中使用時,可能會造成射頻干擾, 在這種情況下,使用者會被要求採取某些適當的對策。 BATTERY CAUTION NOTES  Dispose of used batteries according to the instructions.  Replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types) ...
  • Page 4 Views of RT-2015-G2/RT-2016-G2 Front View RT-2015-G2/RT-2016-G2 P-Cap Touch Panel 15” RT-2015-G2 15.6” RT-2016-G2 Rear View System Back Cover Attachment Bay Stand Cover Cable Exit Bottom View Screw for Fire-Resistant System Back Cover Release Lever for System Back Cover...
  • Page 5 RB-5000 will beep once every second. At this moment, power off the RT terminal immediately. To get more detailed information of RB-5000, please contact the service team of Posiflex or download the RB-5000 user manual from Posiflex Global Website: (http://www.posiflex.com/en-global/Download/download).
  • Page 6 View of I/O Interface of RT-2015-G2/RT-2016-G2 Bottom Side View LAN Port USB 2.0 Ports CR Port DB9 COM Port RJ50 COM Ports Mini DisplayPort USB 3.0 Ports DC IN Power Connector Side View USB 2.0 Port...
  • Page 7 Positioning your POS for a Perfect Viewing Angle Steady the base with one hand, and then tilt the screen in the direction shown by the arrow in the figure. Please do NOT press on the LCD panel while setting up the tilt angle. Installing Power Adapter and Cables The following provides instructions required to install your cables.
  • Page 8 To remove the stand cover from the base, grab the top side of the cover, (1) lift the stand cover up gently, (2) pull it at a 45 degree angle, and then (3) slide it in the horizontal direction shown by the arrow.
  • Page 9 Place back the sytem back cover. Make sure it is well locked into place with a click sound. For the fire-resistant system back cover, please insert another screw into the screw hole indicated in the figure, and secure it. Screw for Fire-Resistant System Back Cover Make sure the cable could be pulled out of the cable exit from the bottom of the base.
  • Page 10 Installing Optional Upgrade Kits and Peripherals RT-2015-G2/2016-G2 is an expandable model which allows you to upgrade its own capacity by additionally installing multiple peripheral devices, such as magnetic stripe reader (MSR), fingerprint or iButton sensors, and 2 rear- mount POS monitor, according to your preference. The following will give you brief instructions on how to expand on your current POS system with these optional upgrade kits.
  • Page 11 Hold down the release lever at the bottom of the system back cover and then pulling the cover outwards To remove the stand cover from the base, grab the top side of the cover, (1) lift the stand cover up gently, (2) pull it at a 45 degree angle, and then (3) slide it in the horizontal direction shown by the arrow.
  • Page 12 Install power adaptor extension cable, USB cable, and power adaptor for PoweredUSB hub. Insert one end of the provided power adaptor extension cable to DC Input port of PoweredUSB hub and another end to DC-in power jack of the terminal. Insert mini-USB connector of the USB cable to PoweredUSB hub and another end to USB3.0 port of the terminal.
  • Page 13 Description System power OFF Orange System standby Blue System power ON Powering ON/OFF RT-2015-G2/2016-G2 Power Power ON RT-2015-G2/2016-G2 Button Press down the power button to power on the POS. Power OFF RT-2015-G2/2016-G2 In most cases, press the power button of the POS to power the system off.
  • Page 14: Installing An Operating System

    Operation Environment To prevent RT-2015-G2/2016-G2 from overheating, it is suggested to position your terminal in a well-ventilated working environment. In doing so, please be advised to keep the POS terminal at least 25mm away from other devices to ensure the machine is properly cooled down and functioning normally.
  • Page 15 USB port replicator ( USB2.0 x 4, installed in base stand) UPS battery stand RB-5000 ※ The product information and specifications are subject to change without prior notice. To get the detailed information on the RT-2015-G2/2016-G2, please check this model from Posiflex Global Website.
  • Page 16 <MEMO>...
