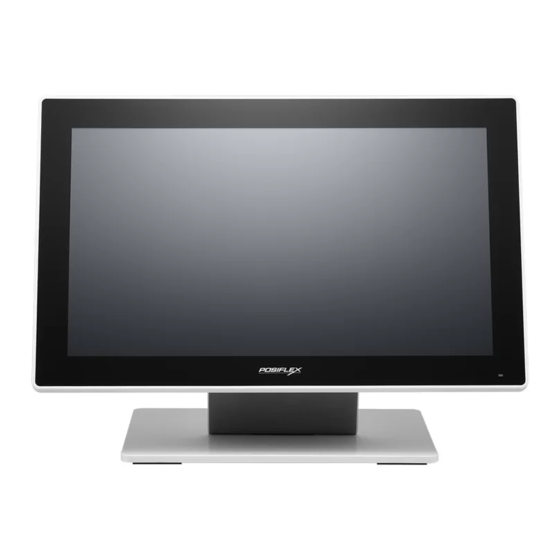

RT-1016A
Fanless Touch POS Terminal
User Manual
16950903030 Ver. C0
http://www.posiflex.com
Package Contents
RT-1016A 15.6" fanless touch terminal.....x1
Power adapter...................................x1
Power cord.......................................x1
User manual.....................................x1
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for POSIFLEX RT-1016A
Summary of Contents for POSIFLEX RT-1016A
- Page 1 RT-1016A Fanless Touch POS Terminal User Manual Package Contents RT-1016A 15.6” fanless touch terminal…..x1 Power adapter……………………………..x1 Power cord………………………………...x1 User manual……………………………….x1 16950903030 Ver. C0 http://www.posiflex.com...
- Page 2 SOME IMPORTANT NOTES FCC NOTES This system meets industry & government requirements and applicable standards. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause interference to radio communications. It has been tested and found to comply with limits for a Class A digital device pursuant to subpart B of Part 15 of FCC Rules, which are designed to provide reasonable protection against interference when operated in a commercial environment.
- Page 3 這是甲類的資訊產品，在居住的環境中使用時，可能會造成射頻干擾，在這 種情況下，使用者會被要求採取某些適當的對策。 SAFETY INSTRUCTIONS This equipment is not suitable for use in locations where children are likely to be present. CONSIGNES DE SÉ CURITÉ Cet équipement ne convient pas à une utilisation dans des lieux pouvant accueillir des enfants. BATTERY CAUTION NOTES ...
- Page 4 Views of RT-1016A Front View Camera (Optional) P-Cap Touch Panel LED indicator Rear View Bottom View...
- Page 5 RB-5000 will beep once every second. At this moment, power off the RT terminal immediately. To get more detailed information of RB-5000, please contact the service team of Posiflex or download the RB-5000 user manual from Posiflex Global Website: (http://www.posiflex.com/en-global/Download/download).
- Page 6 View of I/O Interface of RT-1016A Bottom Side USB 2.0 Ports RJ50 COM Port Micro USB Port SD Card Slot DC IN Power Connector LAN Port USB 3.0 Port DB9 COM Port CR Port HDMI Port Left Side USB 2.0 Port...
- Page 7 Remove the system back cover. If the system back cover is fire-resistant, first locate the screw as indicated in the figure, and then remove it. Screw for Fire-Resistant System Back Cover Hold down the release lever at the bottom of the system back cover and then pulling the cover outwards.
- Page 8 Neatly arrange the cables. Locate the cable holder inside the base as shown in the figure. Push down the lever to release if from the hook, pass the cable through cable holder, and then press down the lever again to lock it onto the hook. Cable holder Make sure the cord can be held into place and passed through the cable exit after...
- Page 9 à la terre. Installing Optional Upgrade Kits and Peripherals RT-1016A is an expandable model which allows you to upgrade its own capacity by additionally installing multiple peripheral devices, such as magnetic stripe reader (MSR), fingerprint or iButton sensors, and 2 monitor, according to your preference.
- Page 10 RT-series POS terminal also allows you to additionally install rear-mount POS monitor to expand its functionality. Regarding the step- by-step instructions which aim to help you mount it onto your POS system, Please refer to the user manual specific to the device you intend to install.
- Page 11 Align the two screw bolts at the bottom of PoweredUSB or USB hub with rail slots in the base. Push PoweredUSB or USB hub in the direction shown by the arrow to lock it into place. To remove the PoweredUSB or USB hub from the rail slots, press down the hubs first and then push it outwards.
-
Page 12: Status Led Indicator
To Install USB cable for USB hub, Plug Type-A connector of USB cable to USB Port of USB hub and the other end of USB cable to USB3.0 port of the POS terminal. Neatly arrange your cable and then slide back the stand cover. -
Page 13: Operation Environment
10 seconds to force a shutdown of the system. Operation Environment To prevent RT-1016A from overheating, it is suggested to position your terminal in a well-ventilated working environment. In doing so, please be advised to keep the POS terminal at least 25mm away from other devices to ensure the machine is properly cooled down and functioning normally. - Page 14 USB port replicator ( USB2.0 x 4, installed in base RT-560 stand) RB-5000 UPS battery stand ※ The product information and specifications are subject to change without prior notice. To get the detailed information on the RT-1016A, please check this model from Posiflex Global Website.
- Page 15 <MEMO>...
- Page 16 <MEMO>...
