RT-6015-G2/RT-6016-G2
RT-6015Q-G2/RT-6016Q-G2

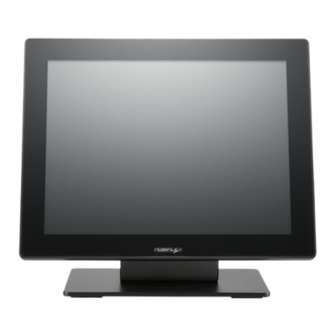

Fanless Touch POS Terminal
User Manual
SOME IMPORTANT NOTES
FCC NOTES
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
CE CLASS A WARNING
This equipment is compliant with Class A of CISPR 32. In a residential environment this
equipment may cause radio interference.
AVERTISSEMENT CE CLASSE A
Cet équipement est conforme à la classe A de CISPR 32. Dans un environnement
résidentiel, cet équipement peut provoquer des interférences radio.
WARRANTY LIMITS
Warranty will terminate automatically when the machine is opened by any person other than
the authorized technicians. The user should consult his/her dealer for the problem happening.
Warranty voids if the user does not follow the instructions in application of this merchandise.
The manufacturer is by no means responsible for any damage or hazard caused by improper
application.
LIMITES DE GARANTIE
La garantie prend fin automatiquement lorsque la machine est ouverte par une personne
autre que les techniciens autorisés. L'utilisateur doit consulter son revendeur pour le
problème qui se produit. La garantie s'annule si l'utilisateur ne suit pas les instructions
d'application de cette marchandise. Le fabricant n'est en aucun cas responsable de tout
dommage ou danger causé par une mauvaise application.
RT-6xxx-G2/6xxxQ-G2 Ver. B0
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for POSIFLEX RT-6015-G2
Summary of Contents for POSIFLEX RT-6015-G2
- Page 1 RT-6015-G2/RT-6016-G2 RT-6015Q-G2/RT-6016Q-G2 Fanless Touch POS Terminal User Manual SOME IMPORTANT NOTES FCC NOTES This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 2 警告使用者 為避免電磁干擾，本產品不應安裝或使用於住宅環境。 SAFETY INSTRUCTIONS This equipment is not suitable for use in locations where children are likely to be present. CONSIGNES DE SÉ CURITÉ Cet équipement ne convient pas à une utilisation dans des lieux pouvant accueillir des enfants. WARNING Power cord shall be connected to a socket-outlet with earthing connection.
-
Page 3: Revision History
The mechanical part has modified the neck cover, back cover and base to improve the inconvenience that consumers may encounter when using it. Package Contents RT-6015-G2/RT-6015Q-G2 15” fanless touch terminal or RT-6016-G2/RT-6016Q-G2 15.6” fanless touch terminal..…………..(x1) Power adapter………………………………………………………..(x1) Power cord………………………………………………………….…(x1) - Page 4 Rear View System Back Cover Attachment Bay Stand Cover Cable Exit Bottom View Screw for Fire-Resistant System Back Cover Release Lever for System Back Cover Left-Side View Power Button Brightness Adjustment Button ＋ Brightness Adjustment Button －...
- Page 5 RB-5000 will beep once every second. At this moment, power off the RT terminal immediately. To get more detailed information of RB-5000, please contact the service team of Posiflex or download the RB-5000 user manual from Posiflex Global Website: (https://download.posiflex.com/en-...
- Page 6 Views of RT-6015Q-G2/RT-6016Q-G2 Front View Camera (Optional) P-Cap Touch Panel LED indicator LED indicator 15” RT-6015Q-G2 15.6” RT-6016Q-G2 Rear View Thumbscrew for VESA Mount Bracket System Back Cover Attachment Bay Pole Mount Screw Hole Bottom View Screw Hole Release Lever for System Back Cover...
-
Page 7: Bottom Side View
Right-Side View Power Button Brightness Adjustment Button ＋ Brightness Adjustment Button － View of I/O Interface of RT-6xxx-G2/6xxxQ-G2 RT-6015-G2/RT-6016-G2 Bottom Side View USB 3.0 Ports LAN Port CR Port DB9 COM Port RJ50 COM Ports Mini DisplayPort DC IN USB 2.0 Ports... -
Page 8: Left Side View
Left Side View USB 2.0 Port Positioning your POS for a Perfect Viewing Angle Steady the base with one hand, and then tilt the screen in the direction shown by the arrow in the figure. Please do NOT press on the LCD panel while setting up the tilt angle. - Page 9 Remove the system back cover. If the system back cover is fire-resistant, first locate the screw as indicated in the figure, and then remove it. Screw for Fire-Resistant System Back Cover Hold down the release lever at the bottom of the system back cover and then pulling the cover outwards.
- Page 10 Neatly arrange the cables. Locate the cable holder inside the base as shown in the figure. Push down the lever to release if from the hook, pass the cable through cable holder, and then press down the lever again to lock it onto the hook. Cable holder Make sure the cord can be held into place and passed through the cable exit after...
- Page 11 RT-6xxxQ-G2 Installing Power Adapter and Cables for There are two thumbscrews on the VESA mount bracket. Loosen the two thumbscrews. Open the VESA mount bracket, and make the bracket separate from the two metal sticks.
- Page 12 Connect the connector of the power adapter to the DC-IN power jack. If necessary, properly insert other cables into the correct port. Close the VESA mount bracket, and then fasten the two thumbscrews. Cable connectors like the connector of LAN cable have to be gently inserted until a click sound is given.
- Page 13 Installing Side Mount Upgrade Kits Located at left side on the back of your system unit, side mount compartment is mainly used for installation of side-mounted equipment, such as magnetic stripe reader. For detailed installation instructions, please refer to the user manual specific to the device which you intend to mount onto the terminal.
- Page 14 To remove the stand cover from the base, please slide it in the horizontal direction shown by the arrow. Align the two screw bolts at the bottom of PoweredUSB or USB hub with rail slots in the base. Push PoweredUSB or USB hub in the direction shown by the arrow to lock it into place.
- Page 15 Install power adaptor extension cable, USB cable, and power adaptor for PoweredUSB hub. Insert one end of the provided power adaptor extension cable to DC Input port of PoweredUSB hub and another end to DC-in power jack of the terminal. Insert mini-USB connector of the USB cable to PoweredUSB hub and another end to USB3.0 port of the terminal.
-
Page 16: Status Led Indicator
For the fire-resistant system back cover, please insert another screw into the screw hole indicated in the figure, and secure it. Screw for Fire-Resistant System Back Cover Status LED Indicator LED status indicator, which is located at the bottom edge of the LCD panel, is mainly responsible for notifying users of the current system status by emitting various LED signals. -
Page 17: Specifications
Please contact with your dealers about the issues of operating system installation. Driver Download If your POS terminal is shipped without OS pre-installed, please download the relevant driver that you need from the Posiflex website (https://download.posiflex.com/en-global/Download/index/driver/pos- terminal/RT-6015-G2). Performing System Recovery... - Page 18 Extension Slot With base stand No base, intended for wall Mechanical mount/pole mount RT-6015-G2: 368 x 325 x 207 Dimension (W x V x D in mm) RT-6015Q-G2: 368 x 292 x 46.6 RT-6016-G2: 402 x 297 x 207 RT-6016Q-G2: 402 x 251 x 41.2 Operating：...
-
Page 19: Outline Dimension
(installed in base stand, NOT for RT-6xxxQ-G2) USB port replicator ( USB2.0 x 4, installed in base RT-560 stand, NOT for RT-6xxxQ-G2) UPS battery stand (NOT for RT-6xxxQ-G2) RB-5000 Outline Dimension RT-6015-G2 RT-6016-G2... - Page 20 RT-6015Q-G2 RT-6016Q-G2...
- Page 21 ※ The product information and specifications are subject to change without prior notice. To get the detailed information on the RT-6xxx-G2/6xxxQ-G2, please check this model from Posiflex Global Website.
