RT-1016A-G2
Fanless Touch POS Terminal
User Manual
Package Contents
RT-1016A-G2 15.6" fanless touch terminal (x 1)
Power adapter (x 1)
Power cord (x 1)
User manual (x 1)
FCC NOTES
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
CE CLASS A WARNING
This equipment is compliant with Class A of CISPR 32. In a residential environment this
equipment may cause radio interference.
AVERTISSEMENT CE CLASSE A
Cet équipement est conforme à la classe A de CISPR 32. Dans un environnement résidentiel,
cet équipement peut provoquer des interférences radio.
WARRANTY LIMITS
Warranty will terminate automatically when the machine is opened by any person other than
the authorized technicians. The user should consult his/her dealer for the problem happening.
Warranty voids if the user does not follow the instructions in application of this merchandise.
The manufacturer is by no means responsible for any damage or hazard caused by improper
application.
LIMITES DE GARANTIE
La garantie prend fin automatiquement lorsque la machine est ouverte par une personne autre
que les techniciens autorisés. L'utilisateur doit consulter son revendeur pour le problème qui
se produit. La garantie s'annule si l'utilisateur ne suit pas les instructions d'application de
cette marchandise. Le fabricant n'est en aucun cas responsable de tout dommage ou danger
causé par une mauvaise application.
16950908010 Ver. A0
http://www.posiflex.com
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the RT-1016A-G2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for POSIFLEX RT-1016A-G2

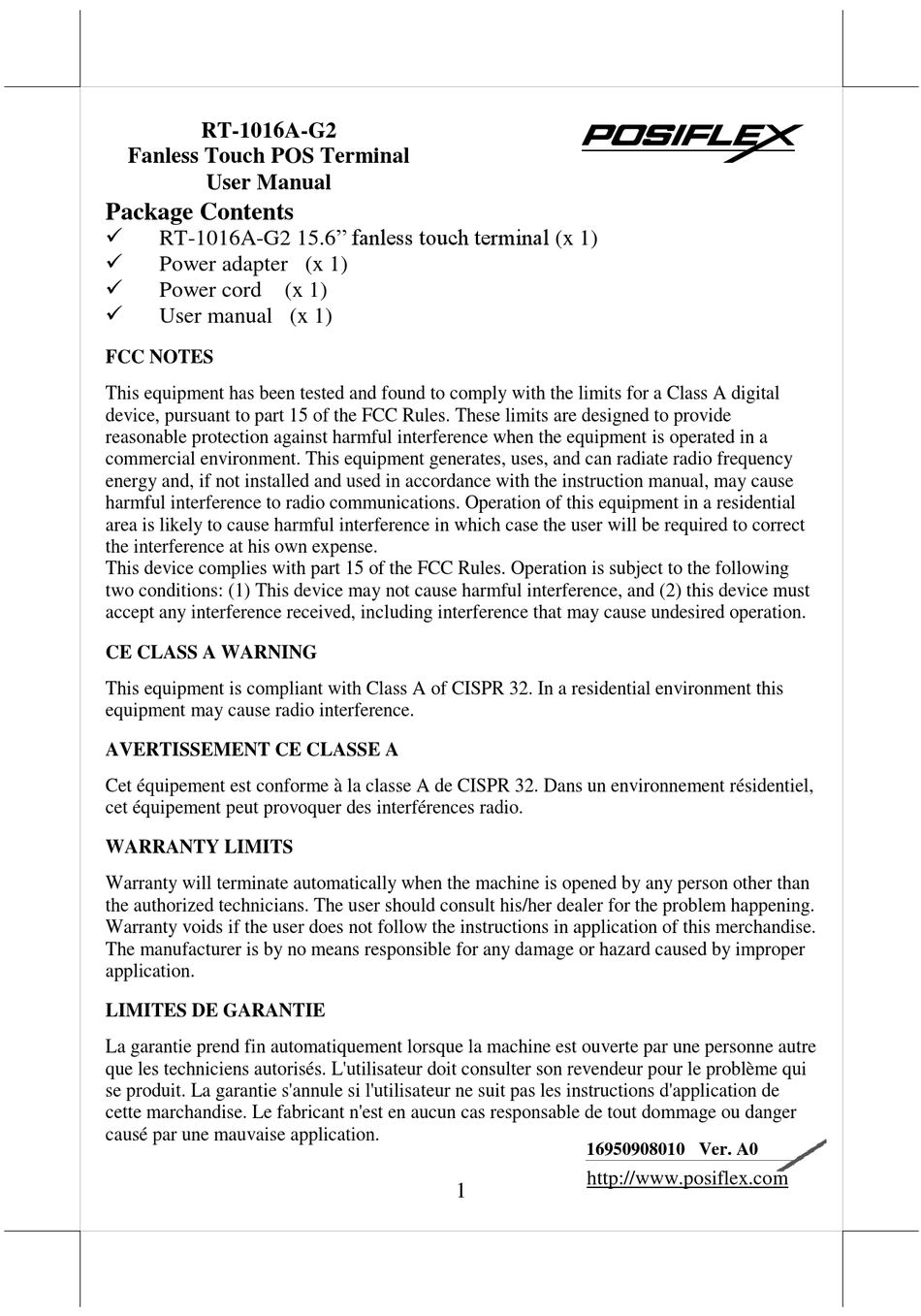

  • Page 1 RT-1016A-G2 Fanless Touch POS Terminal User Manual Package Contents  RT-1016A-G2 15.6” fanless touch terminal (x 1)  Power adapter (x 1)  Power cord (x 1)  User manual (x 1) FCC NOTES This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
