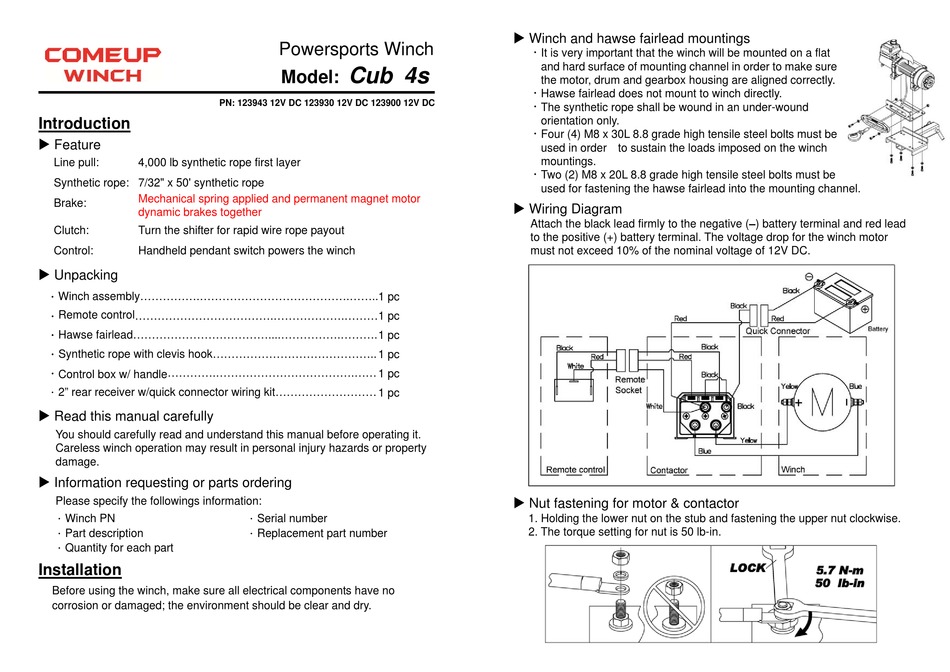

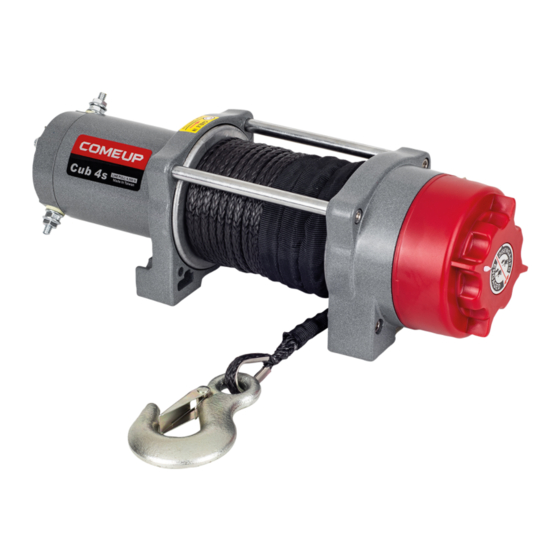

Comeup Cub 4s Manual

Introduction
 Feature
Line pull: 4,000 lb synthetic rope first layer
Synthetic rope: 7/32" x 50' synthetic rope
Mechanical spring applied and permanent magnet motor
Brake:
dynamic brakes together
Clutch: Turn the shifter for rapid wire rope payout
Control: Handheld pendant switch powers the winch
 Unpacking
．Winch assembly................................................................ 1 pc
． Remote control .................................................................1 pc
．Hawse fairlead.................................................................. 1 pc
．Synthetic rope with clevis hook............................................ 1 pc
． Control box w/ handle ........................................................ 1 pc
．2" rear receiver w/quick connector wiring kit........................... 1 pc
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
 Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Part description
．Quantity for each part
Installation
Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
Powersports Winch
Cub 4s
Model:
PN: 123943 12V DC 123930 12V DC 123900 12V DC
．Serial number
．Replacement part number
 Winch and hawse fairlead mountings
． It is very important that the winch will be mounted on a flat
and hard surface of mounting channel in order to make sure
the motor, drum and gearbox housing are aligned correctly.
． Hawse fairlead does not mount to winch directly.
． The synthetic rope shall be wound in an under-wound
orientation only.
． Four (4) M8 x 30L 8.8 grade high tensile steel bolts must be
used in order to sustain the loads imposed on the winch
mountings.
． Two (2) M8 x 20L 8.8 grade high tensile steel bolts must be
used for fastening the hawse fairlead into the mounting channel.
 Wiring Diagram
Attach the black lead firmly to the negative (–) battery terminal and red lead
to the positive (+) battery terminal. The voltage drop for the winch motor
must not exceed 10% of the nominal voltage of 12V DC.
 Nut fastening for motor & contactor
1. Holding the lower nut on the stub and fastening the upper nut clockwise.
2. The torque setting for nut is 50 lb-in.
