Introduction
Feature
Lifting capacity:
Lifting height:
Lifting speed:
Brake:
Limit protection:
Control:
Unpacking
．Winch assembly
．Wire rope 4 mm x 24 m
．Wight hook CHW-0032
．Power lead 1.5 mm
．Pendant switch CPB-313 w/cord 1.25mm
Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Part description
．Quantity for each part
80 kg wire rope top layer
23 m
18 – 30 m/min
Electromagnetic and mechanical ratchet
Lifting and lowering limiters
Pendant switch powers the winch
2
x 3C x 5 m and plug
Model:
2
x 6C x 10m
．Serial number
．Replacement part number

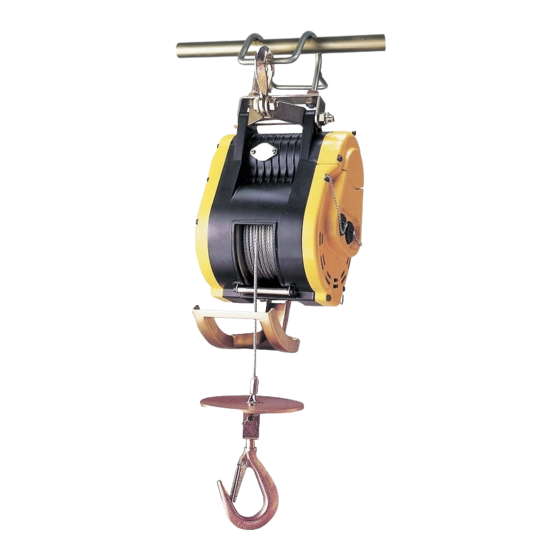

Baby Winch
CWS-80
PN: 422390 220V
422386 220V
422915 230V
1pc
1pc
1pc
1pc
1pc
