Introduction
Feature
Line pull:
Wire rope:
Brake:
Clutch:
Control:
Unpacking
．Winch assembly.............................................................. 1 pc
．Handlebar rocker switch kit ............................................... 1 pc
．Hawse fairlead ................................................................ 1 pc
．Synthetic rope w/hook ...................................................... 1 pc
． Contactor pack ................................................................ 1 pc
Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Part description
．Quantity for each part
Installation
Before using the winch, make sure all electrical
components have no corrosion or damaged; the
environment should be clear and dry.
907 kg / 2,000 lb wire rope first layer
4 mm x 15.2 m (5/32" x 50') synthetic rope SK-75
Mechanical and dynamic brakes for 100% braking
Turn the shifter for rapid wire rope payout
Handlebar rocker switch to power the winch

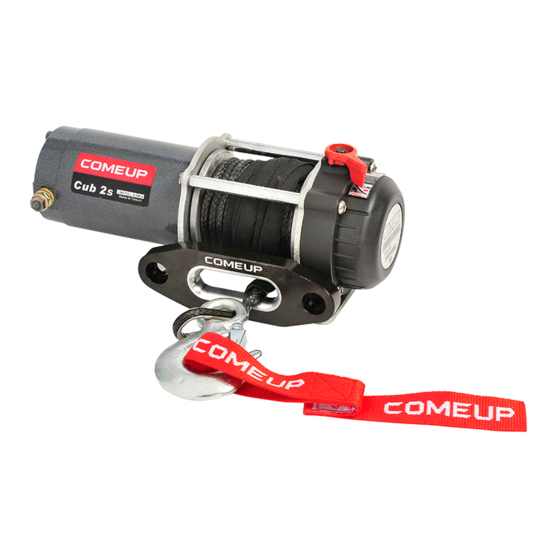

Powersports Winch
Model:
．Serial number
．Replacement part number
Cub 2s
PN:122112 12V DC
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Comeup Powersports Winch Cub 2s
Summary of Contents for Comeup Powersports Winch Cub 2s
- Page 1 Powersports Winch Cub 2s Model: PN:122112 12V DC Introduction Feature Line pull: 907 kg / 2,000 lb wire rope first layer Wire rope: 4 mm x 15.2 m (5/32" x 50') synthetic rope SK-75 Brake: Mechanical and dynamic brakes for 100% braking Clutch: Turn the shifter for rapid wire rope payout Control:...
- Page 2 Wire rope replacement ． It is very important that the winch will be mounted on a flat and hard surface of base plate in order to make sure the motor, drum and gearbox housing are aligned correctly. ． Hawse fairlead does not mount to winch directly. ．...
- Page 3 Warning ． The winch is not intended to be used in any manner for the movement or lifting of personnel. ． The pulling capacity shown is based on the first layer of rope on the drum. ． The rope winding on the drum shall remain 5 wraps from the drum. Handlebar Rocker Switch Mounting Handlebar mounted rocker switch can be operated without removing your hand from the grip.
- Page 4 Winch Assembly...
