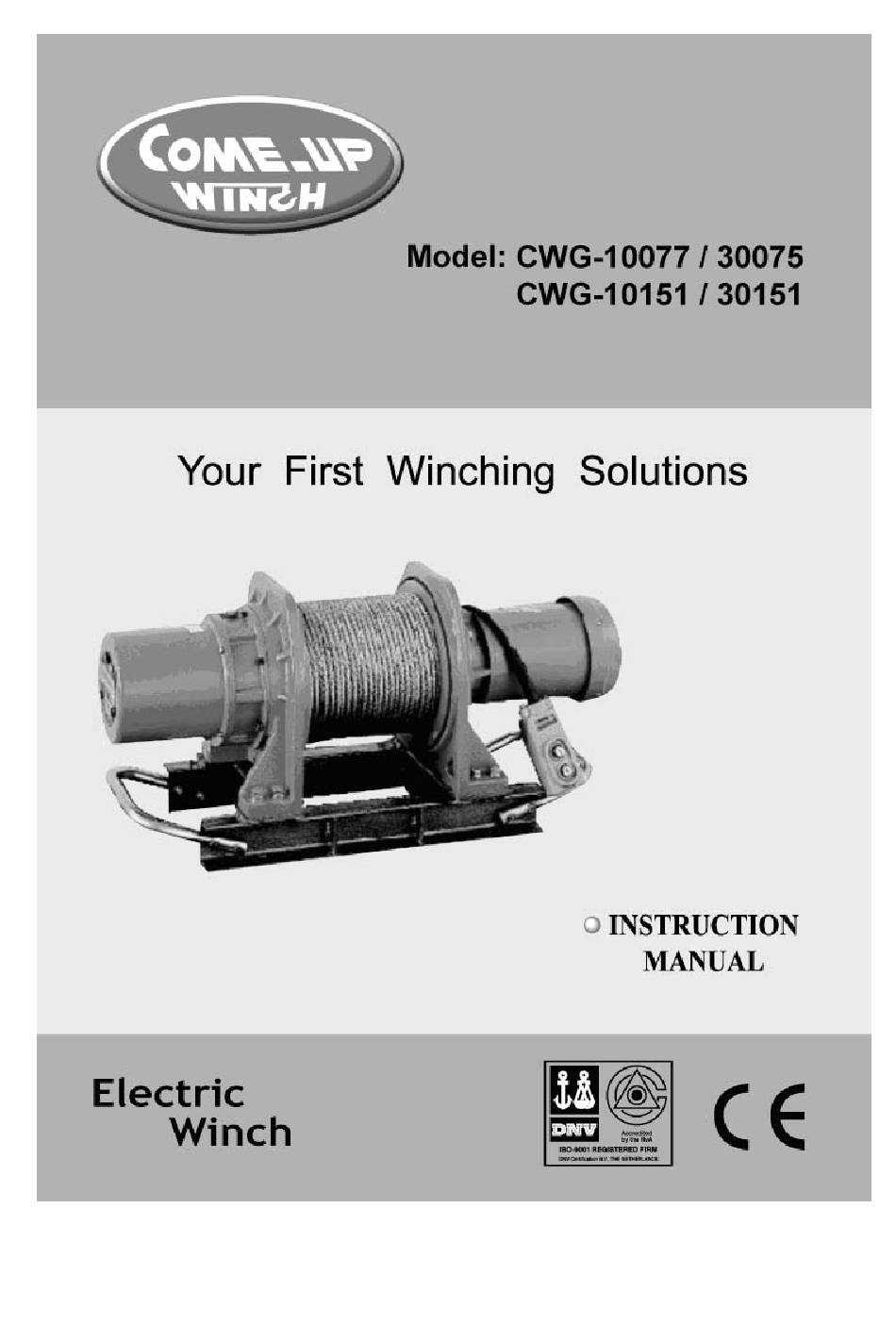

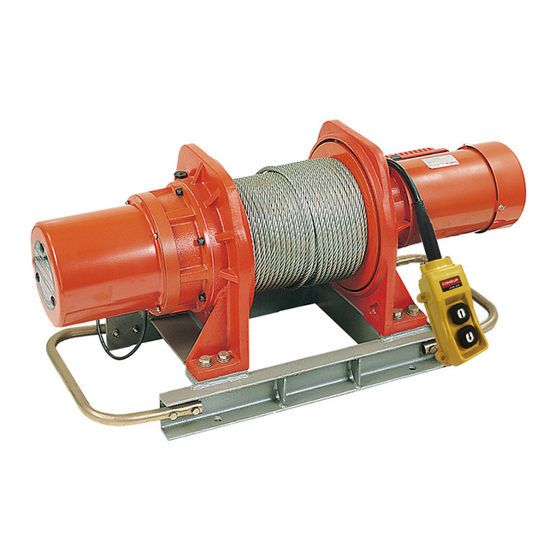

Comeup CWG-10077 Instruction Manual
Electric winch
Hide thumbs
Also See for CWG-10077:
- Instruction manual (25 pages) ,
- Installation (2 pages) ,
- Quick start manual (2 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Comeup CWG-10077
Summary of Contents for Comeup CWG-10077
-
Page 2: General Safety Precautions
Electric Winch Thank you for purchasing a Winch. This manual covers operation and maintenance of the winch. All information in this publication is based on the latest production information available at the time of printing. General Safety Precautions Winch is designed to give safe and dependable service if operated according to the instructions. -
Page 3: Environment Precautions
Environment Precautions DANGER ●The following environmental conditions may result in the possible causes of winch trouble. ●Low temperature ●In a organic below -10℃ ,high chemistry or temperature explosive powder above 40℃ or condition humidity above 90% conditions ※ Cause malfunction of spare parts ※... -
Page 4: Standard Accessories
I. Specification & Standard Accessories 1-1. Specification Load Rated Drum Size(mm) Speed(M/min) (kg) Gear Motor Power Percentage Model Empty Full Ratio Kw x p Source Duty Cycle Drum Drum Width 50Hz 60Hz 50Hz 60Hz Diameter Diameter 10077 41:1 12 ~ 18 14 ~ 20 1.5 x 4 1 Phase... -
Page 5: Performance Data
II. Performance Data 2-1. CWG-10077/10151 Model CWG-10077 CWG-10151 Motor kw x p 1.5 x 4 1.5 x 4 Wire Size Breaking Rope 2,010 3,750 Ratged Load 50Hz (kg) 60Hz 50Hz 12.0 12.0 Speed (m/min) Layer 60Hz 14.0 14.0 Rope-Winding 12.0... - Page 6 2-2. CWG-10151/30075/30151 Model CWG-30075/300075B CWG-10151 Motor kw x p 1.0 x 4 1.5 x 4 Wire Size Breaking Rope 2,010 3,750 Ratged Load 50Hz (kg) 60Hz 50Hz 10.0 12.0 Speed (m/min) Layer 60Hz 12.0 14.0 Rope-Winding 12.0 Cumulating Sum (m) 50Hz Ratged Load (kg) 60Hz...
- Page 7 Ⅲ Ⅲ Ⅲ Ⅲ . Instruction For Installation 3-1. Load Rated Load and speed vary according to how much wire rope is on the drum. The first layer of rope on the drum delivers the slowest speed and the maximum load.A full drum delivers the maximum speed and the minimum load.
-
Page 8: Lubricant Specifications
Fleet angle of 1.5∘is the equivalents of approximately 19 cm of lead for each centimeter of overall drum width. Model Drum Width (mm) Fleet Angle Correct Distance (m) CWG-10077 CWG-10151 1.5° CWG-30075/30075B CWG-30151 3-5. Lubricant Specifications All moving parts in the winch are permanently lubricated at the time of assembly. - Page 9 Ⅳ Ⅳ Ⅳ Ⅳ . Handing Precautions...
- Page 11 Ⅴ Ⅴ Ⅴ Ⅴ . Maintenance and Inspection 5-1. Checking Reference 1 Classification of checks Checking Item Checking Method Checking Reference Periodical Daily Three month month year ◎ Marking Lable and the like Visual Existence of label Winding-in Fleet angle ◎...
- Page 12 5-2. Checking Reference 2 Classification of Checks Periodical Checking Daily Checking Item Checking Method Three Reference month month year Breaking of base Less than ◎ Visual wire Decreasing of 7% of normal ◎ Visual diameter diameter max Kink phenomena To be free ◎...
-
Page 13: Ⅵ Ⅵ Ⅵ Ⅵ . Trouble Shooting
Exchange any two wires of motor winch alternately 6-2. Standard value for capacitor, brake coil and bridre rectifier Model Starting cap. Running cap. Brake coil Bridge rectifier 63Ω DC110V CWG-10077 40MFD 125VAC 50MFD 250VAC CBR-061 CWG-10151 125MFD 250VAC 15MFD 440VAC 434Ω DC220V CWG-30075/30075B CBR-061 6-3. - Page 14 Ⅶ Ⅶ Ⅶ Ⅶ . Wiring Diagram...
- Page 17 Ⅷ Ⅷ Ⅷ Ⅷ . Replacement parts List ►CWG-10077...
- Page 18 ►CWG-10151/30151...
- Page 19 ►CWG-30075...
- Page 20 CWG01-2008-02-2000...
