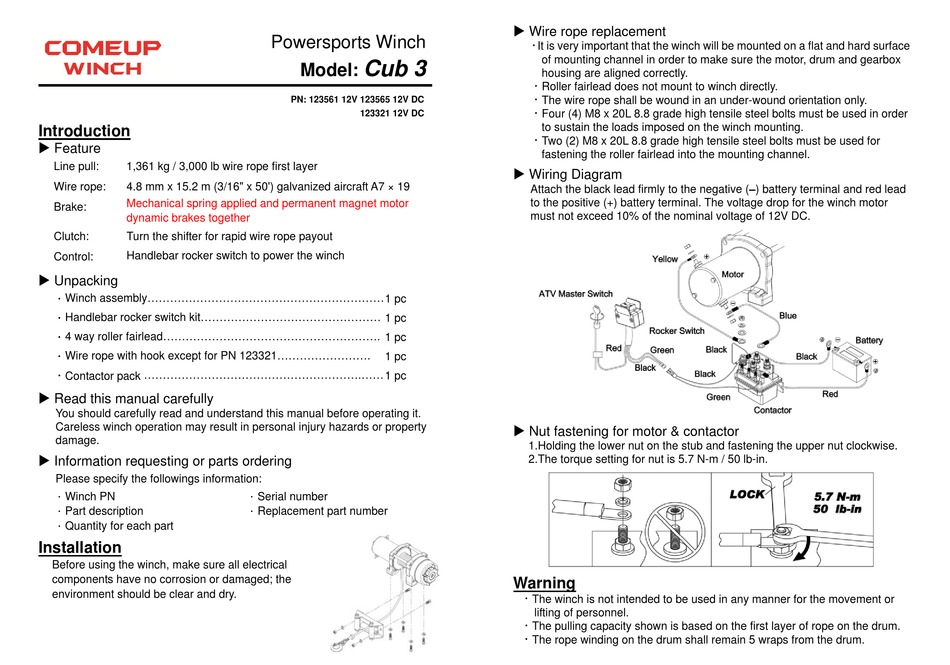

Comeup 123565 Quick Start Manual

Introduction

 Feature
Line pull: 1,361 kg / 3,000 lb wire rope first layer
Wire rope: 4.8 mm x 15.2 m (3/16" x 50') galvanized aircraft A7 × 19
Mechanical spring applied and permanent magnet motor
Brake:
dynamic brakes together
Clutch: Turn the shifter for rapid wire rope payout
Handlebar rocker switch to power the winch
Control:
 Unpacking
．Winch assembly............................................................... 1 pc
．Handlebar rocker switch kit................................................ 1 pc
．4 way roller fairlead.......................................................... 1 pc
．Wire rope with hook except for PN 123321.........................
． Contactor pack ................................................................ 1 pc
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
 Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Part description
．Quantity for each part

Installation

Before using the winch, make sure all electrical
components have no corrosion or damaged; the
environment should be clear and dry.
Powersports Winch
Cub 3
Model:
PN: 123561 12V 123565 12V DC
123321 12V DC
1 pc
．Serial number
．Replacement part number
 Wire rope replacement
． It is very important that the winch will be mounted on a flat and hard surface
of mounting channel in order to make sure the motor, drum and gearbox
housing are aligned correctly.
． Roller fairlead does not mount to winch directly.
． The wire rope shall be wound in an under-wound orientation only.
． Four (4) M8 x 20L 8.8 grade high tensile steel bolts must be used in order
to sustain the loads imposed on the winch mounting.
． Two (2) M8 x 20L 8.8 grade high tensile steel bolts must be used for
fastening the roller fairlead into the mounting channel.
 Wiring Diagram
Attach the black lead firmly to the negative (–) battery terminal and red lead
to the positive (+) battery terminal. The voltage drop for the winch motor
must not exceed 10% of the nominal voltage of 12V DC.
 Nut fastening for motor & contactor
1.Holding the lower nut on the stub and fastening the upper nut clockwise.
2.The torque setting for nut is 5.7 N-m / 50 lb-in.

Warning

． The winch is not intended to be used in any manner for the movement or
lifting of personnel.
． The pulling capacity shown is based on the first layer of rope on the drum.
． The rope winding on the drum shall remain 5 wraps from the drum.
