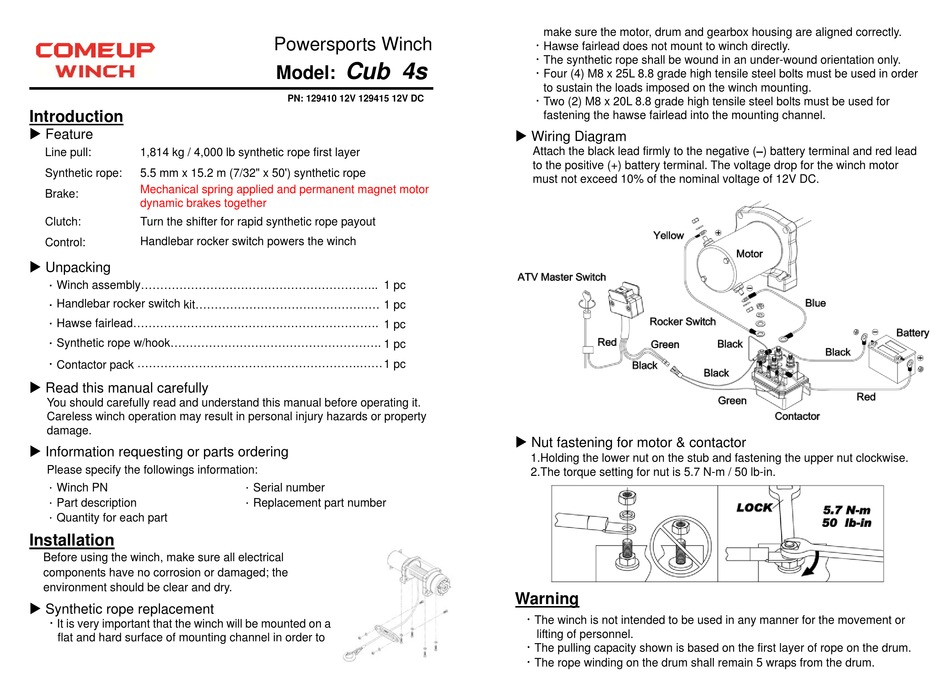

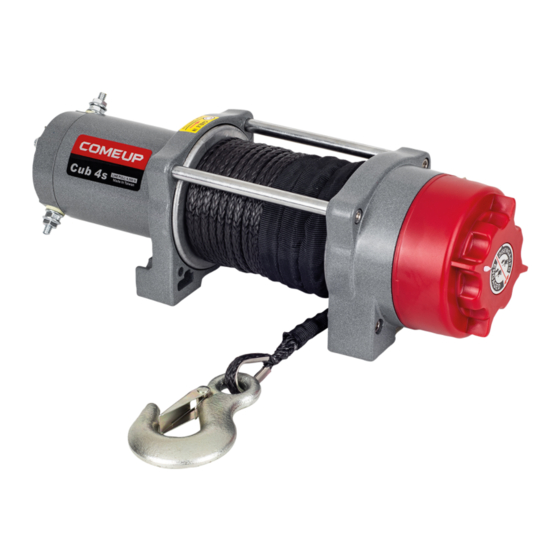

Comeup Cub 4s Quick Start Manual

Introduction

 Feature
Line pull: 1,814 kg / 4,000 lb synthetic rope first layer
Synthetic rope: 5.5 mm x 15.2 m (7/32" x 50') synthetic rope
Mechanical spring applied and permanent magnet motor
Brake:
dynamic brakes together
Clutch: Turn the shifter for rapid synthetic rope payout
Handlebar rocker switch powers the winch
Control:
 Unpacking
．Winch assembly.............................................................. 1 pc
． Handlebar rocker switch kit................................................ 1 pc
．Hawse fairlead................................................................ 1 pc
．Synthetic rope w/hook....................................................... 1 pc
． Contactor pack ................................................................ 1 pc
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
 Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Part description
．Quantity for each part

Installation

Before using the winch, make sure all electrical
components have no corrosion or damaged; the
environment should be clear and dry.
 Synthetic rope replacement
． It is very important that the winch will be mounted on a
flat and hard surface of mounting channel in order to
Powersports Winch
Cub 4s
Model:
PN: 129410 12V 129415 12V DC
．Serial number
．Replacement part number
make sure the motor, drum and gearbox housing are aligned correctly.
． Hawse fairlead does not mount to winch directly.
． The synthetic rope shall be wound in an under-wound orientation only.
． Four (4) M8 x 25L 8.8 grade high tensile steel bolts must be used in order
to sustain the loads imposed on the winch mounting.
． Two (2) M8 x 20L 8.8 grade high tensile steel bolts must be used for
fastening the hawse fairlead into the mounting channel.
 Wiring Diagram
Attach the black lead firmly to the negative (–) battery terminal and red lead
to the positive (+) battery terminal. The voltage drop for the winch motor
must not exceed 10% of the nominal voltage of 12V DC.
 Nut fastening for motor & contactor
1.Holding the lower nut on the stub and fastening the upper nut clockwise.
2.The torque setting for nut is 5.7 N-m / 50 lb-in.

Warning

． The winch is not intended to be used in any manner for the movement or
lifting of personnel.
． The pulling capacity shown is based on the first layer of rope on the drum.
． The rope winding on the drum shall remain 5 wraps from the drum.
