Summary of Contents for Comeup CWL-80
-
Page 2: General Safety Precautions

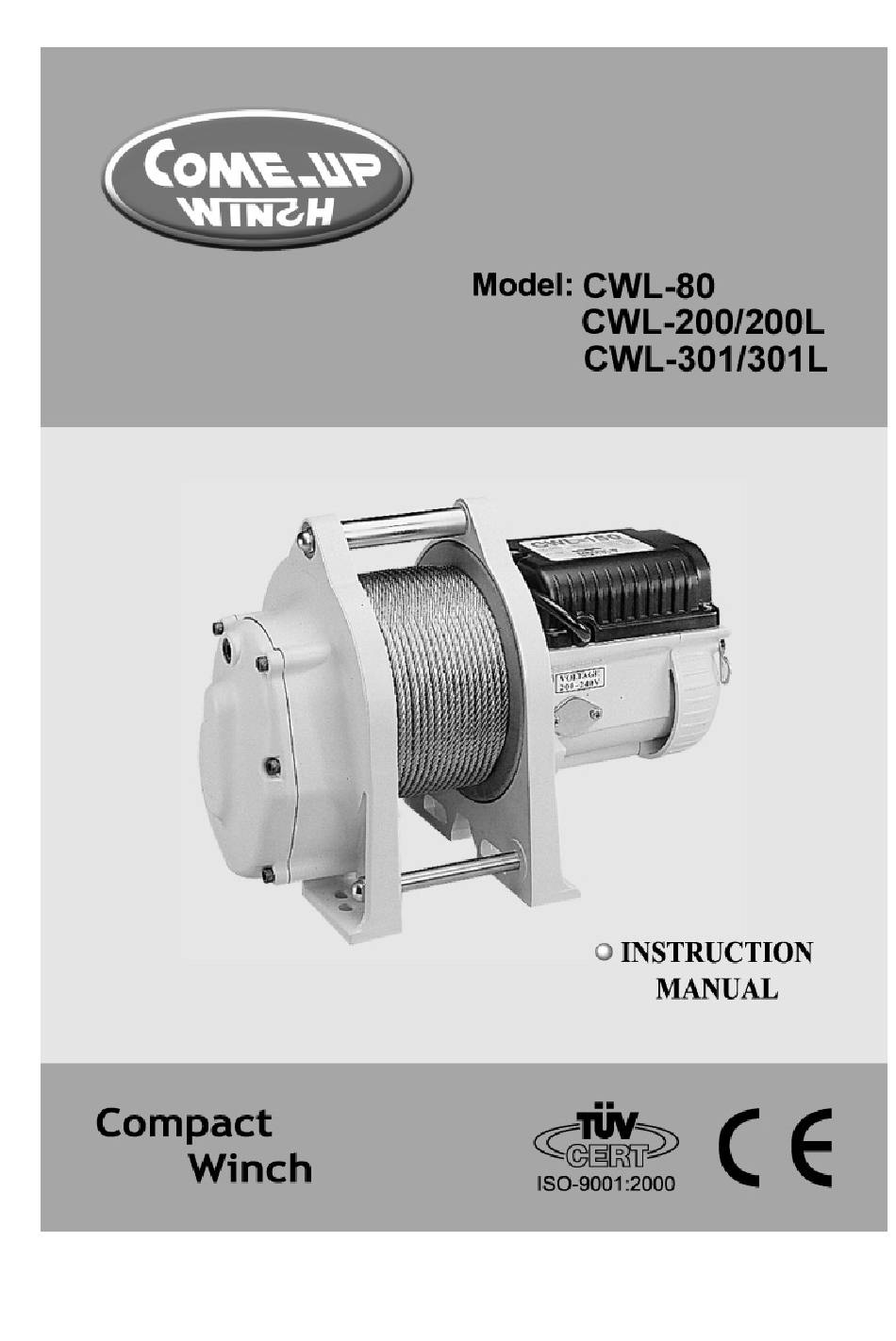

Compact Winch Thank you for purchasing a Winch. This manual covers operation and maintenance of the winch. All information in this publication is based on the latest production information available at the time of printing. General Safety Precautions Winch is designed to give safe and dependable service if operated according to the instructions. - Page 3 I. Performance Data Specification MODEL CWL-80 CWL-200L CWL-301 CWL-301L CWL-200 Lifting load (kg) Speed (M / min.) top layer Power source 50/60 Hz single phase 110V or 220 / 240V type series wound Motor 110V 0.3 x 6 1.2 x 12...
-
Page 5: Methods Of Operation
II. Methods of Operation Plug Insertion Insert the plug of switch cable into the receptacle of the winch. Tighten it by turning the locking ring clockwisely. Be sure to fix the switch cable by snap hook. Do not allow the cable to be caughted by wire rope and drum. - Page 6 The initial lubricant should be changed after the first 10 hours of operation. Subsequent changes of 100 cc for CWL-80 and 300 cc for others should be scheduled every 250 hours of operation or annually. Cables Recommendations...
- Page 7 III. Handling Precautions And Calculations Handling Precautions The operator of winch in some cases is required for qualifications according to applicable laws and ordinances. Prior to starting of use, carry out the daily checking without fail, and use after confirming the safety of function. Don't use exceeding the lead rated.
- Page 8 IV. Checking Reference Checking Reference1 Classification of checks Checking Item Checking Method Checking Reference Periodical Daily Three month month year ◎ Marking Lable and the like Visual Existence of label Winding-in Fleet angle ◎ direction of wire Visual , measuring θ=within 1.5 degree Installation rope...
- Page 9 Checking Reference Classification of Checks Periodical Checking Daily Checking Item Checking Method Three Reference month month year Breaking of base Less than ◎ Visual wire Decreasing of 7% of normal ◎ Visual diameter diameter max Kink phenomena To be free ◎...
-
Page 10: Troubleshooting
V. Trouble Shooting Before operation, open terminal box of motor to ascertain the corrective wirings. Checking winch for smooth operation by pressing up and down button of push button switch. When winch fails to start after several attempts, or and defective operation to be happened, check followings. -
Page 11: Replacement Parts List
VI. Replacement Parts List CWL-80... - Page 12 Ⅶ Ⅶ Ⅶ Ⅶ . Replacement Parts List CWL-200...
- Page 13 CWL-200L...
- Page 14 Ⅷ Ⅷ Ⅷ Ⅷ . Replacement Parts List CWL-301/301L...
