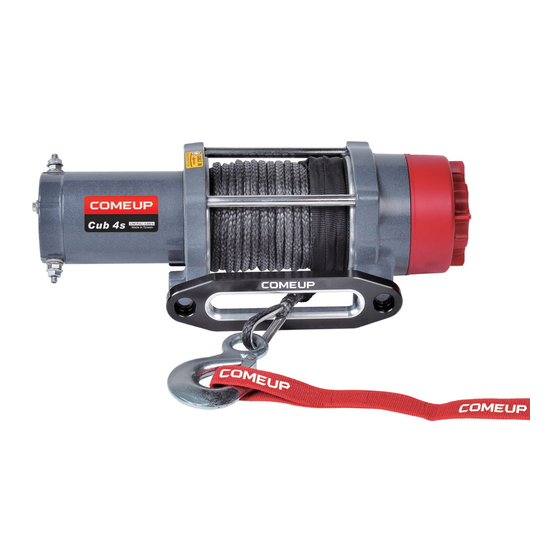

Summary of Contents for Comeup Powersports Cub 4s carry on
-
Page 2: Warranty
Comeup Industries Inc. (COMEUP) warrants to the original purchaser that the mechanical components of the COMEUP ATV/UTV Winch will be free of defects in material and workmanship for the lifetime of the winch and the electrical components will be free of defects in material and workmanship for a period of one (1) year from the original date of purchase. - Page 3 Powersports Winch Thank you for purchasing a Winch. This manual covers operation and maintenance of the winch. All information in this publication is based on the latest production information available at the time of printing. We reserve the right to make changes without notice because of continued product improvement.
-
Page 4: Safety Requirement
Safety Requirement WARNING: FAILURE TO READ AND FOLLOW THE SAFETY INSTRUCTIONS IN THIS OWNER’S MANUAL BEFORE INSTALLING OR USING YOUR ATV/UTV WINCH COULD RESULT IN DAMAGE TO YOUR WINCH AND SERIOUS OR FATAL INJURY!! General Rules Check all safety and environmental conditions prior to and during use. ！... -
Page 5: Installation
I I . Main Components III . Installation Complete Kit Installation To install the complete kit, you need to mount the winch, roller fairlead/hawse fairlead, contactor, rocker switch, remote socket (option) and remote control (option). Read and understand the following instruction to choose the proper mounting locations. -
Page 6: Battery Recommendations
Winch & Roller Fairlead/Hawse Fairlead Mounting 1. It is very important that the winch shall be mounted on a flat hard surface in order to make sure the motor, drum and gearbox housing are aligned correctly. (Cub 2s / 3s / 4s only) 2. -
Page 7: Wiring Diagram
Remote Socket Mounting (Option) 1. Determine the mounting location for the remote socket. 2. Drill three holes on a plate and install. Rocker Switch Mounting Handlebar mounted rocker switch can be operated without removing your hand from the grip. Wiring Diagram Yellow(6 AWG.) Winch ATV/UTV Master Switch... -
Page 8: Operation
IV . Operation Cable In and Out 1). To determine “Cable Out“, Press to the “Out” position 2). To determine “Cable In“, Press to the “In” position 3). To stop winching, release the rocker level Clutch Function The clutch allows rapid pay-out of the wire rope/synthetic rope for hooking onto a load or anchor points and is operated by a clutch shifter located on the end of the winch. - Page 9 V . Maintenance Wire/Synthetic Rope Replacement Before installing a new wire/synthetic rope, wrap the end of the wire/synthetic rope with tape to prevent fraying. Wind the wire/synthetic rope on the drum by pulling a force to keep the tension constant. Never use a wire/synthetic rope of a different size or material. 1).
- Page 10 Maintenance Schedule Carry out all inspections below on schedule. All inspections are performed by Daily, Monthly and Quarterly basis. Clean all connections because corrosion on electrical connections will reduce performance or may cause a short. Classification of check Checking Periodical Item Checking method reference...
-
Page 11: Troubleshooting
VI . Trouble Shooting When the winch fails to operate after several attempts, or if there is any fault operation while winching, check followings. Symptom Possible Cause Remedy Cut circuit or loosing Check battery lead Weak battery or insufficient power Recharge or replace battery Damaged over-load protector Replace over-load protector... - Page 12 COMEUP INDUSTRIES INC. No.139, Jieyukeng Rd., Ruifang Dist., New Taipei City 22453, Taiwan TEL:+886-2-24971788 FAX:+886-2-24971699 Email: info@comeup.com.tw PN 881407 Ver:07 http://www.comeupwinch.com Specifications subject to change without notice...
