Introduction
Feature
Line pull:
Synthetic rope:
Brake:
Clutch:
Control:
Unpacking
W inch assembly.............................................................. 1 pc
． ． ． ．
H andlebar rocker switch kit................................................ 1 pc
． ． ． ．
． ． ． ．
H awse fairlead................................................................ 1 pc
S ynthetic rope w/hook....................................................... 1 pc
． ． ． ．
C ontactor pack ................................................................ 1 pc
． ． ． ．
Read this manual carefully
Carefully read and understand this manual before operating the winch.
Careless winch operation may result in personal injury, danger to others
and or damage to property
Information requesting or parts ordering
Please specify the followings information:
W inch PN
．
P art description
．
Q uantity for each part
．
1,814 kg / 4,000 lb synthetic rope first layer
5.5 mm x 15.2 m synthetic rope
Mechanical and dynamic brake for 100% braking
Turn for free spool
Handlebar mounted rocker switch

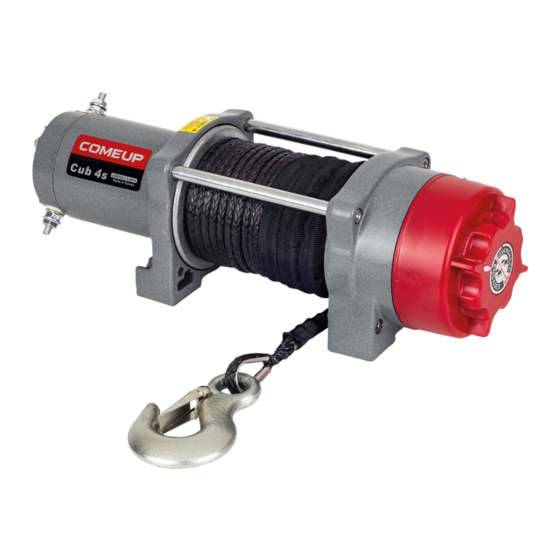

Powersports Winch
Model:
S erial number
．
R eplacement part number
．
Cub 4s
PN: 129410 12V DC
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Comeup Cub 4s
Summary of Contents for Comeup Cub 4s
- Page 1 Powersports Winch Cub 4s Model: PN: 129410 12V DC Introduction Feature Line pull: 1,814 kg / 4,000 lb synthetic rope first layer Synthetic rope: 5.5 mm x 15.2 m synthetic rope Brake: Mechanical and dynamic brake for 100% braking Clutch:...
- Page 2 Installation Before using the winch ensure all electrical components are in good condition and all connections are sound. Synthetic rope replacement ． ． ． ． I t is very important that the winch will be mounted on a flat and hard surface of mounting channel in order to make sure the motor, drum and gearbox housing are aligned correctly.
- Page 3 Nut fastening for motor & contactor 1.Holding he lower nut on the stud, tighten the upper nut clockwise. 2.The torque setting for nut is 5.7 N-m / 50 lb-in. Warning • The winch is not to be used for transporting or lifting of personnel. •...
- Page 4 Parts List Item No. Description Part No. Motor w/housing 881331 Motor couple kit 880988 Drum bushing 880990 Drum kit 881006 Tie bar kit 881007 Tie bar kit 881008 Gearbox support rack 880994 stage carrier 880995 stage carrier 880996 stage carrier 881009 ring gear kit 880998...
- Page 5 Winch Assembly...
