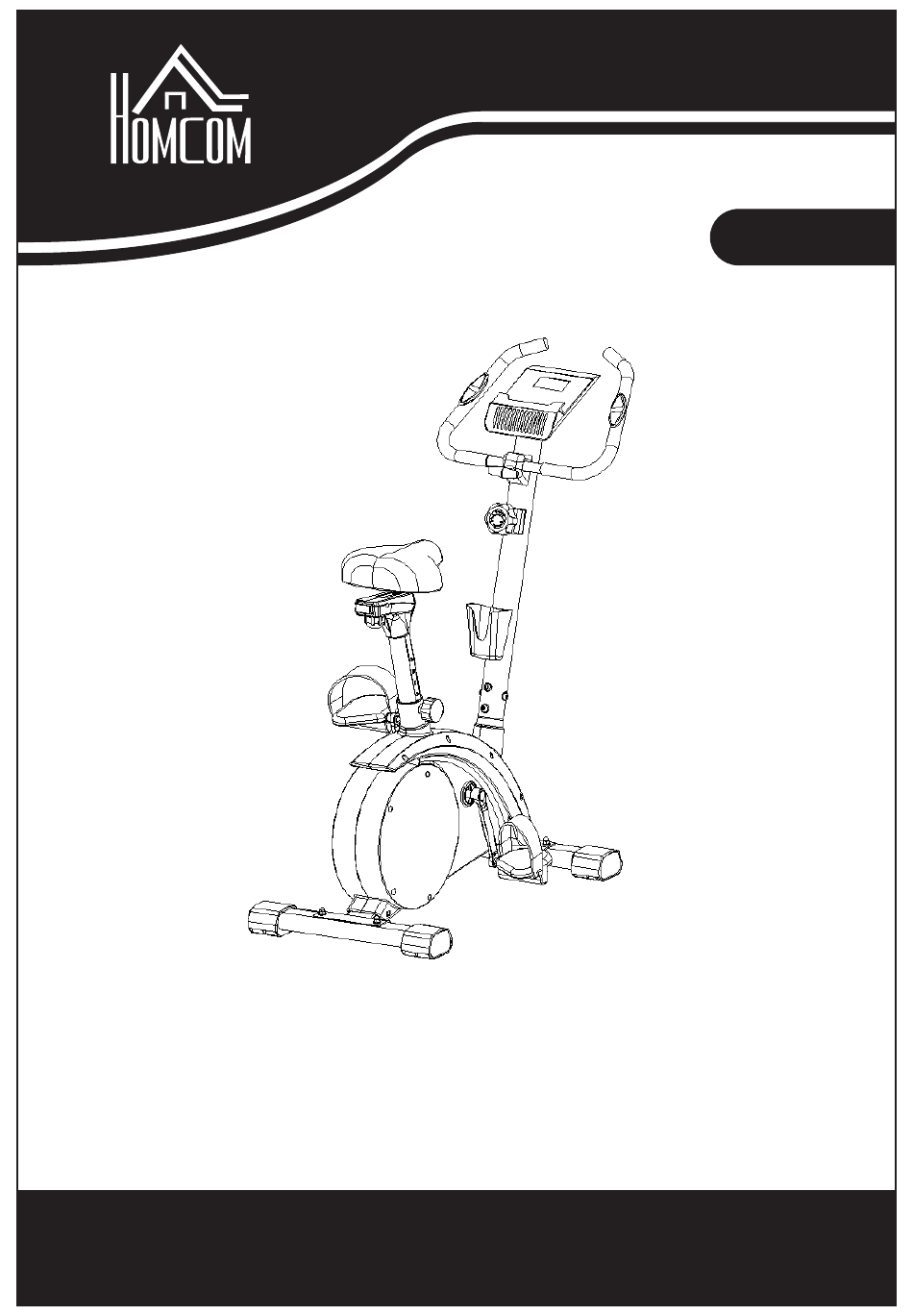

- Page 1 INada081V02 UK A90-194 READ AND SAVE THIS INSTRUCTION FOR FUTURE USE ASSEMBLY INSTRUCTION...
- Page 2 Safety Precautions – Please Read the Instruction before Using! According to the installation instruction, use original parts to assemble this product properly. Before assembly, inspect whether packages are in good condition and whether spare parts are complete in accordance with transport precautions and the list of spare parts. Prior to exercise, make sure equipment fasteners are in locking state.
-
Page 3: Exploded View
EXPLODED VIEW... -
Page 4: Part List
PART LIST DESCRIPTION DESCRIPTION Main Frame Ø8 Flat Washer Front Stabilizer Spring washer M8*50 Bolt Sleeve Ø8 Flat Washer T knob M8 Cap Nut Bottle Screw Rear Stabilizer Water Bottle Crank R/L Monitor M16 Lock Knob Monitor screw Seat Support Tube L shape wrench Seat 13-15 wrench... - Page 5 ASSEMBLY INSTRUCTIONS easy steps to assemble then you’re ready to workout – it takes approx 30 mins to assemble. STEP 1 Fix the Front Stabilizer (2) to Main frame (1) using 2 X M8*50 Bolts (3), 2 X Ø8 Flat Washers (4) and 2 X M8 Cap Nuts (5) provided by 13-15 Wrench (25).
- Page 6 STEP 3 a. Before fixing the Handlebar Support Tube (11), please connect the tension and sensor cables as shown in the following illustrations: (1) Adjust the tension control to 8 levels, making sure the super tension cable (11-1) to bet the longest. (2) Connect the supper tension cable (11-1) and (1-1) as shown in the figure, and connect the other cable (1-2) and (11-2).
- Page 7 STEP 4 Put the Handlebar (13)into the handlebar holder then put the cover for handle(14) on the handlebar and Ø8 Flat Washer Sleeve tighten with (15), 1 X Spring Washers (16) and (17) by T knob (18). STEP 5 a. Unscrew four Screws (22) pre-fitted on the monitor (21). b.
- Page 8 Most Important After all above steps finished, the most important thing is to make sure all the bolts and parts are securely fixed before you are riding on the bike. COMPUTER OPERATION INSTRUCTIONS Scans all functions – TIME, SPEED, DISTANCE, TOTAL DIST, CALORIES, SCAN PULSE TIME...
-
Page 9: Maintenance
1. You will need 2AAA batteries (provided) to operate the Computer. To select the function you want, press the MODE button and then select the function of choice from the table above. To reset the Computer, hold down the MODE button for 5 seconds. The Computer will automatically turn off after 4 minutes when the bike is not in use. -
Page 10: Exercise Instructions
EXERCISE INSTRUCTIONS Using your EXERCISE CYCLE will provide you several benefits, it will improve your physical fitness, tone your muscle, and in conjunction with calorie controlled diet, it will help you lose weight. 1. The Warm Up Phase This stage helps the blood flow around the body and the muscles work properly. It will also reduce the risk of cramp and muscle injury. -
Page 11: Troubleshooting
TROUBLESHOOTING REF PROBLEM SOLUTION THE PEDALS ARE 1. ADD MORE RESISTANCE BY TURNING THE TENSION SPINNING OUT OF CONTROL TO THE RIGHT. CONTROL 2. START PEDALLING SLOWLY. 3. KEEP TURNING THE TENSION CONTROL TO THE RIGHT UNTIL YOU CAN FEEL RESISTANCE WHEN YOU PEDAL. THE BIKE IS UNSTABLE 1.
