Chapter 2 Using basic features

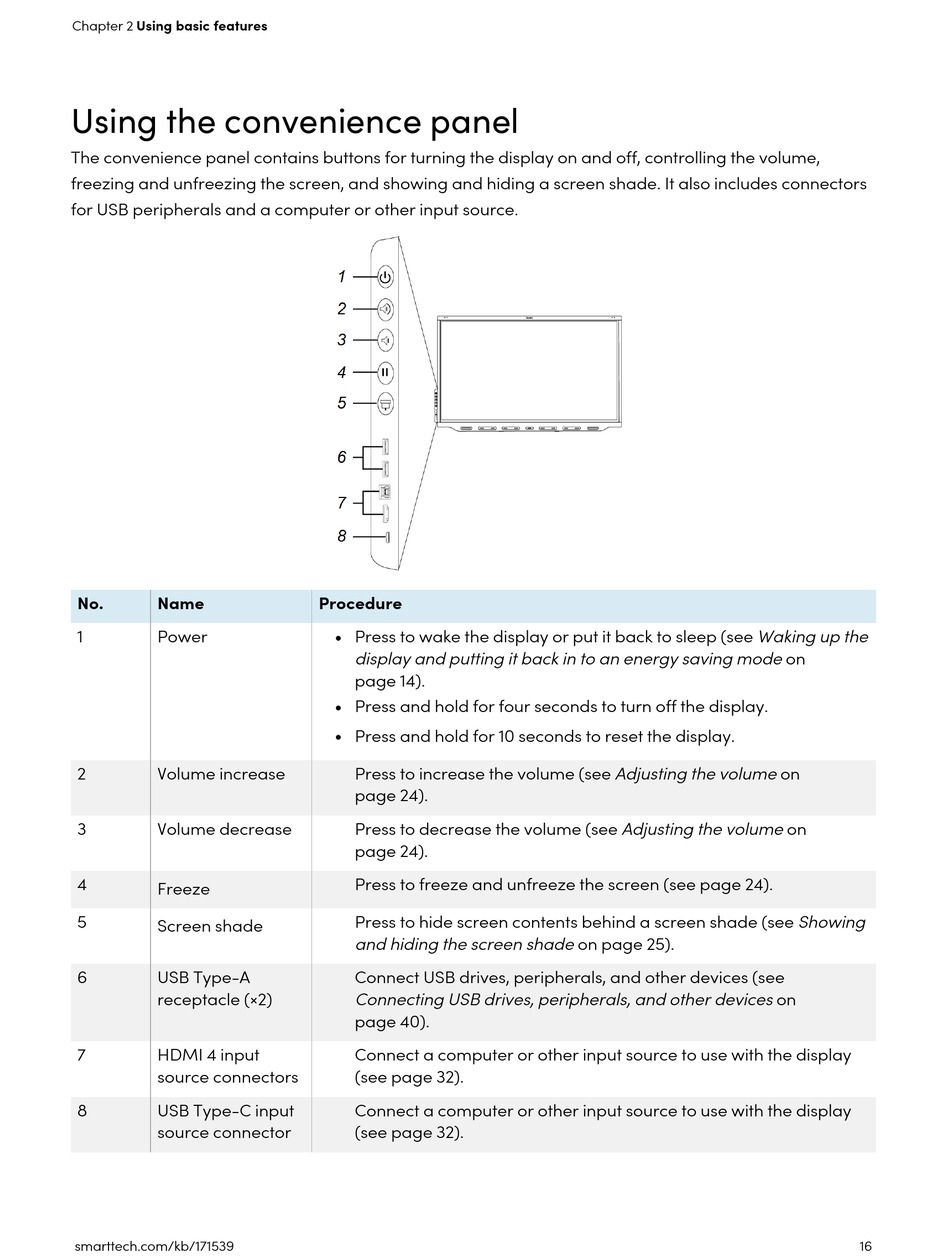

Using the convenience panel

The convenience panel contains buttons for turning the display on and off, controlling the volume,
freezing and unfreezing the screen, and showing and hiding a screen shade. It also includes connectors
for USB peripherals and a computer or other input source.
No. Name
1 Power
2 Volume increase
3 Volume decrease
4
Freeze
5
Screen shade
6 USB Type-A
receptacle (×2)
7 HDMI 4 input
source connectors
8 USB Type-C input
source connector
smarttech.com/kb/171539
Procedure
Press to wake the display or put it back to sleep (see Waking up the
l
display and putting it back in to an energy saving mode on
page 14).
Press and hold for four seconds to turn off the display.
l
Press and hold for 10 seconds to reset the display.
l
Press to increase the volume (see Adjusting the volume on
page 24).
Press to decrease the volume (see Adjusting the volume on
page 24).
Press to freeze and unfreeze the screen (see page 24).
Press to hide screen contents behind a screen shade (see Showing
and hiding the screen shade on page 25).
Connect USB drives, peripherals, and other devices (see
Connecting USB drives, peripherals, and other devices on
page 40).
Connect a computer or other input source to use with the display
(see page 32).
Connect a computer or other input source to use with the display
(see page 32).
