OSD NETWORKS OSD2258EP Operator's Manual page 61

→ T
M
ONITOR

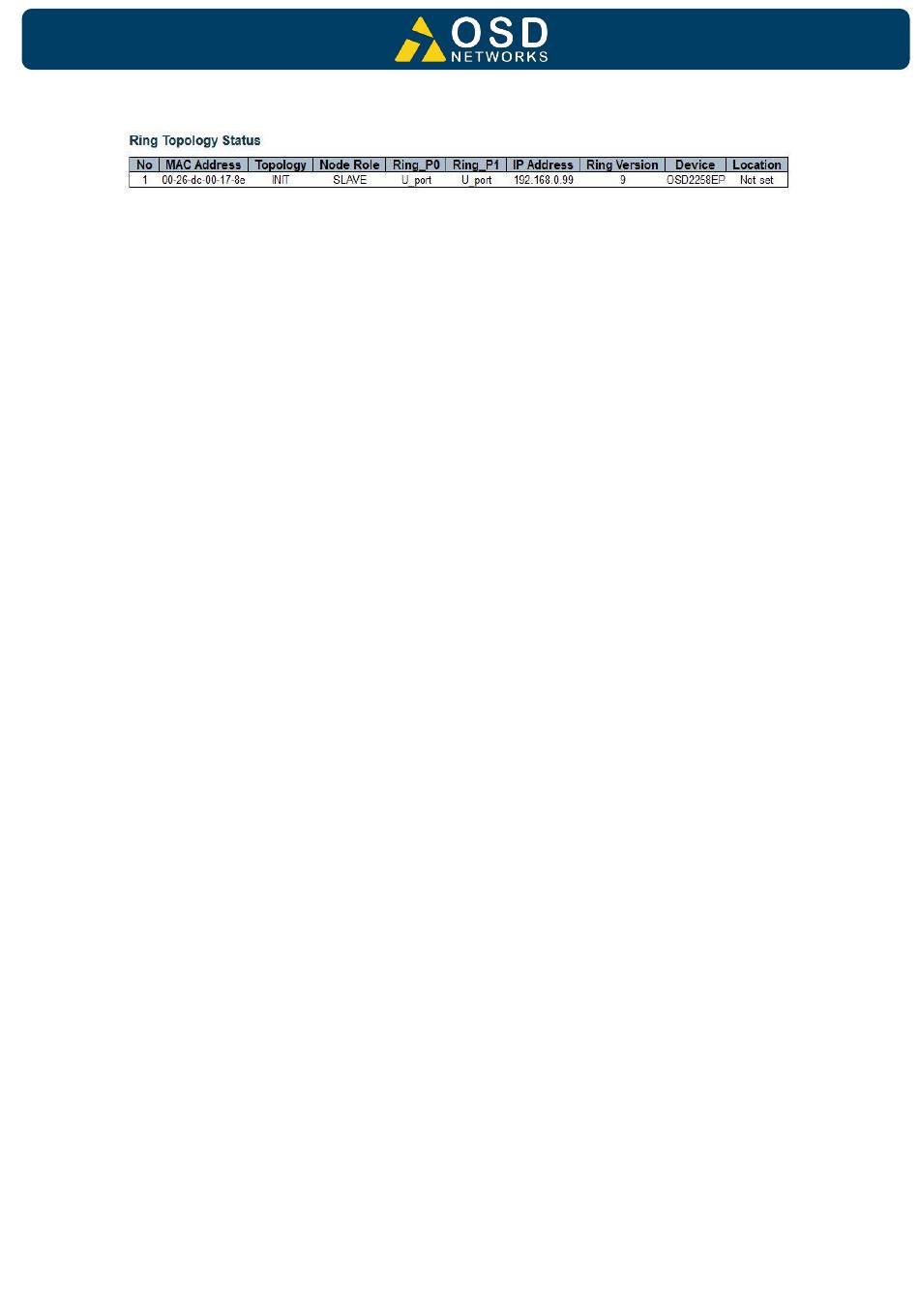

Shows the topology map of available devices in the connected ring/bus.
N
O
Unit number within the connected ring/bus
MAC A
DDRESS
Displays the MAC address number for each unit connected on the ring/bus
T
OPOLOGY
Indicates the topology type;
•
•
•
•
N R
ODE OLE
Indicates whether the unit is either the Master or Slave on the ring/bus. The
Master is determined by the lowest MAC address
R _P0
ING
Indicates the function of Port 9 and its relation to the ring/bus
•
•
•
•
R _P1
ING
Indicates the function of Port 10 and its relation to the ring/bus
•
•
•
•
IP A
DDRESS
Displays the IP address for each unit connected on the ring/bus
R V
ING ERSION
Indicates the ring module software version
D
EVICE
Indicates the OSD product within the ring
L
OCATION
The location of the device can be set and displayed in this window
PAGE 61
OPOLOGY
INIT: Waiting for ring protocol communication from neighbouring node
BUS: BUS mode when system discovers bus topology
RING: Ring mode when system discovers ring topology
UNKNOWN: Unknown state
M_Port: Master Port (Port facing the master)
S_Port: Slave Port (Port back to the master)
B_Port: Backup Port
U_Port: Unconnected Port
M_Port: Master Port (Port facing the master)
S_Port: Slave Port (Port back to the master)
B_Port: Backup Port
U_Port: Unconnected Port
