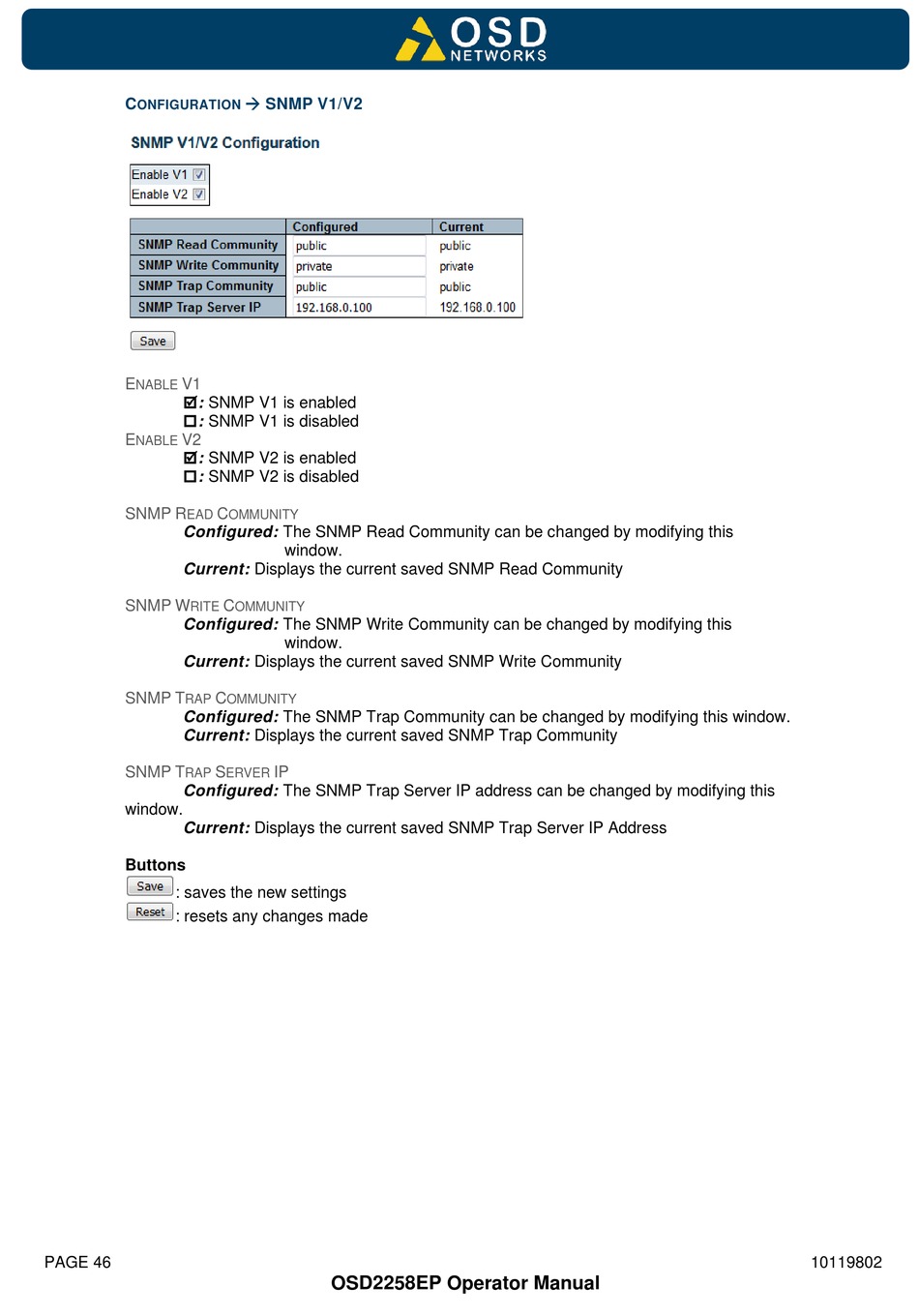

OSD NETWORKS OSD2258EP Operator's Manual page 46

C
ONFIGURATION
E V1
NABLE
: SNMP V1 is enabled
: SNMP V1 is disabled
E V2
NABLE
: SNMP V2 is enabled
: SNMP V2 is disabled
SNMP R C
EAD
Configured: The SNMP Read Community can be changed by modifying this
Current: Displays the current saved SNMP Read Community
SNMP W
RITE
Configured: The SNMP Write Community can be changed by modifying this
Current: Displays the current saved SNMP Write Community
SNMP T C
RAP
Configured: The SNMP Trap Community can be changed by modifying this window.
Current: Displays the current saved SNMP Trap Community
SNMP T S
RAP
Configured: The SNMP Trap Server IP address can be changed by modifying this
window.
Current: Displays the current saved SNMP Trap Server IP Address
Buttons
: saves the new settings
: resets any changes made
PAGE 46
→ SNMP V1/V2
OMMUNITY
window.
C
OMMUNITY
window.
OMMUNITY
IP
ERVER
OSD2258EP Operator Manual
10119802
