2.2.10 FITTING SFP CONNECTORS

Care should be taken when inserting/removing the SFP connectors from SFP port 9 and 10
as SFP modules are Electrostatic (ES) sensitive and Electrostatic Discharge (ESD)
precautions should be taken when installing. Ensure that the SFP is fully engaged and
latched into position.
Inserting SFP – Ensure that the SFP lever is in the locked position and insert into appropriate
SFP port. Gently push the SFP until it locks into place. Remove plastic/rubber dust cap and fit
fiber cable or RJ45 plug.
Removing SFP – Remove fiber connector or RJ45 plug. Pull the SFP lever down to unlock
SFP from housing. Using the lever, gently pull the SFP out.
2
1
Fiber SFP
Inserting
Removing
SFP
SFP
2
1
Copper SFP
Inserting
Removing
SFP
SFP

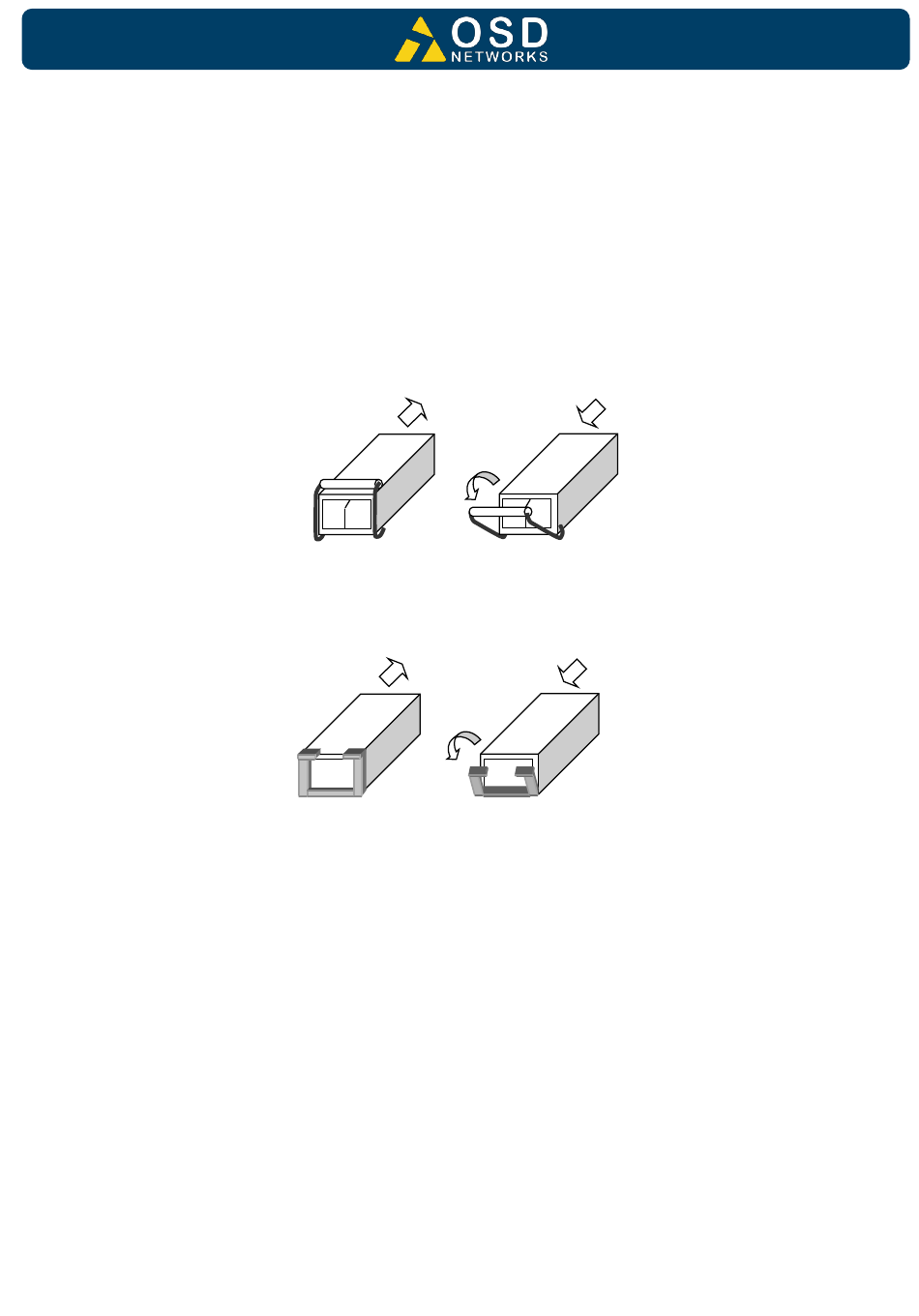

FIGURE 13: FITTING/REMOVING SFP CONNECTORS
