C
ONFIGURATION
P
ORT
Indicates port number per row.
M
ODE
Allows the user to manually set the port speed and duplex mode for the desired
port.
•
•
•
•
•
•
•
Note: Port 1 to 8 are speed and full/half duplex selectable. Port 9 & 10 are
enable/disable only.
Buttons
: saves the new settings
PAGE 53

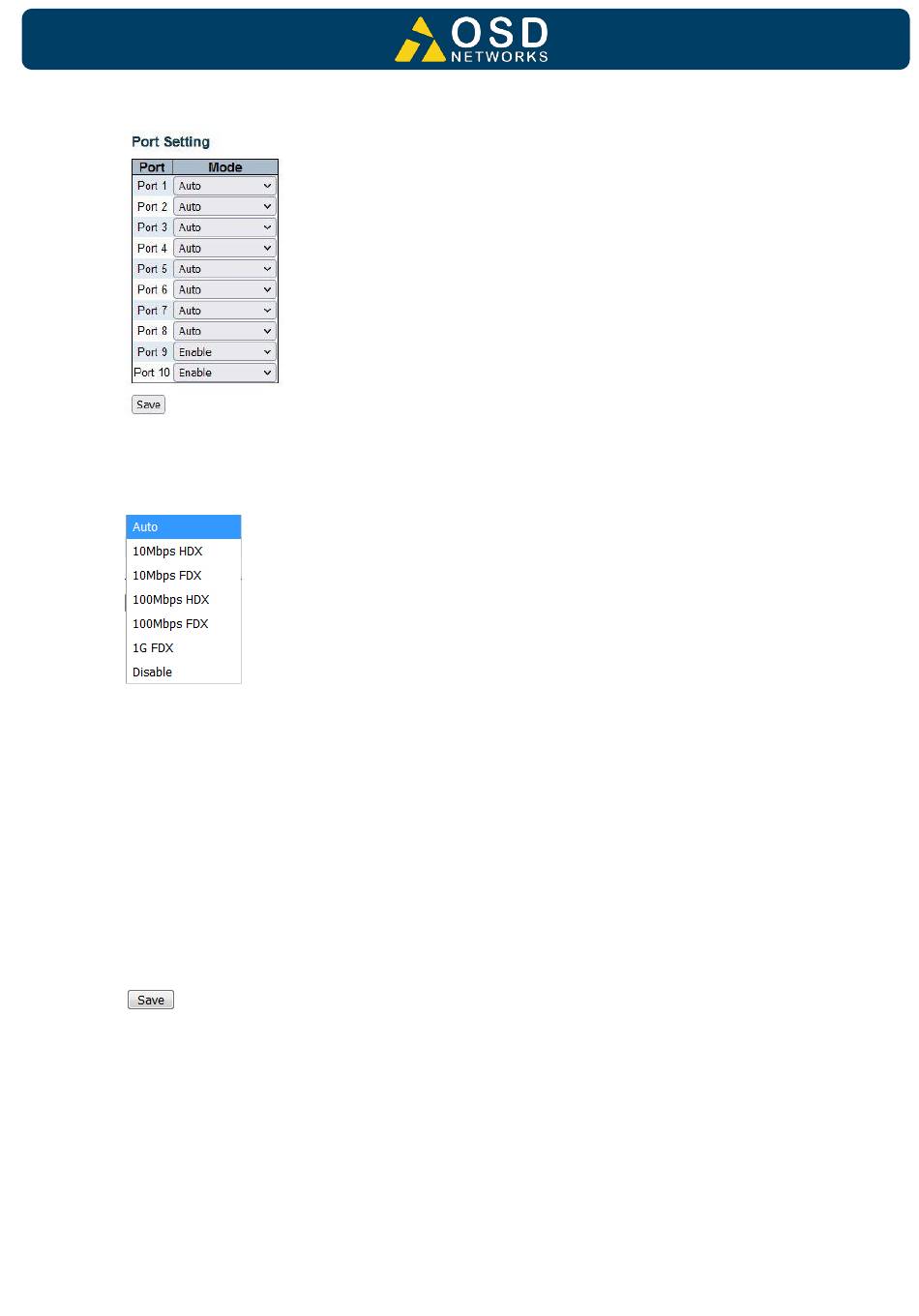

→ P
S
ORT ETTING
Auto: Auto Detect
10Mbps HDX: Half Duplex
10Mbps FDX: Full Duplex
100Mbps HDX: Half Duplex
100Mbps FDX: Full Duplex
1G FDX: Full Duplex
Disable: Port Disable
