2.2.7
MINI USB PORT
The Mini USB Port is used for uploading firmware updates. All OSD2258EP units will be
shipped with the latest firmware already installed. This port has no function for end user.

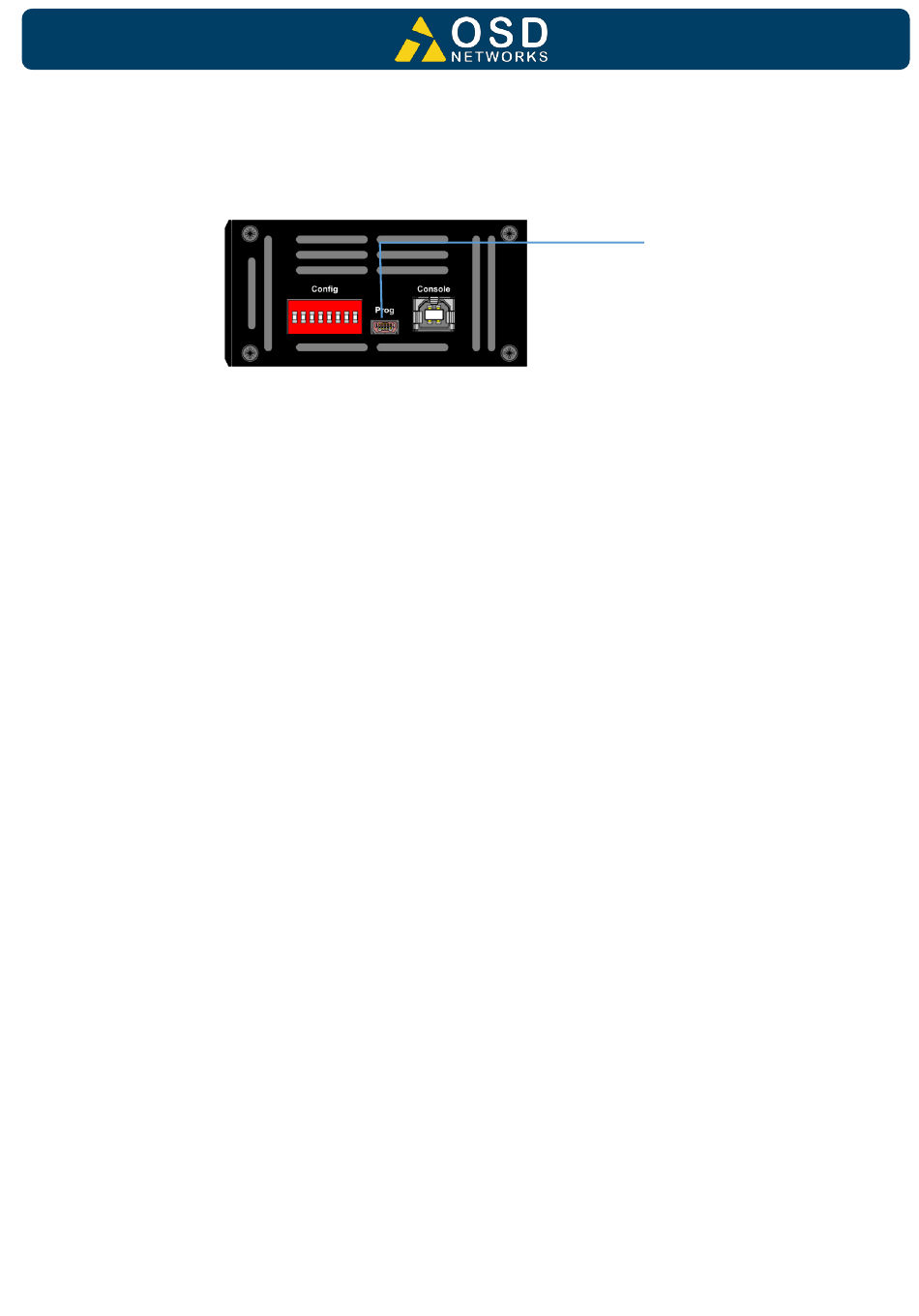

Mini USB Port
FIGURE 9: USB CONNECTOR
PAGE 14
10119802
OSD2258EP Operator Manual
