OSD NETWORKS OSD2251E Operator's Manual

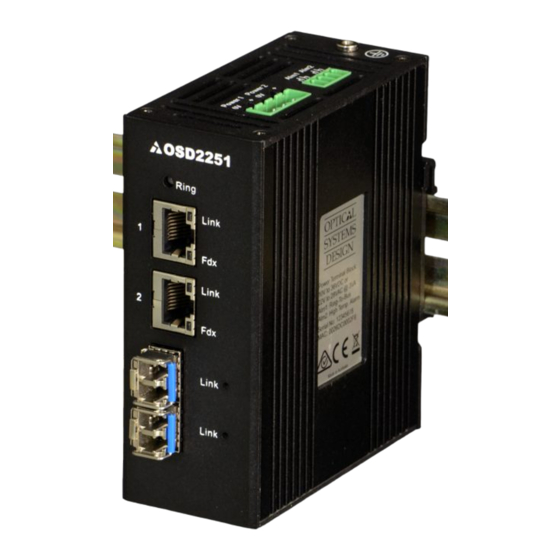

Lite managed 4-port ethernet switch with snmp & vlan 2 x 10/100/1000base-t & 2 x gigabit sfp
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operator Manual
OSD2251E
Lite Managed 4-port Ethernet Switch with
SNMP & VLAN
2 x 10/100/1000BASE-T & 2 x Gigabit SFP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OSD2251E and is the answer not in the manual?

Questions and answers

Related Manuals for OSD NETWORKS OSD2251E

Summary of Contents for OSD NETWORKS OSD2251E

  • Page 1 Operator Manual OSD2251E Lite Managed 4-port Ethernet Switch with SNMP & VLAN 2 x 10/100/1000BASE-T & 2 x Gigabit SFP...
  • Page 3 FIGURE 10: PORT/LED ......................15 FIGURE 11: CONTROLS ......................16 FIGURE 12: 8-WAY DIP SWITCH ................... 16 FIGURE 13: FITTING/REMOVING SFP CONNECTORS ............17 FIGURE 14: REDUNDANT RING CONFIGURATION ............. 18 FIGURE 15: REDUNDANT RING CONNECTION ..............19 PAGE 3 10120301 OSD2251E Operator Manual...
  • Page 4 TABLE 2: DC OR AC POWER CONNECTION................ 11 TABLE 3: ALARM CONNECTIONS ..................12 TABLE 4: LED FUNCTION....................... 15 TABLE 5: 8-WAY DIP SWITCH SETTINGS ................16 TABLE 6: TERMINAL COMMAND LINES ................21 PAGE 4 10120301 OSD2251E Operator Manual...

  • Page 5: Technical Summary

    1.1.1 OVERVIEW The OSD2251E is a 4-port lite managed switch with two Gigabit RJ45 and two Gigabit SFP uplink ports which can be used as standard ports or as a redundant fiber ring using OSD’s proprietary ring protocol. Along with higher level features including VLAN and IGMP snooping the OSD2251E is suitable for use in critical networks.

  • Page 6: Typical System Design

    1.2 TYPICAL SYSTEM DESIGN Figure 1 below indicates a possible set-up for an OSD2251E system. FIGURE 1: TYPICAL RING CONFIGURATION PAGE 6 10120301 OSD2251E Operator Manual...

  • Page 7: Technical Specifications

    RFC 2236 IGMP snooping v1, v2, v3 Ethernet Redundancy OSD-Ring SNMP MIBs RFC 1213 MIB Private MIB Framework Contact OSD for full list of available MIB’s Warranty Warranty Period 5 years MTBF (Ground Benign Environment, 724,000 hours 30ºC) PAGE 7 10120301 OSD2251E Operator Manual...

  • Page 8: Port Allocation

    RJ45 Port x 2 Link LED x 2 Front Panel SFP Port x 2 Alarm Port Top Panel Earth Screw Dual Power Port Console Port Bottom Panel Programming Port Configuration Switches FIGURE 2: PORT ALLOCATION PAGE 8 10120301 OSD2251E Operator Manual...

  • Page 9: Installation

    2 INSTALLATION AND OPERATION 2.1 INTRODUCTION This section outlines the methods required to install and operate the OSD2251E successfully. It should be studied carefully if damage to the equipment or poor results are to be avoided. This equipment has been fully tested prior to dispatch and is ready for immediate operation.

  • Page 10: Drawings And Dimensions

    2.2.2 DRAWINGS AND DIMENSIONS The OSD2251E is designed to be wall mounted onto a DIN-Rail (35mm top hat) fixture or by using 4 x M4 captivated screws (DIN Rail mount requires removal and flanges repositioned – see below). The unit dimensions (excluding connectors, SFPs, etc) is shown in Figure 3 below.

  • Page 11: Power Supply Connections

    2.2.3 LOCATION As with any electrical device, the OSD2251E should be placed where the switch will not be subjected to extreme temperatures, humidity, or electromagnetic interference. Specifically, the site selected should meet the following requirements:  The ambient temperature should be between -40°C to 75°C.

  • Page 12: Alarm Connection

    2.2.5 ALARM CONNECTION The OSD2251E has two monitoring alarm outputs: 1) Ring to Bus Alarm and 2) Temperature Alarm. The alarm connections and conditions for alarm outputs are as set out in Table 3. There are four pins on the 3.5mm terminal block used alarm output. Maximum ratings the OSD2251E relay can drive is 100mA @ 46V .

  • Page 13: Usb Connector

    2.2.6 USB CONNECTOR The OSD2251E has a USB – Type B connector located on the bottom of the unit that is used for Command Line Interface (CLI) from the PC to the OSD2251E via the PC’s USB connector. See section 2.4 for further CLI information.

  • Page 14: Mini Usb Port

    2.2.7 MINI USB PORT The Mini USB Port is used for uploading firmware updates. All OSD2251E units will be shipped with the latest firmware already installed. This port has no function for end user. Mini USB Port FIGURE 9: USB CONNECTOR...

  • Page 15: Led Indicators

    Green Gr/Am Amber  Power No Power* Power  Ring/Bus Initial Non-Ring Ring Initializing  No Activity Activity No Link Active  Link No Link Present  No Activity Activity No Link 1Gbps 100Mbps PAGE 15 10120301 OSD2251E Operator Manual...
  • Page 16 2.2.9 CONTROLS The OSD2251E has an 8-way DIP switch to control a number of functions. Table 5 outlines the function of each switch. 8-Way DIP Switch FIGURE 11: CONTROLS FIGURE 12: 8-WAY DIP SWITCH TABLE 5: 8-WAY DIP SWITCH SETTINGS...

  • Page 17: Fitting Sfp Connectors

    Removing SFP – Remove fiber connector or RJ45 plug. Pull the SFP lever down to unlock SFP from housing. Using the lever, gently pull the SFP out. Fiber SFP Inserting Removing Copper SFP Inserting Removing FIGURE 13: FITTING/REMOVING SFP CONNECTORS PAGE 17 10120301 OSD2251E Operator Manual...

  • Page 18: Operation

    2.3 OPERATION When using the OSD2251E for the first time, check that the unit is in good condition with no visible damage. Upon power up check that the indicators illuminate accordingly on power up (see Table 4). 2.3.1 CONNECTIONS For RJ45 connection use Category 5 (CAT5) or higher. Length should be no more than 100 meters.
  • Page 19 FIGURE 15: REDUNDANT RING CONNECTION Bus Operation To connect the OSD2251E in a bus configuration ports 3 and 4 must be used together with fiber SFPs. The remaining ports (ports 1 & 2) should be used to connect to your Ethernet devices (eg.

  • Page 20: Command Line Interface

    The Command Line Interface (CLI) is a useful tool for checking link status and debugging link connections. To enable the use of CLI the OSD2251E must be connected to a PC with a serial port and an appropriate cable as specified in section 2.2.6. Using a terminal emulation program such as Hyperterminal, a number of command lines specific to the OSD2251E can be implemented to check link/node status, ring/bus topology and enable/disable float backup.

  • Page 21: Command Line Functions

    COMMAND LINE FUNCTIONS There are a number of command line functions that enables the user to obtain running information of a single OSD2251E unit or the complete topology of the ring/bus network. This section explains the command lines and its functions.

  • Page 22: Version Check

    VERSION CHECK - <vc> FIGURE 18: VERSION CHECK Displays useful information regarding the unit: Software Version Number Software ID Number installed on the OSD2251E Build Time Product Name PAGE 22 10120301 OSD2251E Operator Manual...

  • Page 23: Factory Default

    FACTORY DEFAULT - <fd> FIGURE 19: FACTORY DEFAULT SETTING Resets the OSD2251E to its default factory setting. A prompt question will appear “Do you want to Reset Configuration [y/n]? n – Exits the default configuration setting and returns to the home prompt.
  • Page 24 Displays the current IP address, Net mask and Gateway settings. To make changes to the IP address, Net mask and Gateway, at the prompt enter the new details in the following format; ipconfig <ip address> <netmask> <gateway address> PAGE 24 10120301 OSD2251E Operator Manual...
  • Page 25 TOPOLOGY CHECK - <tc> FIGURE 21: TOPOLOGY CHECK In this case, only one OSD2251E is connected to the USB cable. The display indicates the following; No: 1 – Number of units connected on the ring/bus (in this case only one unit) MAC_ADDRESS: 00:26:dc:00:1e:28 –...
  • Page 26 In the example below there are four OSD2251E connected in a ring configuration. FIGURE 22: TOPOLOGY CHECK No: 4 – Four units connected MAC_ADDRESS:– Displaying all the MAC addresses of the units connected on the ring/bus TOPOLOGY: Ring – Displaying type of connection.
  • Page 27 FIGURE 23: NODE CHECK Node check obtains the running status of the node for the specific MAC address requested within the Ring/Bus. Correct entry format is as follows (MAC address specified below is an example); nc 00:26:dc:00:1e:28 PAGE 27 10120301 OSD2251E Operator Manual...
  • Page 28 This command line displays the running status of the local node that the USB cable is plugged into. The information provided is the MAC address, Topology, Node Role, Port Role and Float Backup status. PAGE 28 10120301 OSD2251E Operator Manual...
  • Page 29 FIGURE 26: RING TOPOLOGY In Figure 26, node 1 will communicate with node 2, node 3 and node 4 via node 3. Node 2 will communicate to node 4 only via node 1 and 3. PAGE 29 10120301 OSD2251E Operator Manual...
  • Page 30 Note: When configuring the float backup function all units on the ring/bus network must have the same float backup configuration for correct operation. Differing backup configurations will cause segmented backup branches and may not function as intended. All OSD2251E are set to enabled float backup upon shipment. PAGE 30 10120301...
  • Page 31 The link furthest from the Master unit in a ring configuration is automatically selected as the backup branch. In the case of even units on a ring the fiber link on port 3 will always be the backup branch – indicated by a dashed line on a ring topology. PAGE 31 10120301 OSD2251E Operator Manual...
  • Page 32 Note: When configuring the float backup function all units on the ring/bus network must have the same float backup configuration for correct operation. Differing backup configurations will cause segmented backup branches and may not function as intended. All OSD2251E are set to enabled float backup upon shipment. PAGE 32 10120301...
  • Page 33 This command line enables the user to setup the IP for all nodes on a ring/bus. Correct entry format is as follows (MAC, IP, mask and gateway address specified below is an example); node_all_set 192.168.0.99 255.255.255.0 192.168.0.1 2 PAGE 33 10120301 OSD2251E Operator Manual...
  • Page 34 Reboot All Reboots all devices in the network. The correct reboot format is as follows; reboot/rb all Note: Reboot All should only be used when a single device reboot does not recover a network failure. PAGE 34 10120301 OSD2251E Operator Manual...

  • Page 35: Snmp Configuration

    FIGURE 35: SNMP This command line changes the root path. Typing ? will list the command lines within the SNMP directory. To return to the root directory, type in return and hit enter on the keyboard. PAGE 35 10120301 OSD2251E Operator Manual...
  • Page 36 This command changes the SNMP trap community. The format is as follows; stc <trap community> Example: stc public Return to Root Directory <return> This command returns the CLI to the root directory. The format is as follows; return PAGE 36 10120301 OSD2251E Operator Manual...

  • Page 37: Port Control

    Note: A warning message will appear and prompt the user to either select yes or no to continue n – Exits the port control setting and returns to the root prompt. y – disables all 4 ports and returns to the root prompt. PAGE 37 10120301 OSD2251E Operator Manual...
  • Page 38 3 WEB GUI The OSD2251E provides a web-based browser interface for configuring and monitoring the unit. This interface allows you to access the switch using any preferred web browser. This chapter describes how to configure the switch using its web-based browser interface.

  • Page 39: Logging On To The Switch

    In your web browser, specify the IP address of the switch. Default IP address is 192.168.0.99 To access the OSD2251E a username and password will need to be entered. Factory default username is “admin” and no password is set (leave blank) and click Login.
  • Page 40 3.1.2 GUI MENU The user has access to Configure, Monitor or Maintain the OSD2251E. Each section will be explained within this manual. PAGE 40 10120301 OSD2251E Operator Manual...
  • Page 41 Location OCATION Configured: The user can set the location of the unit to easily identify it’s location. Current: Displays the current saved location Buttons : saves the new settings : resets any changes made PAGE 41 10120301 OSD2251E Operator Manual...

  • Page 42: Configuration  Snmp

    Configured: The SNMP Trap Server IP address can be changed by modifying this window. Current: Displays the current saved SNMP Trap Server IP Address Buttons : saves the new settings : resets any changes made PAGE 42 10120301 OSD2251E Operator Manual...
  • Page 43 UTHENTICATION ASSWORD A string identifying the authentication password phrase. For MD5 authentication protocol, the allowed string length is 8 to 32. For SHA authentication protocol, the allowed string length is 8 to 40. PAGE 43 10120301 OSD2251E Operator Manual...
  • Page 44 AES: An optional flag to indicate that this user uses AES authentication protocol. RIVACY ASSWORD A string identifying the privacy password phrase. The allowed string length is 8 to 32. Buttons : Click to add new user : saves the new settings PAGE 44 10120301 OSD2251E Operator Manual...

  • Page 45: Configuration  Vlan

    Member of exactly one VLAN, the Port VLAN (a.k.a. Access VLAN), which by default is 1  Accepts untagged frames  Discards all frames not classified to the Access VLAN  On egress all frames are transmitted untagged PAGE 45 10120301 OSD2251E Operator Manual...
  • Page 46 All VLAN frames in field(except port VLAN), are transmitted with a tag. VLAN (U IXED NTAGGED All VLAN frames in this field, are transmitted without a tag. This option is only available for ports in Hybrid mode. Buttons : saves the new settings PAGE 46 10120301 OSD2251E Operator Manual...
  • Page 47 100Mbps FDX: Full Duplex  1G FDX: Full Duplex  Disable: Port Disable Note: Port 1 & 2 are speed and full/half duplex selectable. Port 3&4 are enable/disable only. Buttons : saves the new settings PAGE 47 10120301 OSD2251E Operator Manual...
  • Page 48 Allows the user to manually set the Log Level to be monitored  Disable: Disables the log monitoring for selected port  Info: Displays basic log activity for selected port  Debug: Displays detailed log activity for selected port Buttons : saves the new settings PAGE 48 10120301 OSD2251E Operator Manual...
  • Page 49 Displays port number per row TATIC OUTER A drop down menu allows user settings for the following;  Enable: Enables IGMP Static Router setting  Disable: Disables IGMP Static Router setting Buttons : saves the new settings PAGE 49 10120301 OSD2251E Operator Manual...
  • Page 50 The allowed selection from the drop-down menu is;  Auto  Forced IGMPv1  Forced IGMPv2  Forced IGMPv3 The default IGMP version value is IGMP-Auto Buttons : Click to add new IGMP VLAN. : saves the new settings PAGE 50 10120301 OSD2251E Operator Manual...
  • Page 51  S ONITOR YSTEM This menu is identical to the start-up menu. A table displaying useful system information is also displayed containing MAC address, Serial Number, Software, IP address, etc. PAGE 51 10120301 OSD2251E Operator Manual...
  • Page 52 Indicates the role of each ports connections: Switch Port, Ring Port, Bus Port. Up: Connection established Down: No Connection detected PEED Indicates the port connection speed in Mbps.  10: 10Mbps  100: 100Mbps  1000: 1000Mbps (1Gbps) UPLEX Indicates port connection type. Full, Half PAGE 52 10120301 OSD2251E Operator Manual...
  • Page 53 Displays the IP address for each unit connected on the ring/bus ERSION Indicates the ring module software version EVICE Indicates the OSD product within the ring OCATION The location of the device can be set and displayed in this window PAGE 53 10120301 OSD2251E Operator Manual...
  • Page 54  S ONITOR YSTEM Monitors and logs activity Event number Records a time-stamp of the log activity A brief description of the type of event PAGE 54 10120301 OSD2251E Operator Manual...
  • Page 55 Lists the port number of device being monitored to display status TATUS Indicates the status of the router port number Group Information VLANS VLAN ID of the group. GROUP Group address of the group displayed. EMBERS Ports under this group. PAGE 55 10120301 OSD2251E Operator Manual...
  • Page 56 It is advised to check that the unit has the uploaded software installed correctly by selecting Monitor  System Info. Check the Software ID and the Build Time (date and time of upload) is correct. Buttons : Browse file location : Upload software PAGE 56 10120301 OSD2251E Operator Manual...
  • Page 57 Enter new password again in this window. This window must match new password window in order for new password to take effect. Buttons : click save for new username and/or passorword settings to take effect. PAGE 57 10120301 OSD2251E Operator Manual...
  • Page 58 Clicking this button will reset the unit to factory default settings including the user name and current password.  S AINTENANCE YSTEM EBOOT Use the section to reboot the system when any switch settings are changes for the new settings to take effect. PAGE 58 10120301 OSD2251E Operator Manual...

  • Page 59: External Inspection

    4 MAINTENANCE 4.1 INTRODUCTION The following section outlines the fault-finding procedure for the OSD2251E modems. Please take note of the following: ▲ Personnel without appropriate training should not attempt any maintenance except that outlined below. ▲ If further maintenance is attempted you are warned that every care should be taken to...

  • Page 60: Warranty Period

    All modifications are to be carried out by OSD Technicians. Warranty is void if unauthorized removal and/or tampering with serial number and/or repair labels is evident. PAGE 60 10120301 OSD2251E Operator Manual...
  • Page 61 PAGE 61 10120301 OSD2251E Operator Manual...
  • Page 62 PAGE 62 10120301 OSD2251E Operator Manual...
  • Page 63 PAGE 63 10120301 OSD2251E Operator Manual...
  • Page 64 Optical Systems Design Pty. Ltd. 7/1 Vuko Pl. Warriewood 2102 P.O. Box 891 Mona Vale N.S.W. Australia 2103 Telephone: +61 2 9913 8540 Facsimile: +61 2 9913 8735 Email: sales@osd.com.au Web Site: www.osd.com.au Printed in Australia...
