OSD NETWORKS OSD2258EP Operator's Manual page 60

→ P
M
ONITOR
P
ORT

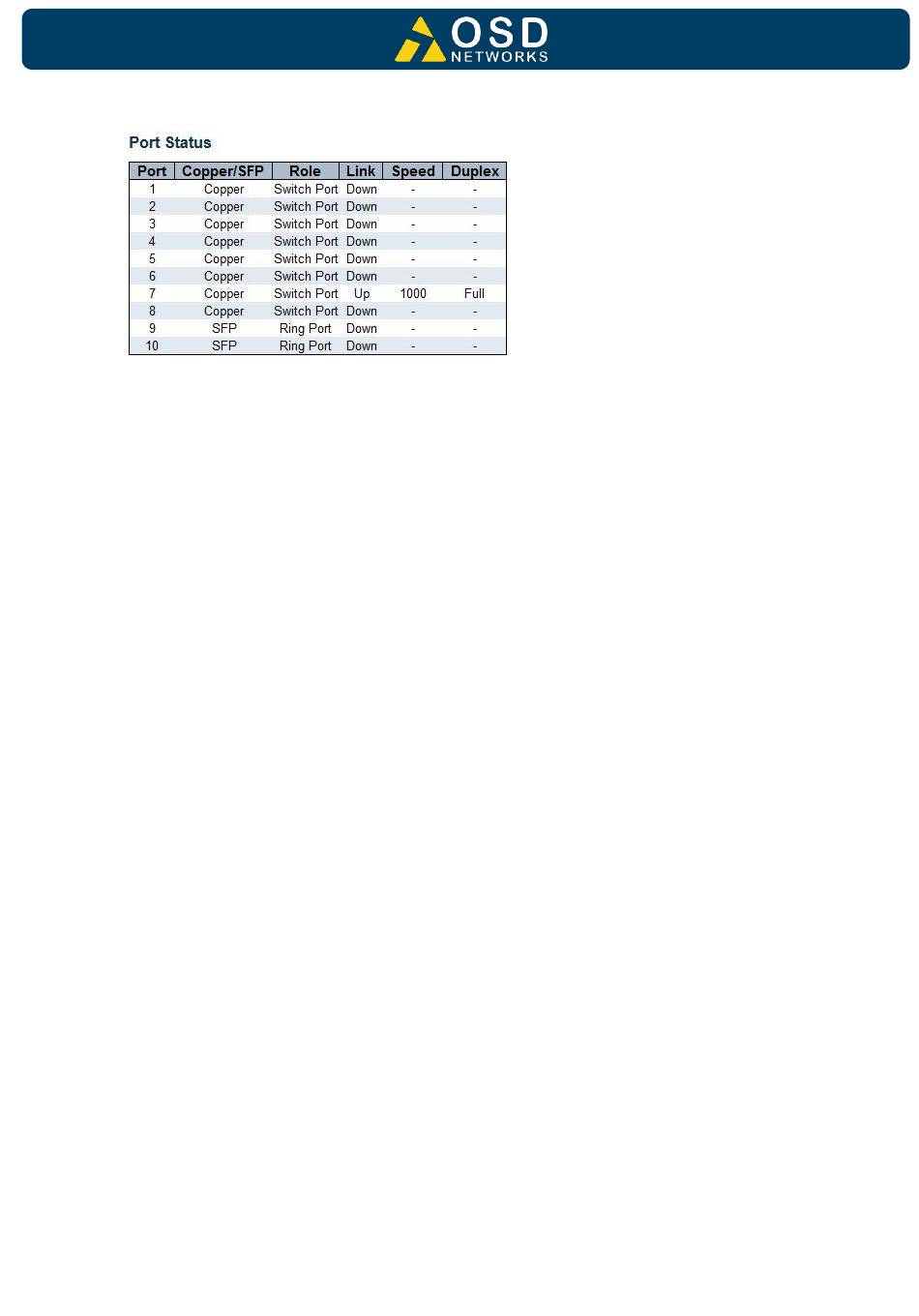

Monitors each port activity.
C /SFP
OPPER
Indicates the port connection: Either Copper or SFP
R
OLE
Indicates the role of each ports connections: Switch Port, Ring Port, Bus Port.
L
INK
Up: Connection established
Down: No Connection detected
S
PEED
Indicates the port connection speed in Mbps.
•
•
•
D
UPLEX
Indicates port connection type. Full, Half
PAGE 60
ORT
10: 10Mbps
100: 100Mbps
1000: 1000Mbps (1Gbps)
OSD2258EP Operator Manual
10119802
