2.2.2
DRAWINGS AND DIMENSIONS
The OSD2258EP is designed to be wall mounted onto a DIN-Rail (35mm top hat) fixture or by
using 4 x M4 captivated screws (DIN Rail mount requires removal and flanges repositioned –
see below). The unit dimensions (excluding connectors, SFPs, etc) is shown in Figure 3
below.
DIN Mount
Unscrew x 4
Remove DIN
PAGE 10
Unscrew x 2
(Top & Bottom)
DIN to Wall Mount Conversion

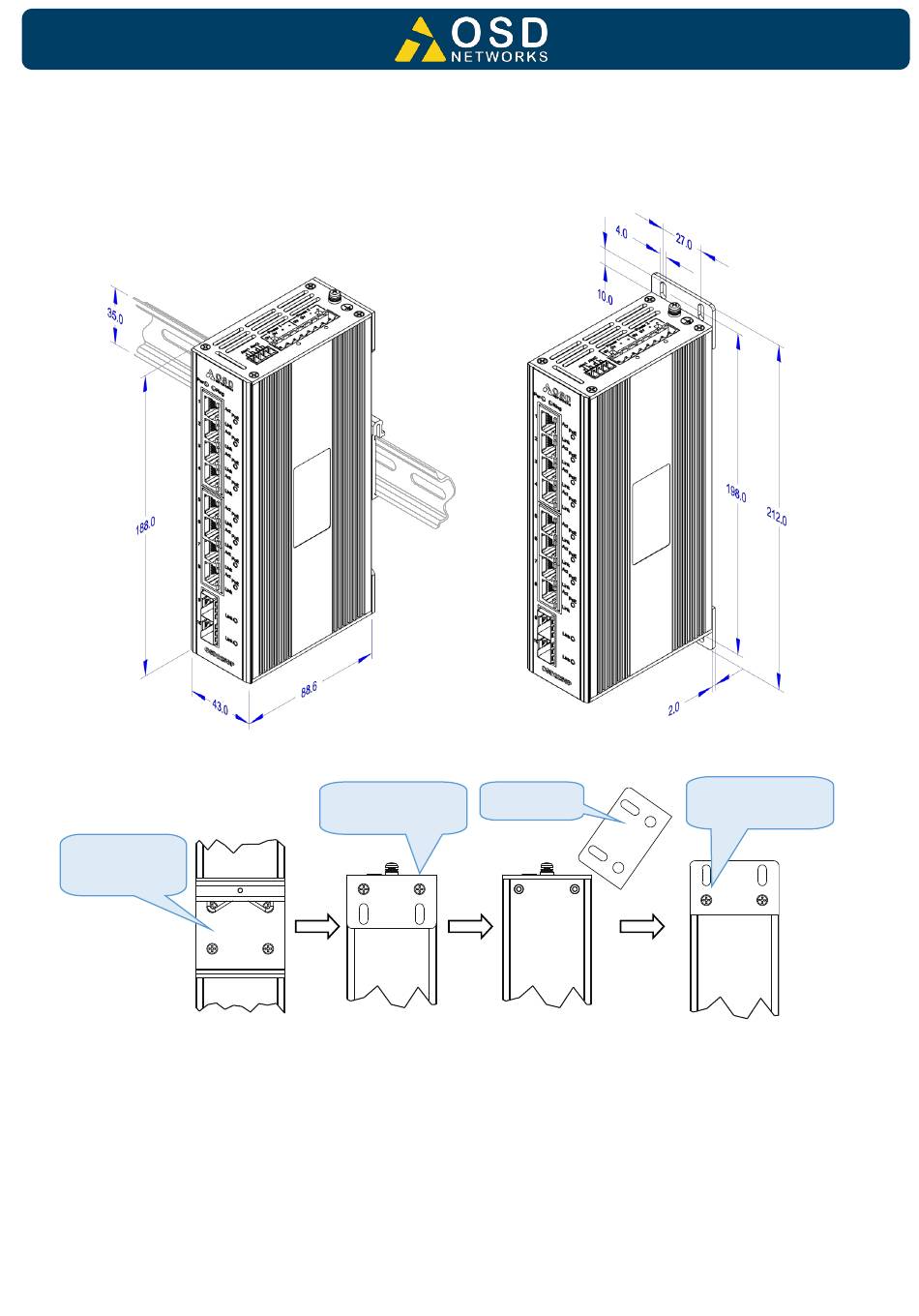

FIGURE 3: MOUNTING DIMENSIONS
OSD2258EP Operator Manual
Wall Mount
Rotate
Screw x 2
(Top & Bottom)
10119802
