2.2.6

USB CONNECTOR

The OSD2258EP has a USB – Type B connector located on the bottom of the unit that is
used for Command Line Interface (CLI) from the PC to the OSD2258EP via the PC's USB
connector. See section 2.4 for further CLI information.
To operate and control the OSD2258EP using the CLI, a proprietary driver will be required to
be installed onto the PC being used. The driver can be found and downloaded via the
following site:
driver for your operating system, install and follow the installation instructions from your PC.
PAGE 13

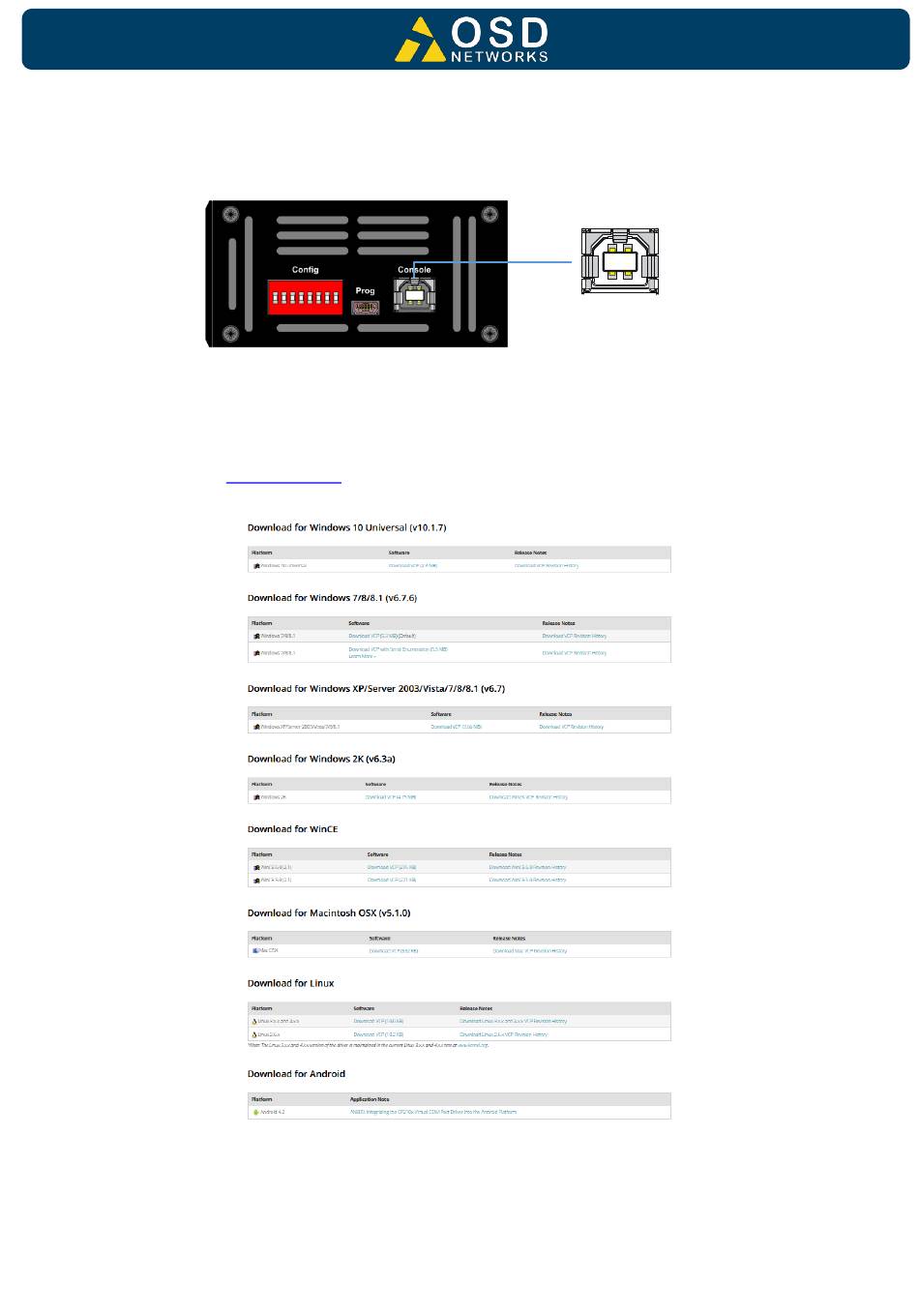

FIGURE 7: USB TYPE B CLI PORT
www.silabs.com and searching for the CP210x driver. Download the relevant
FIGURE 8: CLI INSTALLATION
OSD2258EP Operator Manual
USB Type B - CLI Port
