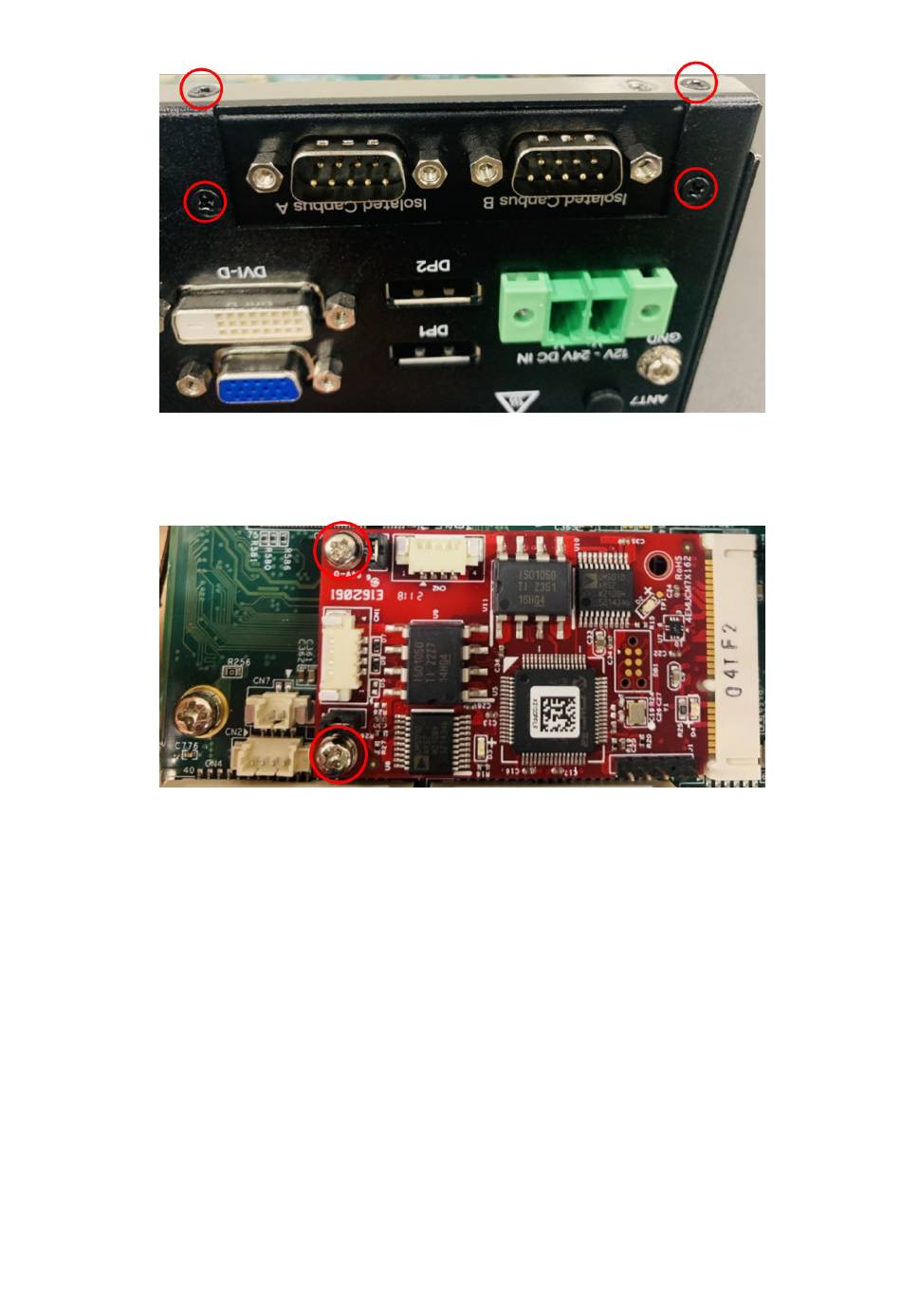

Figure 92. Canbus I/O panel installed on front I/O panel
11. Install the Canbus mPCIe module on the motherboard. Use the two screws in the corners of the module, as shown in the
following figure.
Figure 93. Canbus mPCIe installed on motherboard
12. Connect the cables from the Canbus ports to the Canbus mPCIe module. Use a cable tie, as shown with a red circle in the
following figure.
52
Installation procedure for 2x Canbus uFM module
