Dell EMC Edge Gateway 5200 Service Manual page 34

9. Apply the thermal pad to the uFM module, and remove the nut and washer from the DC IN jack, as shown in the following
figure.

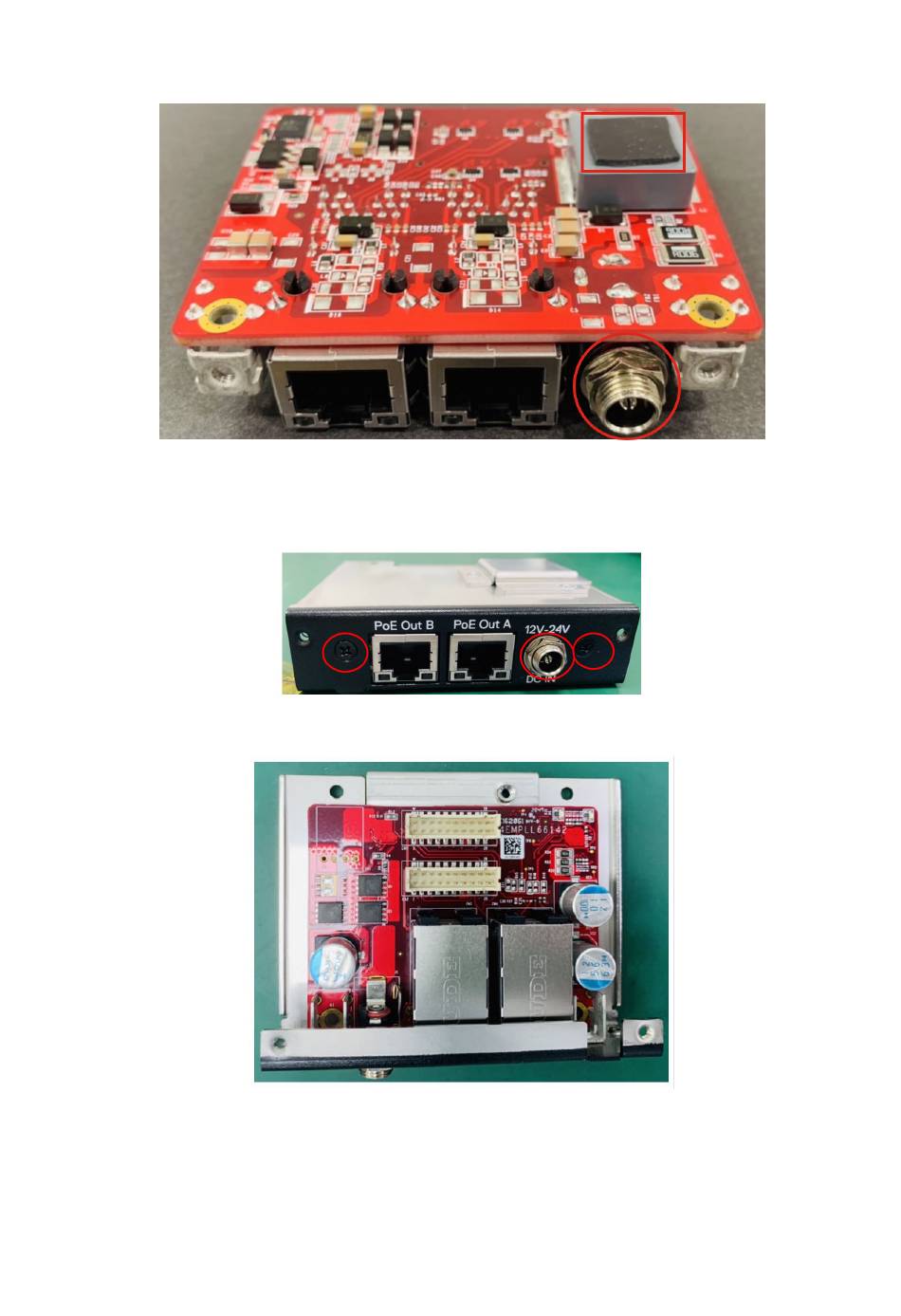

Figure 54. Apply thermal pad and remove nut and washer
10. Connect the uFM board to the I/O panel that is included in the Expansion Module, using the two screws and the nut and
washer of the DC IN jack, as shown in the following figures.
Figure 55. GbE with PoE I/O panel
Figure 56. GbE with PoE uFM module with I/O panel
11. Secure the bracket to the motherboard using four screws, as shown in the following figure.
34 Installation procedure for 2x GbE with PoE uFM module
