4. Install the SMA cables into the antenna holes in the back and side panels. Align the flat section of the gold connector tube
with the flat section of the antenna hole. Position the cable connector so that the sheet metal of the panel is between the
two washers.

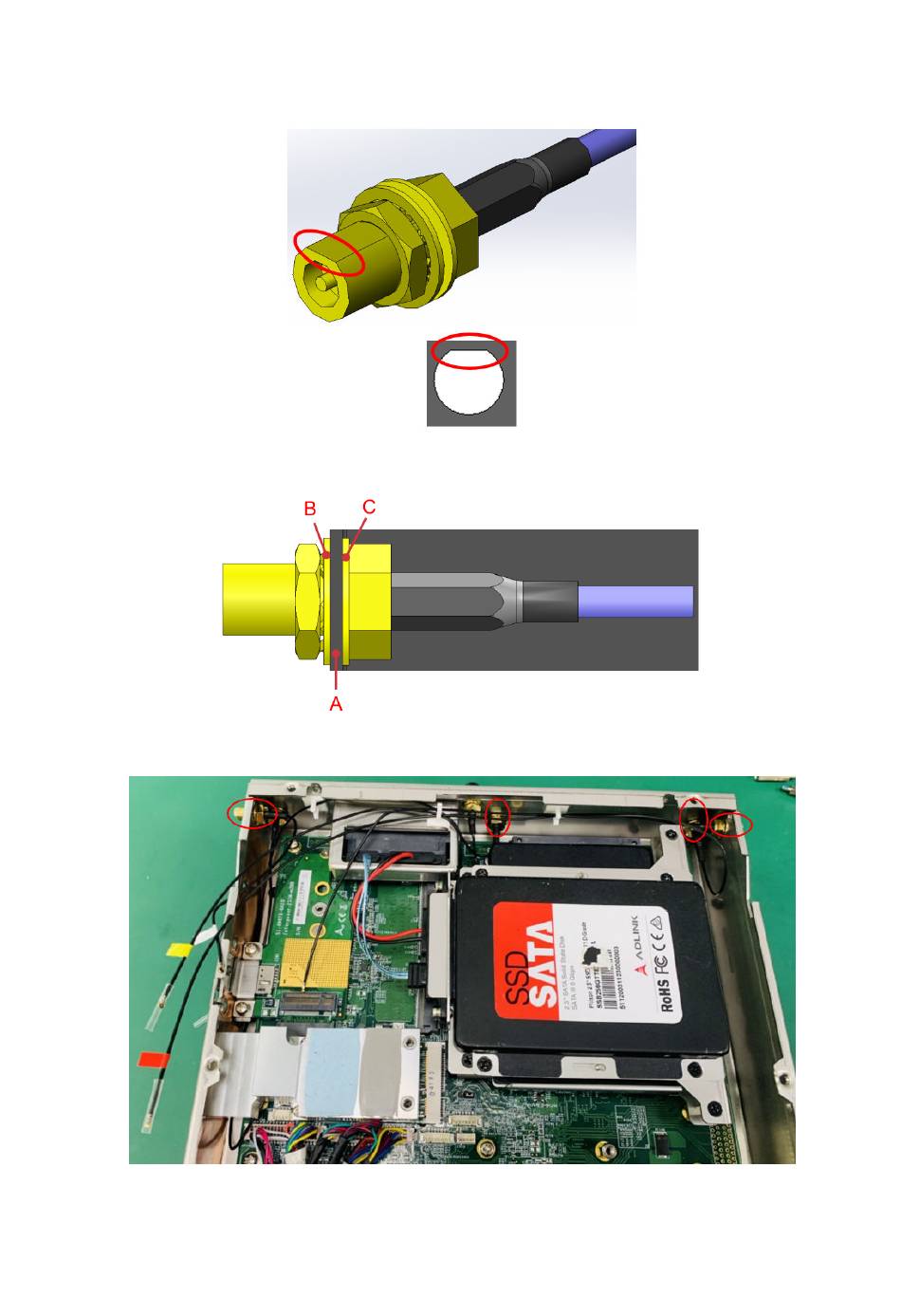

Figure 12. Align SMA cable with antenna hole
Figure 13. Position sheet metal (A) between SMA cable connector washers (B, C)
Figure 14. SMA cables connected
Installation procedure for 4G and 5G expansion modules
11
