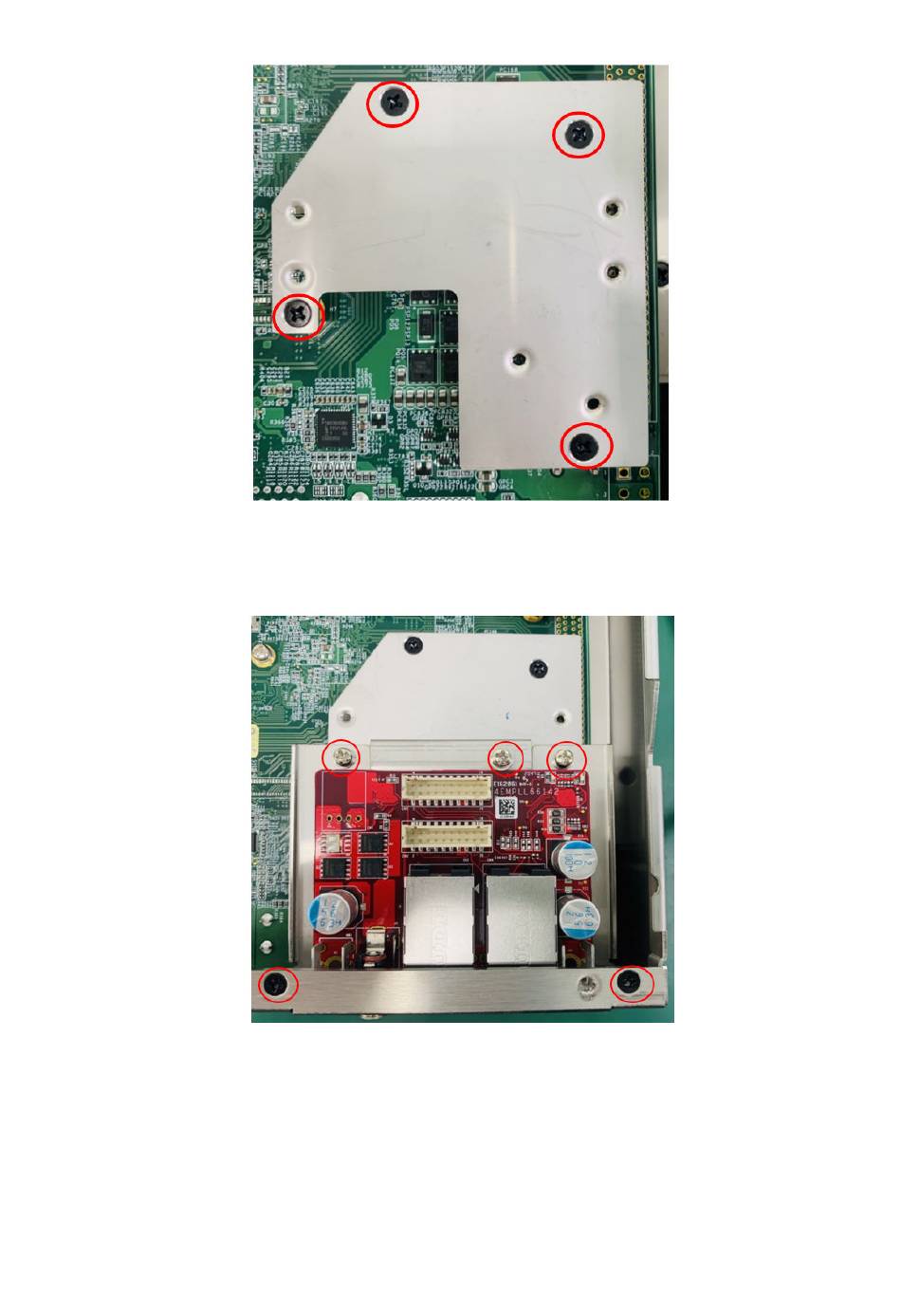

Figure 57. Bracket secured to motherboard
12. Secure the uFM module to the bracket and device chassis, and secure the GbE with PoE I/O panel to the front I/O panel, as
shown in the following figures.
Figure 58. uFM module secured to bracket and chassis
Installation procedure for 2x GbE with PoE uFM module
35
