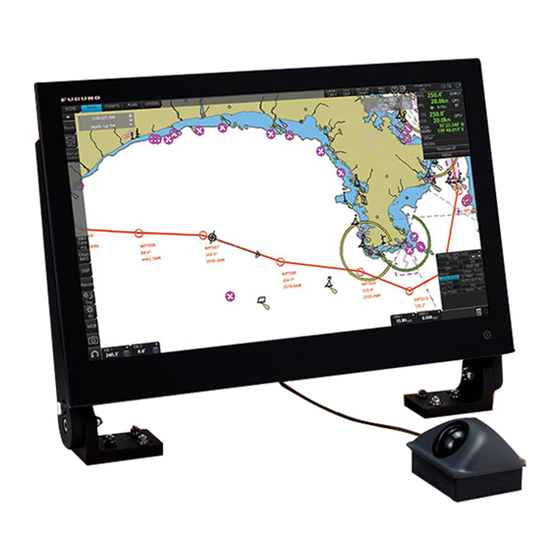

Furuno ECDIS FMD-3100 Installation Manual

Electronic chart display and information system
Hide thumbs Also See for ECDIS FMD-3100:
Table of Contents

Advertisement

Quick Links

Installation Manual
ECDIS
FMD-3100
Model
(ELECTRONIC CHART DISPLAY AND INFORMATION SYSTEM)
SAFETY INSTRUCTIONS ................................................................................................ i
SYSTEM CONFIGURATION ........................................................................................... ii
EQUIPMENT LIST .......................................................................................................... iv
1. MOUNTING..............................................................................................................1-1
1.1 Panel Computer Unit (PCU-3010) .....................................................................................1-1
1.2 Trackball Control Unit (RCU-030) ....................................................................................1-11
1.3 Sensor Adapter MC-3000S/3020D/3030D (Optional)......................................................1-13
1.4 Intelligent Hub HUB-3000 (Optional) ...............................................................................1-14
1.5 Mounting the Switching Hub HUB-100 (Optional)............................................................1-15
1.6 Radar Connection Box RCB-002 (Optional) ....................................................................1-16
2. WIRING....................................................................................................................2-1
2.1 Panel Computer Unit PCU-3010........................................................................................2-4
2.2 Sensor Adapters (Optional) .............................................................................................2-13
2.3 Intelligent HUB HUB-3000 (Optional) ..............................................................................2-27
2.4 Radar Connection Box RCB-002 (Optional) ....................................................................2-28
APPENDIX 1JIS CABLE GUIDE...............................................................................AP-1
APPENDIX 2 ROD TERMINALS ...............................................................................AP-2
APPENDIX 3DIGITAL INTERFACE ..........................................................................AP-7
APPENDIX 4RA/IF BOARD JUMPER VALUES.....................................................AP-23
APPENDIX 5ALERT LIST .......................................................................................AP-24
PACKING LIST(S) ....................................................................................................... A-1
OUTLINE DRAWING(S) .............................................................................................. D-1
INTERCONNECTION DIAGRAM(S) ........................................................................... S-1
For PCU-3010
www.furuno.com
All brand and product names are trademarks, registered trademarks or service marks of their respective holders.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECDIS FMD-3100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Furuno ECDIS FMD-3100

Summary of Contents for Furuno ECDIS FMD-3100

  • Page 1: Table Of Contents

    APPENDIX 4RA/IF BOARD JUMPER VALUES.............AP-23 APPENDIX 5ALERT LIST ..................AP-24 PACKING LIST(S) ....................... A-1 OUTLINE DRAWING(S) ....................D-1 INTERCONNECTION DIAGRAM(S) ................S-1 For PCU-3010 www.furuno.com All brand and product names are trademarks, registered trademarks or service marks of their respective holders.
  • Page 2 The paper used in this manual is elemental chlorine free. ・FURUNO Authorized Distributor/Dealer 9-52 Ashihara-cho, Nishinomiya, 662-8580, JAPAN A : OCT 2019 Printed in Japan All rights reserved. E : SEP . 10, 2021 Pub. No. IME-44841-E (DAMI ) FMD-3100(PCU-3010)

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS The installer of the equipment must read the safety instructions before attempting to install the equipment. WARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, CAUTION can result in minor or moderate injury.

  • Page 4: System Configuration

    SYSTEM CONFIGURATION Single workstation Note: Trackball Control Unit RCU-030 Serial interface Intelligent Hub Sensor Adapter MC-3000S HUB-3000* 24 VDC USB DVD Drive Keyboard Digital IN interface 100-230 VAC Sensor Adapter 5139U BLACK or SKB-E3U MC-3020D External Monitor* , VDR* PANEL Digital OUT interface Sensor Adapter COMPUTER...
  • Page 5 SYSTEM CONFIGURATION Multiple workstations (Maximum 3) Note: Trackball Control Unit RCU-030 USB DVD Drive Keyboard 5139U BLACK or SKB-E3U External Monitor* , VDR* USB Printer, USB Flash Drive Serial Interface (4 ports): • IEC 61162-1/2 x 2 (AIS, GYRO) • IEC 61162-1 x 2 (GPS, LOG) PANEL PANEL Intelligent Hub...

  • Page 6: Equipment List

    EQUIPMENT LIST NOTICE At least one AMS device must be installed in the navigation equipment. Standard Supply Name Type Code No. Remarks Panel Computer Unit PCU-3010 Trackball Control Unit RCU-030 Installation Materials CP24-03102 001-567-110 For PCU-3010 Accessories FP24-01020 000-037-190 DVD drive Optional Supply Name Type...
  • Page 7 MC1.5-W-L2000 001-187-490-10 Between sensor adapters, 2 m Cable Assy. MC1.5-W-L3000 001-187-500-10 Between sensor adapters, 3 m MJ-A10SPF0020A-050+ 001-283-370-00 For Non-FURUNO radars, 5 m MJ-A10SPF0020A-100+ 001-283-380-00 For Non-FURUNO radars, 10 m MJ-A10SPF0020A-200+ 001-283-390-00 For Non-FURUNO radars, 20 m MJ-A10SPF0020A-300+ 001-283-400-00 For Non-FURUNO radars. 30 m Operator’s...
  • Page 8 EQUIPMENT LIST This page is intentionally left blank.

  • Page 9: Mounting

    MOUNTING NOTICE Do not apply paint, anti-corrosive sealant or contact spray to coating or plastic parts of the equipment. Those items contain organic solvents that can damage coating and plastic parts, especially plastic connectors. Panel Computer Unit (PCU-3010) The PCU-3010 can be flush-mounted or desktop-mounted (optional). Mounting considerations When selecting a desktop mounting location, keep the following points in mind: •...
  • Page 10 1. MOUNTING 1.1.1 Flush mounting You will need a Torx screwdriver (T10, T25) to complete this procedure. 1. Attach the USB cable clamp to the PCU using the Torx screws supplied. USB cable clamp Attach the USB cable clamp to these posts.
  • Page 11 1. MOUNTING Fasten the flush mount brackets as shown below. Pan head screw Flat head C-washer screw Flush mount bracket Installation side Panel PC side "A" flush mount bracket "B" flush mount bracket 1.1.2 Desktop mounting (optional) You will need a Torx screwdriver (T10) and a 4mm hexagon wrench to do this proce- dure.
  • Page 12 1. MOUNTING 3. Attach the cable clamp (supplied) to the rear of the PCU-3010 using the supplied screws (M5×12, 3 pcs.). Screw Cable clamp 4. Referring to the figure below, tilt the PCU 90° rearwards by unlocking the brackets. Hold the unit in place, then pull and turn the locking pins clockwise, one at a time, to set the pin in the unlock position.
  • Page 13 1. MOUNTING 7. Referring to the figure below, set the PCU upright at a comfortable viewing angle, then turn the locking pin counterclockwise to lock the brackets in place. Push in locking pin firmly. Unlock, tilt and lock CAUTION Be sure that the brackets are locked in place securely with the locking pins, to prevent bodily injury or damage to the equipment.
  • Page 14 1. MOUNTING 1.1.3 How to attach the hood (optional) Follow the procedure below to install the optional hood (type: OP24-60). You will need these tools. Flush-mounting: T25 Torx screwdriver Desktop mounting: 4 mm hex wrench 1. Referring to the figure below, fit the hood reinforcement fixture to the back of the PCU-3010.
  • Page 15 1. MOUNTING 3. Using the cutouts in the hood, set the hood in place between the knobs and the hood fixing fixtures. Hood Hood fixing fixture (left and right) Cutouts Cutouts 4. Referring to the figure below, push the hood down to align the cutouts with the knobs.
  • Page 16 1. MOUNTING For OP24-62 To install the optional keyboard (Type: SKB-E3U, contained in OP24-62), do the fol- lowing procedure. 1. Referring to the following steps, fit the static electricity prevention sheet (included as optional kit) to the keyboard, then fix the keyboard at the installation location using the double-sided tape (Tape V/H, supplied with the optional kit).
  • Page 17 1. MOUNTING 1.1.5 How to replace the USB protect key and USB dongle You will need a Torx screwdriver (T10) to do the replacement. Turn off the power BEFORE replacing the USB protect key (ENC chart use) and USB dongle (C-MAP chart use). Unfasten the four screws circled in the figure below to open the lid.
  • Page 18 1. MOUNTING 1.1.7 How to replace the fan The life of the fan is approximately five years. Replace the fan when any of the follow- ing occurs. • The recommended replacement interval of five years has passed. • The fan emits strange noises when the processor unit is powered. •...

  • Page 19: Trackball Control Unit (Rcu-030)

    1. MOUNTING Trackball Control Unit (RCU-030) The Trackball Control Unit (RCU-030) can be mounted on a desktop in two configurations. • Desktop with mounting plate (Standard installation) • Flush mounted inside a console (Optional) Mounting considerations When selecting a mounting location, keep the following points in mind: •...
  • Page 20 1. MOUNTING 1.2.2 Flush mounting (optional) You can use the optional FM FIXTURE ASSEMBLY kit (OP24-38) to flush-mount the unit. Type: OP24-38, Code No.: 001-263-190 Name Type FM Fixture Assembly OP24-38-1 Washer Head Screw M4×10 Note: The flush mount location must have a thickness of at least 10 mm, with a max- imum thickness of 20 mm.

  • Page 21: Sensor Adapter Mc-3000S/3020D/3030D (Optional)

    1. MOUNTING Sensor Adapter MC-3000S/3020D/3030D (Optional) Mounting considerations When you select a mounting location, keep in mind the following points: • Locate the equipment away from heat sources because of heat that can build up inside the cabinet. • Take into account the length of the cables to connected to the equipment when choosing an installation location.

  • Page 22: Intelligent Hub Hub-3000 (Optional)

    1. MOUNTING Intelligent Hub HUB-3000 (Optional) Use the optional Intelligent Hub HUB-3000 to connect gateway network or sensor net- work. Do not use this hub to connect other shipboard LAN gateway network or sensor network. Do not connect a PC to this network for other than maintenance. Mounting considerations Keep the following points in mind when selection a mounting location: •...

  • Page 23: Mounting The Switching Hub Hub-100 (Optional)

    1. MOUNTING Mounting the Switching Hub HUB-100 (Optional) Use the optional Switching HUB HUB-100 to connect IEC61162-450 Ed.1 complying sensor network. Do not use this hub to connect other shipboard LAN gateway network or sensor network. Do not connect a PC to this network for other than maintenance. For the mounting procedures, see the operator’s manual for HUB-100 (Pub.

  • Page 24: Radar Connection Box Rcb-002 (Optional)

    1. MOUNTING Radar Connection Box RCB-002 (Optional) You can display signals from up to two external radars on the FMD-3100 by using the RCB-002. The RCB-002 must be connected via the Gateway Network. Mounting considerations Keep the following points in mind when selection a mounting location: •...

  • Page 25: Wiring

    WIRING The illustration on this page shows the general connection between the FMD-3100 and external equipment. For detailed information, see the interconnection diagram at the back of this manual. Many of the cables mentioned are JIS (Japan Industry Stan- dard) cables. If not available locally, use the equivalent. See the cable guide in the Ap- pendix for how to select equivalent cables.
  • Page 26 2. WIRING Wiring considerations • USB cable lengths should be within 5 m, with or without the USB extension cable. Full function cannot be guaranteed if the overall length exceeds 5 m. • The PCU-3010 is not compatible with the USB 3.0 equipment. •...
  • Page 27 [Common Installation Settings] menu. For how to set [Transmission Group], see the instruction manual (E42-01811). • To ensure the security of the FURUNO network, be sure to connect with non-FURU- NO networks via the service gateway (tBOX810-83A-FL). • At least one AMS device must be installed in the navigation equipment.

  • Page 28: Panel Computer Unit Pcu-3010

    2. WIRING Panel Computer Unit PCU-3010 2.1.1 Connections to the PCU-3010 Referring to the figure below, connect the PCU to its respective peripherals. LAN2 HUB-3000 , Sensor Adapter, or VDR HUB-3000: DTI-C5E350 VCV cable Sensor Adapter: FR-FTPC-CY cable LAN1 To HUB-3000 DTI-C5E350 VCV cable Connect drain wire of C3 and C4 here.
  • Page 29 2. WIRING On USB cable connection Fasten the USB cable to the cable clamp with a cable tie (width: 5 mm). • The USB cable connected between USB1 and the Trackball Control Unit should be separately fastened to the cable clamp. •...
  • Page 30 2. WIRING 1. Connect the USB extension cable to the port USB4 on the PCU. 2. Referring to the figure below, make an installation hole where necessary. Dimensions for installation hole 19.2±0.1 Measurement units are in mm 3. Unfasten the nut. 4.
  • Page 31 2. WIRING 2.1.3 Fabricating the power cables For AC power, connect the unit with the supplied AC power cables. For DC power, fab- ricate DPYC-1.5 cable as shown below. Terminal block must also be fitted. For cable clamp location, see paragraph 2.1.6. Cable jacket Sheath 130*...
  • Page 32 2. WIRING 2.1.4 Fabricating LAN cables Fabricate the LAN cable (FR-FTPC-CY, DTI-C5E350 VCV), as shown below. (Wrap both edges of the armor with vinyl tape.) Confirm that the shield of the cable touches to the shell of the modular plug. Shielding 250* Cable jacket...
  • Page 33 2. WIRING 2.1.5 Fabricating, connecting TTYCSLA cable (JIS cable) How to fabricate the TTYCSLA cable Fabricate the TTYCSLA cables as shown below to connect them to the terminal block on the PCU-3010 (See the following page for how to connect wires to the terminal block.) After fabricating the cable, attach the terminal block and EMI ferrite core (supplied).
  • Page 34 2. WIRING How to connect the TTYCSLA cable to the terminal block Connectionfor IEC61162-1 lines Connection for IEC61162-2 lines P4 & P5 Screw Screw terminal terminal Resistor <Procedure> <Procedure> 1. Unfasten appropriate screw. 1. Unfasten appropriate screw. 2. Insert the core wire with the resistor 2.
  • Page 35 2. WIRING How to set input/output specifications for terminal blocks C1 to C4 Port Signal Description IEC61162-2 IEC61162-1 TxD- Serial CH1,Output IEC61162-1/2 TTYCSLA-4 TTYCSLA-1Q TxD+ Serial CH1,Output IEC61162-1/2 ISOGND Isolation GND (CH1) No connection RxD- Serial CH1,Input IEC61162-1/2 TTYCSLA-1Q RxD+ Serial CH1,Input IEC61162-1/2 TxD- Serial CH2,Output IEC61162-1/2...
  • Page 36 2. WIRING 2.1.6 Securing cables to the cable clamp When installing the unit with the desktop option, use the cable clamp to secure the electrical wiring, LAN cable, DC power cable, and video cable (3COX-2P-6C). Cable clamp When not using the cable clamp, drain wires must be connected to the grounding point on the PCU-3010 (See the figure in paragraph 2.1.1).

  • Page 37: Sensor Adapters (Optional)

    2. WIRING Sensor Adapters (Optional) Maximum eight MC-3000S can be connected to a sensor network (for the redundant connection: 16). The MC-3000S (serial input/output, IEC61162-2/1, 4ch) can connect max. 10 sensor adapters using the MC1.5-W cables. To connect the lines to the connector on the sensor adapter, use the rod terminal (fer- rule type, supplied) to maintain performance.
  • Page 38 2. WIRING 2.2.1 MC-3000S connections Unfasten four screws to remove the cover, pass the cables through the clamps and attach the cables to respective connectors. The shield part of the cable (or drain wire) must be fastened by (connected to) the clamp. For TTYCSLA cables, pass the drain wire into the shrinking tube (local supply), then use these crimp-on lugs and screws...
  • Page 39 2. WIRING Connector J5 Signal Description IEC61162-2 IEC61162-1 name TD2-A Serial CH2, output IEC61162-1/2/modbus TTYCS(LA)-4 TTYCS(LA)-4 TD2-B Serial CH2, output IEC61162-1/2/modbus RD2-A Serial CH2, input IEC61162-2/modbus No connec- tion RD2-B Serial CH2, input IEC61162-2/modbus ISOGND2 Isolation, GND (CH2) RD2-H Serial CH2, input IEC61162-1 No connection TTYCS(LA)-4 RD2-C Serial CH2, input IEC61162-1...
  • Page 40 2. WIRING Connector J9 Signal Pin# In/Out Description Used cable name TD7-A Serial CH7, output IEC61162-1 TTYCS-1Q or TTYCSLA-1Q TD7-B Serial CH7, output IEC61162-1 RD7-H Serial CH7, input IEC61162-1 RD7-C Serial CH7, input IEC61162-1 TD8-A Serial CH8, output IEC61162-1 TD8-B Serial CH8, output IEC61162-1 RD8-H Serial CH8, input IEC61162-1...
  • Page 41 2. WIRING TTYCS-1 cable TTYCSLA-1 cable Core: 6 Core: 6 Core: 6 Core: 6 Core: 6 Core: 6 Vinyl tape Vinyl tape Vinyl tape Shield (fold back) Shield (fold back) Shield (fold back) Vinyl tape Vinyl tape Vinyl tape (width: 10) (width: 10) (width: 10) (width: 10)
  • Page 42 2. WIRING 2.2.3 MC-3000S Jumper and MODBUS settings Set the jumper blocks in the MC-CS Board (24P0114) referring to the tables that follow. (J22/J23 are not used) (Not Used) (J20/J21 are not used) MC-CS Board (24P0114) Setting termination resistors on the Jumper block: Use the jumper block J19 to set the termination resistor on/off for the MODBUS communication on the connector J1.
  • Page 43 2. WIRING (Terminal resistor OFF) • When setting the terminal other than starting/ending for the multipoint (CH1 to 4). Jumper block J14 Connector J4 (CH1) SHORT Termination resistor: ON (default setting) OPEN OPEN Termination resistor: OFF SHORT Jumper block J15 Connector J5 (CH2) SHORT Termination resistor: ON (default setting)
  • Page 44 2. WIRING 2. Peel the paper from the case packing, then attach the case packing to the reverse side of the cover and the body unit as shown below. Case packing Case packing Cover (reverse side) Case packing Case packing Body unit 3.
  • Page 45 2. WIRING How to set ACK input (MC-3020D) Use the connectors J3 to J6 on the MC-DIN Board (24P0116) to set the ACK input for ACK1 to ACK8 as shown below. • Input circuit for voltage input 470Ω/ 0.5W Register DC12V_OUT 2.2kΩ...
  • Page 46 2. WIRING Connector J4 ACK3 ACK4 ACK4 Pin # Signal name Remarks ACK3 voltage contact contact voltage DC12V_OUT Pin #1-#2: No connection short DIGI_IN3 MPYC-12 ACK3 In Depending on ACK3 input- DIGI_RTN3 MPYC-12 GND (DC12V) In No connection DC12V_OUT Pin #1-#2: No connec- short tion...
  • Page 47 2. WIRING How to set alarm output (MC-3030D) Use the connector J3 to J6 on the MC_OUT Board (24P0117) to select NC (normal close) or NO (normal open) for alarm output 1 to 8. Connector J3 Signal Alarm1 NO Alarm1 NC Alarm2 NO Alarm2 NC Remarks...
  • Page 48 2. WIRING 2.2.6 Cable fabrication for MC-3020D/3030D connections Using the figures below for reference, fabricate the cables to be connected to the MC-3020D/3030D. MC1.5-W-L600/1000/2000/3000 cable MPYC-12 cable (MC-3020D) (Input) 80 or 80 or 80 or more more more Shield Shield Shield Vinyl tape Vinyl tape...
  • Page 49 2. WIRING 2.2.7 How to set jumper blocks in the sensor adapters MC-3020D/3030D This paragraph shows how to set the MC-DIN Board (24P0116, for MC-3020D) and MC-DOUT Board (24P0117, for MC-3030D). Setting MODBUS addresses: Use the rotary switch (U18) to set the MODBUS address with a digit of number from “0”.
  • Page 50 2. WIRING 2.2.8 MC-3020D/3030D Waterproof case packing OP24-29 (Optional) The optional kit OP24-29 protects the connectors on the MC-3020D/3030D to waterproofing standard IPX2. Case packing (type: OP24-29, code no.: 001-169-960) Name Type Code No. Remarks Case packing (analog) 21-014-2052-2 100-367-961-10 MC-3020D/3030D 1.

  • Page 51: Intelligent Hub Hub-3000 (Optional)

    2. WIRING Intelligent HUB HUB-3000 (Optional) Fix any LAN cables connected to the HUB-3000 to their respective cable clamps using cable ties (supplied). Power port Power Fail DPYC-1.5 cable DPYC-1.5 cable Ground wire (IV-1.25sq., supplied) LAN cable No use. LAN ports to INS network (ECDIS, radar, etc.) Attach the LAN cap (supplied) to the unused connector holes to provide waterproofing standard IPX2.

  • Page 52: Radar Connection Box Rcb-002 (Optional)

    2. WIRING Radar Connection Box RCB-002 (Optional) The RCB-002 is capable of connecting the FMD-3100 with up to two external radar systems. Referring to the figure and table below, connect the respective equipment to the RCB-002. RADAR SIGNAL IN No.1 To external radar MJ-A10SPF0020A (5m, 10 m, 20 m, 30 m) cable RADAR SIGNAL IN No.2...
  • Page 53 2. WIRING 2. Dismantle the seal assembly as shown below. Dismantling the seal assembly STEP 1: Hold the fat end of the seal assembly with both thumbs while placing the index fingernails between the seal and the claw. Use caution to avoid injury. STEP 2: Using the thumbs, gently push the seal out of the claw.
  • Page 54 Tokyo Keiki Inc. BR-3440 series • Model 1835 *: FURUNO radars are only compatible with the CH2 (RADAR SIGNAL IN NO.2 port). Change the jumper settings on the RA/IF board (24P0140) according to the radar to be connected, referring the tables on the next page.
  • Page 55 Using the table below for reference, change the jumper settings to suit the appropriate radar connection. Use the figure on the previous page for jumper locations. Radar to be connected Jumper FURUNO radars JMA-9100 series BR-3440 series #2-3: short #1-2: short...
  • Page 56 2. WIRING This page is intentionally left blank. 2-32...

  • Page 57: Appendix 1Jis Cable Guide

    EX: TTYCYSLA - 4 MPYC - 4 # of cores Designation type Designation type # of twisted pairs TTYCSLA-4 The following reference table lists gives the measurements of JIS cables commonly used with Furuno products: Cable Core Cable Core Diameter Diameter...

  • Page 58: Appendix 2 Rod Terminals

    APPENDIX 2 ROD TERMINALS PCU-3010 Connected cable Signal Connector # Pin # Rod terminal to use name IEC61162-2 IEC61162-1 TxD- TTYCSLA-1Q TxD+ ISOGND AI 0.75-6 GY TTYCSLA-4 No connection RxD- TTYCSLA-1Q RxD+ TxD- TTYCSLA-1Q TxD+ ISOGND AI 0.75-6 GY TTYCSLA-4 No connection RxD- TTYCSLA-1Q...
  • Page 59 APPENDIX 2 ROD TERMINALS MC-3000S, MC-CS Board (24P0114) Connector # Pin # Signal name Rod terminal to use Connected cable 24V_VOUT AI 0.34-6 TQ (blue) 24V_GND MODBUS-A AI 0.14-8 GY (gray) MC1.5-W-Lxxx MODBUS-B Connector # Pin # Signal name Rod terminal to use Connected cable 24V_IN AI 1.5-6 BK (black)
  • Page 60 APPENDIX 2 ROD TERMINALS Connector # Pin # Signal name Rod terminal to use Connected cable TD5-A TD5-B TTYCS-1Q TTYCSLA-1Q RD5-H RD5-C AI 0.75-6 GY (gray) TD6-A TD6-B TTYCS-1Q TTYCSLA-1Q RD6-H RD6-C Connector # Pin # Signal name Rod terminal to use Connected cable TD7-A TD7-B...
  • Page 61 APPENDIX 2 ROD TERMINALS Connector # Pin # Signal name Rod terminal to use Connected cable DV12V_OUT3 DIGI_IN3 DIGI_RTN3 AI 1-6 RD (red) MPYC-12 DC12V_OUT4 DIGI_IN4 DIGI_RTN4 Connector # Pin # Signal name Rod terminal to use Connected cable DV12V_OUT5 DIGI_IN5 DIGI_RTN5 AI 1-6 RD (red)
  • Page 62 APPENDIX 2 ROD TERMINALS MC-3030D, MC-DOUT Board (24P0117) Connector # Pin # Signal name Rod terminal to use Connected cable 24V_IN AI 0.34-6 TQ (blue) 24V_GND MODBUS-A AI 0.14-8 GY (gray) MC1.5-W-Lxxx MODBUS-B Connector # Pin # Signal name Rod terminal to use Connected cable 24V_OUT AI 0.34-6 TQ (blue)

  • Page 63: Appendix 3Digital Interface

    Output sentences ABM, ACK, ACN, ALC, ALF, ALR, ARC, BBM, DDC, EVE, HBT, HTC, OSD, RRT, RTE, VBW, VDR, VSD, WPL, XTE FURUNO proprietary input sentence PFEC (pidat, pireq, VRpio, IIcdo, IImba, SDmsi, rmset) FURUNO proprietary output sentence PFEC (pidat, pireq, IIcdo, IImba, rmset)
  • Page 64 APPENDIX 3 DIGITAL INTERFACE ACN - Alert command $--ACN,hhmmss.ss,aaa,x.x,x.x,c,a*hh<CR><LF> 4 5 6 1. Time (No use) 2. Manufacturer mnemonic code (3 digit alphanumeric code, null) 3. Alert Identifier (0, 1 to 999 or 10000 to 9999999) 4. Alert Instance (0 999999, null) 5.
  • Page 65 APPENDIX 3 DIGITAL INTERFACE ALR - Set alarm state $--ALR,hhmmss.ss,xxx,A,A,c—c*hh<CR><LF> 2 3 4 1. Time of alarm condition change, UTC (000000.00 to 235959.99) 2. Unique alarm number (identifier) at alarm source (000 to 999, null) 3. Alarm condition (A=threshold exceeded, V=not exceeded) 4.
  • Page 66 APPENDIX 3 DIGITAL INTERFACE DTM - Datum reference $--DTM,ccc,a,x.x,a,x.x,a,x.x,ccc*hh<CR><LF> 1 2 3 4 5 6 7 1. Local datum (W84=WGS84 W72=WGS72 S85=SGS85 P90=PE90 999=User defined null) 2. Local datum subdivision code (No use) 3. Lat offset, min (No use) 4. N/S (No use) 5.
  • Page 67 APPENDIX 3 DIGITAL INTERFACE GLL - Geographic position, latitude/longitude $--GLL,llll.ll,a,yyyyy.yy,a,hhmmss.ss,a,x*hh<CR><LF> 1. Latitude (0000.00000 to 9000.00000) 2. N/S 3. Longitude (0000.00000 to 18000.00000) 4. E/W 5. UTC of position (No use) 6. Status (A=data valid V=data invalid) 7. Mode indicator (A=Autonomous D=Differential E=Estimated M=Manual input S=Simulator) GNS - GNSS fix data $--GNS,hhmmss.ss,llll.ll,a,yyyyy.yy,a,c--c,xx,x.x,x.x,x.x,x.x,x.x,a*hh<CR><LF>...
  • Page 68 APPENDIX 3 DIGITAL INTERFACE HDT - Heading, true $--HDT, xxx.x,T*hh<CR><LF> 1. Heading, degrees (0.00 to 360.00) 2. True (T) MTW - Water temperature $--MTW,x.x,C<CR><LF> 1. Water temperature, degrees C (-100.000 to 100.000) MWV - Wind speed and angle $--MWV,x.x,a,x.x,a,A*hh<CR><LF> 1 2 3 4 5 1.
  • Page 69 APPENDIX 3 DIGITAL INTERFACE NRX - Navtex received data $--NRX,xxx,xxx,xx,aaxx,x,hhmmss.ss,xx,xx,xxxx,xxxx,xxxx,A,c--c*hh<CR><LF> 11 12 13 1. Number of sentences (001 to 999) 2. Sentence number (001 to 999) 3. Sequential message ID (00 to 99) 4. Navtex message code (aaxx aa: AA to ZZ xx: 00 to 99, null) 5.
  • Page 70 APPENDIX 3 DIGITAL INTERFACE OSD - Own ship data $--OSD,x.x,A,x.x,a,x.x,a,x.x,x.x,a*hh<CR><LF> 1 2 3 4 5 6 7 8 9 1. Heading, degrees true (0.00 to 359.99, null) 2. Heading status (A=data valid, V=data invalid) 3. Vessel course, degrees true (0.00 to 359.99, null) 4.
  • Page 71 APPENDIX 3 DIGITAL INTERFACE ROT - Rate of turn $--ROT,x.x,A*hh<CR><LF> 1. Rate of turn, deg/min, "-"=bow turns to port (-9999.99 to 9999.99) 2. Status (A=data valid, V=data invalid) RPM - Revolutions $--RPM, a, x, x.x, x.x, A*hh<CR><LF>   1 2 3 1.
  • Page 72 APPENDIX 3 DIGITAL INTERFACE TLB - Target label $--TLB,x.x,c--c,x.x,c--c,…,x.x,c--c*hh<CR><LF> 1. Target number “n” reported by the device 2. Label assigned to target “n” 3. Additional label pairs Comments: 1) This sentence allows several target number/label pairs to be sent in a single message, the maximum sentence length limits the number of labels allowed in a message.
  • Page 73 APPENDIX 3 DIGITAL INTERFACE TTM - Tracked target message $--TTM,xx,x.x,x.x,a,x.x,x.x,a,x.x,x.x,a,c--c,a,a,hhmmss.ss,a*hh<CR><LF> 3 4 5 6 7 8 9 10 11 12 13 1. Target number (00 to 999) 2. Target distance from own ship (0.000 to 99.999) 3. Bearing from own ship,degrees (0.0 to 360.0) 4.
  • Page 74 APPENDIX 3 DIGITAL INTERFACE VDR - Set and drift $--VDR,x.x,T,x.x,M,x.x,N*hh <CR><LF> 1 2 3 4 5 6 1. Direction, degrees (0.00 to 360.00) 2. T=True (fixed) 3. Direction, degrees (0.00 to 360.00, null) 4. M=Magnetic (fixed) 5. Current speed (0 to 99.99) 6.
  • Page 75 APPENDIX 3 DIGITAL INTERFACE VTG - Course over ground and ground speed $--VTG,x.x,T,x.x,M,x.x,N,x.x,K,a*hh <CR><LF> 1 2 3 4 5 6 7 8 9 1. Course over ground, degrees (0.00 to 360.00) 2. T=True (fixed) 3. Course over ground, degrees (No use) 4.
  • Page 76 APPENDIX 3 DIGITAL INTERFACE ACK - Acknowledge alarm $--ACK,xxx*hh<CR><LF> 1. Local alarm number (identifier) (000 to 999, null) BBM - UAIS broadcast binary message !--BBM,x,x,x,x,xx,s--s,x*hh<CR><LF> 1 2 3 4 5 1. Total number of sentences needed to transfer the message (1 to 9) 2.
  • Page 77 APPENDIX 3 DIGITAL INTERFACE XTE - Cross-track error, measured $--XTE,A,A,x.x,a,N,a*hh<CR><LF> 1 2 3 4 5 6 1. Status: A=data valid V=Loran-C blink or SNR warning 2. Status: A=data valid V=Loran-C cycle lock warning flag 3. Magnitude of cross-track error (0.000 to 100.000) 4.
  • Page 78 APPENDIX 3 DIGITAL INTERFACE Serial Interface 110 ohm * RD-A 220 ohm x2 XR33180 TLP2361 RD-B * External resistor required for IEC61162-2 TD-A SP485E TLP2361 TD-B ISOGND PCU-3010: IEC 61162-2/1 input/output TD-A TD-B LTC1535 ISOGND RD-A RD-B 110 ohm* * Set with jumper. 470 ohm Switchable open/close.

  • Page 79: Appendix 4Ra/If Board Jumper Values

    APPENDIX 4 RA/IF BOARD JUMPER VALUES The values for each jumper block on the RA/IF board (24P0140) are shown below. CH1/CH2 signal settings J10/J22 TRG-TERM J1/J8 HD-TERM J3/J16 VID-TERM J5/J18 BP-TERM 1.2 kΩ 75Ω 1.2 kΩ 50Ω 50Ω 75Ω 180kΩ 1.2 kΩ...

  • Page 80: Appendix 5Alert List

    APPENDIX 5 ALERT LIST The table starting from the bottom of the page lists the possible alerts for this equipment. Each alert is listed with alert IDs (ALF and ALR), alert description, and priority/category. This equipment can output alerts in ALF or ALR format. The alert number depends on the output format and may differ between formats.
  • Page 81 APPENDIX 5 ALERT LIST Alert No. Priority/ Alert Name, Meaning and Remedy Category ALF ID ALR ID 3003,2 Name: AP Receive Error Caution/B Meaning: Communication between AP and ECDIS is dis- continued. Remedy: Check the connection in the Autopilot. 3024,1 Name: Off Track Alarm/A Meaning: While monitoring route, ship position deviates...
  • Page 82 APPENDIX 5 ALERT LIST Alert No. Priority/ Alert Name, Meaning and Remedy Category ALF ID ALR ID 3035,6 Name: OFS PROD Area Warning/A Meaning: An Offshore Production Area that is set to Warn- ing/Caution in chart alert is detected inside the check area. Remedy: Be careful of the object mentioned here, on ship's direction.
  • Page 83 APPENDIX 5 ALERT LIST Alert No. Priority/ Alert Name, Meaning and Remedy Category ALF ID ALR ID 3036,3 Name: ITZ Caution/B Meaning: An Inshore Traffic Zone that is set to Warning/ Caution in chart alert is detected inside the check area. Remedy: Be careful of the object mentioned here, on ship's direction.
  • Page 84 APPENDIX 5 ALERT LIST Alert No. Priority/ Alert Name, Meaning and Remedy Category ALF ID ALR ID 3036,13 Name: ATBA Caution/B Meaning: An Areas to be Avoided that is set to Alarm in chart alert is detected inside the check area. Remedy: Be careful of the object mentioned here, on ship's direction.
  • Page 85 APPENDIX 5 ALERT LIST Alert No. Priority/ Alert Name, Meaning and Remedy Category ALF ID ALR ID 3015,21 Name: Lost Position Warning/B Meaning: All position data has been lost for more than 30 seconds. Remedy: Check the connection with all GPS. 3015,22 Name: Lost UTC Signal Warning/B...
  • Page 86 APPENDIX 5 ALERT LIST Alert No. Priority/ Alert Name, Meaning and Remedy Category ALF ID ALR ID 3016,28 Name: Lost LOG(WT) SIG Caution/B Meaning: Speed data from all available SDME has been not available for more than 3 seconds. Remedy: Check the connection with all SDME. Also, check sensor status.
  • Page 87 APPENDIX 5 ALERT LIST Alert No. Priority/ Alert Name, Meaning and Remedy Category ALF ID ALR ID 30603,5 Name: Lost HDG MAG Caution/B Meaning: Heading data of all available magnetic gyro has been not available for more than 3 seconds. Remedy: Check the connection with all magnetic gyro.
  • Page 88 APPENDIX 5 ALERT LIST Alert No. Priority/ Alert Name, Meaning and Remedy Category ALF ID ALR ID 33036,1 Name: UKC Limit Caution/B Meaning: Measured depth from echo sounder is less than UKC limit value. Remedy: Be careful that measured depth is less than UKC limit.
  • Page 89 APPENDIX 5 ALERT LIST Alert No. Priority/ Alert Name, Meaning and Remedy Category ALF ID ALR ID 30303,3 Name: Lost SA3 COM Caution/B Meaning: Communication error with No.3 sensor adapter is detected. 30 seconds timeout. No.3 sensor adapter is turned off, or there is a problem with network. Remedy: Check the connection with No.3 sensor adapter and network.
  • Page 90 APPENDIX 5 ALERT LIST Alert No. Priority/ Alert Name, Meaning and Remedy Category ALF ID ALR ID 30303,12 Name: Lost SA12 COM Caution/B Meaning: Communication error with No.12 sensor adapter is detected. 30 seconds timeout. No.12 sensor adapter is turned off, or there is a problem with network. Remedy: Check the connection with No.12 sensor adapter and network.
  • Page 91 APPENDIX 5 ALERT LIST Alert No. Priority/ Alert Name, Meaning and Remedy Category ALF ID ALR ID 30403,22 Name: Lost GPS2 COM Caution/B Meaning: Ship position data from No.2 GPS has been dis- continued for more than set time. (Set at installation) Default: 60 seconds Remedy: No.2 GPS is turned off, or there is a problem with network.
  • Page 92 APPENDIX 5 ALERT LIST Alert No. Priority/ Alert Name, Meaning and Remedy Category ALF ID ALR ID 30403,41 Name: Lost SDME 1 COM Caution/B Meaning: Speed data from No.1 SDME has been discon- tinued for more than set time. (Set at installation) Default: 60 seconds No.1 SDME is turned off, or there is a problem with network.
  • Page 93 APPENDIX 5 ALERT LIST Alert No. Priority/ Alert Name, Meaning and Remedy Category ALF ID ALR ID 30403,62 Name: Lost Rudder2 COM Caution/B Meaning: Rudder data from No.2 rudder sensor has been discontinued for more than set time. (Set at installation) Default: 60 seconds No.2 Rudder is turned off, or there is a problem with net- work.
  • Page 94 APPENDIX 5 ALERT LIST Alert No. Priority/ Alert Name, Meaning and Remedy Category ALF ID ALR ID 30403,93 Name: Lost BNWAS3 COM Caution/B Meaning: Caution Sentence from BNWAS3 has been dis- continued for more than set time. (Set at installation) Default: 180 seconds BNWAS3 is turned off, or there is a problem with network.
  • Page 95 APPENDIX 5 ALERT LIST Alert No. Priority/ Alert Name, Meaning and Remedy Category ALF ID ALR ID 30403, Name: Lost OTHER1 COM Caution/B Meaning: Data from No.1 other sensor has been discon- tinued for more than set time. (Set at installation) Default: 180 seconds No.1 other sensor is turned off, or there is a problem with network.
  • Page 96 APPENDIX 5 ALERT LIST Alert No. Priority/ Alert Name, Meaning and Remedy Category ALF ID ALR ID 30403, Name: Lost OTHER7 COM Caution/B Meaning: Data from No.7 other sensor has been discon- tinued for more than set time. (Set at installation) Default: 180 seconds No.7 other sensor is turned off, or there is a problem with network.
  • Page 97 APPENDIX 5 ALERT LIST Alert No. Priority/ Alert Name, Meaning and Remedy Category ALF ID ALR ID 30403, Name: Lost OTHER13 COM Caution/B Meaning: Data from No.13 other sensor has been discon- tinued for more than set time. (Set at installation) Default: 180 seconds No.13 other sensor is turned off, or there is a problem with network.
  • Page 98 APPENDIX 5 ALERT LIST Alert No. Priority/ Alert Name, Meaning and Remedy Category ALF ID ALR ID 30403, Name: Lost OTHER19 COM Caution/B Meaning: Data from No.19 other sensor has been discon- tinued for more than set time. (Set at installation) Default: 180 seconds No.19 other sensor is turned off, or there is a problem with network.
  • Page 99 APPENDIX 5 ALERT LIST Alert No. Priority/ Alert Name, Meaning and Remedy Category ALF ID ALR ID 30403, Name: Lost OTHER25 COM Caution/B Meaning: Data from No.25 other sensor has been discon- tinued for more than set time. (Set at installation) Default: 180 seconds No.25 other sensor is turned off, or there is a problem with network.
  • Page 100 Meaning: The temperature of the CPU in the processor unit is rising. Remedy: Turn off the processor unit. Wait several minutes then turn on the power. If the message appears, contact a FURUNO agent or dealer to request service. 30001,19...
  • Page 101 30002,18 Name: Processor Unit CPU board 3.3V Power Error Meaning: Voltage error (3.3V) on the CPU board. Remedy: If this occurs frequently, contact a FURUNO agent or dealer and report the frequency of occurrence. 30002,19 Name: Processor Unit CPU board 12V Power Error Meaning: Voltage error (12V) on the CPU board.
  • Page 103 001-567-110-00 24AN-X-9404 CODE NO. TYPE CP24-03102 工事材料表 INSTALLATION MATERIALS 数量 番 号 名　　称 型名／規格 略　　図 用途／備考 Q'TY OUTLINE NAME DESCRIPTIONS REMARKS +ﾄﾗｽﾀｯﾋﾟﾝﾈｼﾞ　1ｼｭ 6X30 SUS304 SELF-TAPPING SCREW CODE 000-162-614-10 ﾌｪﾙｰﾙ(ﾎﾞｳﾀﾝｼ) AI 0,75-6 GY FERRULE CRIMPING TERMINAL CODE 000-176-411-11 AI 1,5-6 BK ﾌｪﾙｰﾙ(ﾎﾞｳﾀﾝｼ) AI 1,5-6 BK FERRULE CRIMPING...
  • Page 108 22/Aug/2019 H.MAKI...
  • Page 109 IEC61162-1/2 IEC61162-1 ネットワーク機器 STP(CAT5) CABLE NETWORK EQUIPMENT パネルPC部 *2 *3 PANEL COMPUTER UNIT DTI-C5E350_VCV インテリジェントハブ LAN2 PCU-3010 10/20/30m,φ13 INTELIGENT HUB *2 *6 HUB-3000 または センサーアダプター IV-1.25sq. SENSOR ADAPTER PCA100293 MC-3000S(SERIAL 8ch) MC-3020D(DIGITAL IN) MC-3030D(DIGITAL OUT) （詳細はC4473-C02を参照） （REFER TO C4473-C02 FOR DETAIL） IV-1.25sq.

  • Page 110: Interconnection Diagram(S

    選択 SELECT 制御部 センサーアダプター PROCESSOR SENSOR ADAPTER UNIT MC-3000S(SERIAL 8ch) EC-3000 パネルPC部 PANEL COMPUTER UNIT PCU-3000/3010 または OR インテリジェントハブ INTELIGENT HUB HUB-3000 IV-1.25sq. (CD-3x00使用不可） (NOT USED FOR CD-3x00) 3-4間ジャンパー設定 オープン：電圧入力、ショート：電流入力 JUMPER SETTING BETWEEN 3 AND 4; OPEN: VOLTAGE INPUT, CLOSE: CURRENT INPUT IV-1.25sq.
