Smart 16e Shelf User Manual
Menu Descriptions
Menu Descriptions
Main Menu
Initiate a terminal session by pressing the carriage return key until the Login screen appears. The default
login is adtran. The Main menu is displayed following a successful login. The terminal display will be
divided into two sections (see Figure 9).

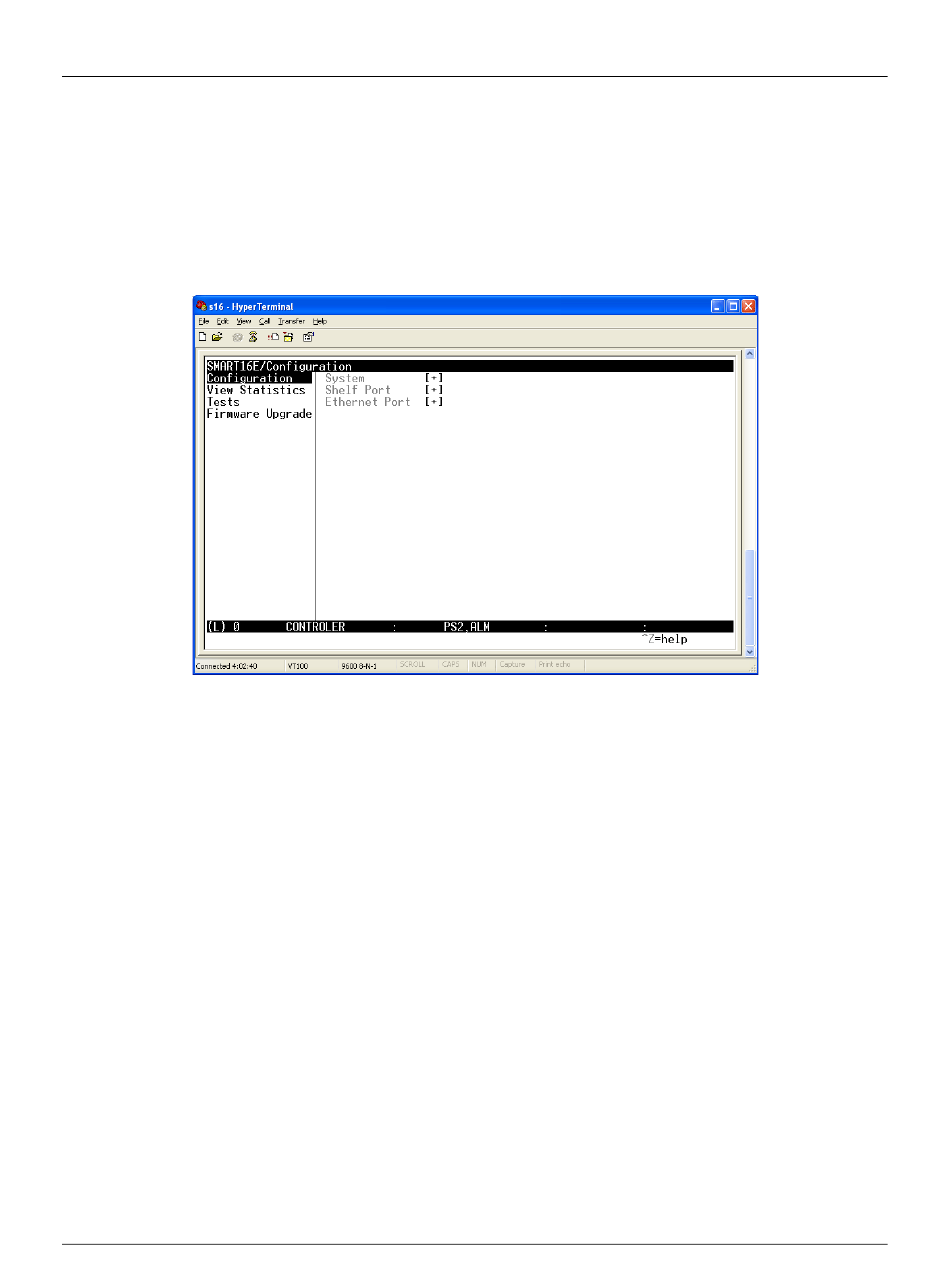

Figure 9. Main Menu
1. The left-hand section displays all options of a menu level.
2. The right-hand section displays the submenus for the option highlighted on the left.
Use the arrow keys to move between the left- and right-hand sections. Options displayed on the right-hand
side that have additional submenus will be followed by a [+]. To view the submenus, cursor to the [+] and
press Enter. The current setting for the options displayed in the right-hand sections will be shown to the
right of the option. To update the current setting, highlight the setting and press the space bar. A window
listing the possible settings will appear. Highlight the desired setting and press Enter. Menu selections that
initiate an action, such as starting a test, will be followed by a <+>. To initiate the action, cursor to the <+>
and press Enter. A controller status line will appear at the bottom of each terminal screen. Table 1 on page
34 lists the possible status messages.
64202023L5-1B
© 2004 ADTRAN, Inc.
33
