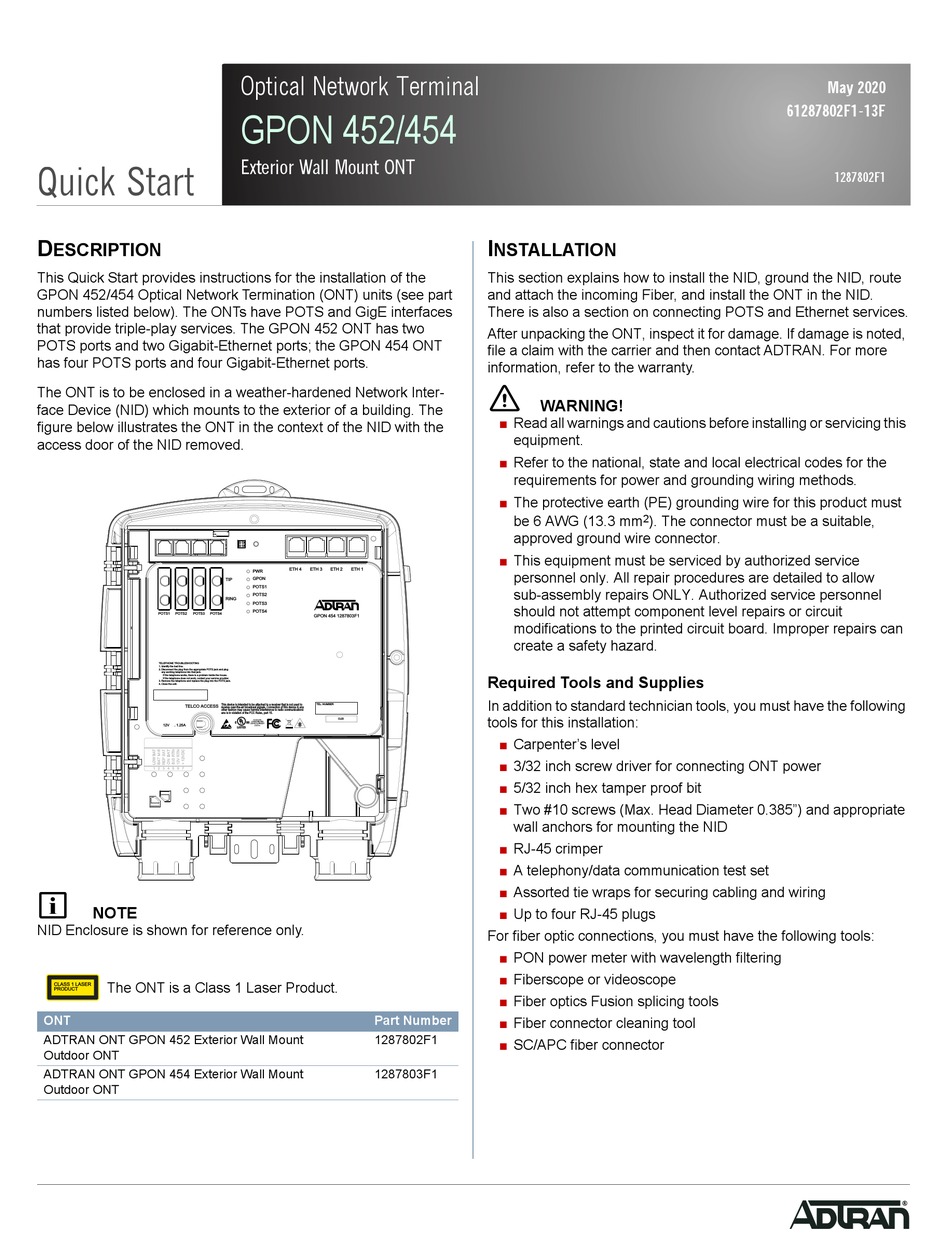

ADTRAN GPON 452 Quick Start Manual

Quick Start
D
ESCRIPTION
This Quick Start provides instructions for the installation of the
GPON 452/454 Optical Network Termination (ONT) units (see part
numbers listed below). The ONTs have POTS and GigE interfaces
that provide triple-play services. The GPON 452 ONT has two
POTS ports and two Gigabit-Ethernet ports; the GPON 454 ONT
has four POTS ports and four Gigabit-Ethernet ports.
The ONT is to be enclosed in a weather-hardened Network Inter-
face Device (NID) which mounts to the exterior of a building. The
figure below illustrates the ONT in the context of the NID with the
access door of the NID removed.
POTS1 POTS2 POTS3 POTS4
TELEPHONE TROUBLESHOOTING
1. Identify the bad line.
2. Disconnect the plug from the appropriate POTS jack and plug
any working telephone into that jack.
If the telephone works, there is a problem inside the house.
If the telephone does not work, contact your service provider.
3. Remove the telephone and replace the plug into the POTS jack.
4. Close the unit.
TELCO ACCESS
12V , 1.25A
g
NOTE
NID Enclosure is shown for reference only.
The ONT is a Class 1 Laser Product.
CLASS 1 LASER
PRODUCT
ONT
ADTRAN ONT GPON 452 Exterior Wall Mount 
Outdoor ONT
ADTRAN ONT GPON 454 Exterior Wall Mount 
Outdoor ONT
Optical Network Terminal
GPON 452/454
Exterior Wall Mount ONT
ETH 4 ETH 3 ETH 2 ETH 1
PWR
GPON
TIP
POTS1
POTS2
RING
POTS3
POTS4
GPON 454 1287803F1
This device is intended to be attached to a receiver that is not used to TEL. NUMBER
receive over-the-air broadcast signals. Connection of this device in any
other fashion may cause harmful interference to radio communications
ans is in violation of the FCC Rules, part 15.
CLEI
Part Number
1287802F1
1287803F1
I
NSTALLATION
This section explains how to install the NID, ground the NID, route
and attach the incoming Fiber, and install the ONT in the NID.
There is also a section on connecting POTS and Ethernet services.
After unpacking the ONT, inspect it for damage. If damage is noted,
file a claim with the carrier and then contact ADTRAN. For more
information, refer to the warranty.
f
WARNING!
■ Read all warnings and cautions before installing or servicing this
equipment.
■ Refer to the national, state and local electrical codes for the
requirements for power and grounding wiring methods.
■ The protective earth (PE) grounding wire for this product must
2
be 6 AWG (13.3 mm ). The connector must be a suitable,
approved ground wire connector.
■ This equipment must be serviced by authorized service
personnel only. All repair procedures are detailed to allow 
sub-assembly repairs ONLY. Authorized service personnel
should not attempt component level repairs or circuit
modifications to the printed circuit board. Improper repairs can
create a safety hazard.
Required Tools and Supplies
In addition to standard technician tools, you must have the following
tools for this installation:
■ Carpenter's level
■ 3/32 inch screw driver for connecting ONT power
■ 5/32 inch hex tamper proof bit
■ Two #10 screws (Max. Head Diameter 0.385") and appropriate
wall anchors for mounting the NID
■
RJ-45 crimper
■
A telephony/data communication test set
■ Assorted tie wraps for securing cabling and wiring
■ Up to four RJ-45 plugs
For fiber optic connections, you must have the following tools:
■ PON power meter with wavelength filtering
■
Fiberscope or videoscope
■ Fiber optics Fusion splicing tools
■ Fiber connector cleaning tool
■ SC/APC fiber connector
May 2020
61287802F1-13F
1287802F1
