Chapter 3
There are five methods of configuration for the Smart 16e Shelf: a VT100 terminal, a DATAMATE (part
number 1200045L1), SLIP, async PPP, and Ethernet 10/100BaseT.
1.

VT100 TERMINAL

Local Configuration

The Smart 16e Shelf may be configured by attaching the VT100 compatible terminal or equivalent to the
port on the rear of the Smart 16e Shelf controller card. The terminal must be set to line
DTE/DCE EIA 232
wrap off, flow control off, and VT100 mode, 8-bit character size, no parity, and one stop bit. If enabled,
the password parameter protects the terminal interface from unauthorized configuration.
The connection to a terminal is made through the EIA-232 DB-9 connector on the rear
segment (see Figure 7). This connection is used for both local and remote configuration.
POWER I/F
64202023L5-1B
Operation
SMART 16e
AC
POWER I/F
L
A
N
10 BASE T
D
T
E
/
D
C
E
E
I
A
2
3
2
ALARM
NO
#1
COM
NO
#2
COM
F1
5A
250V
3AG
F2
115VAC/60 HZ
2.5 AMP

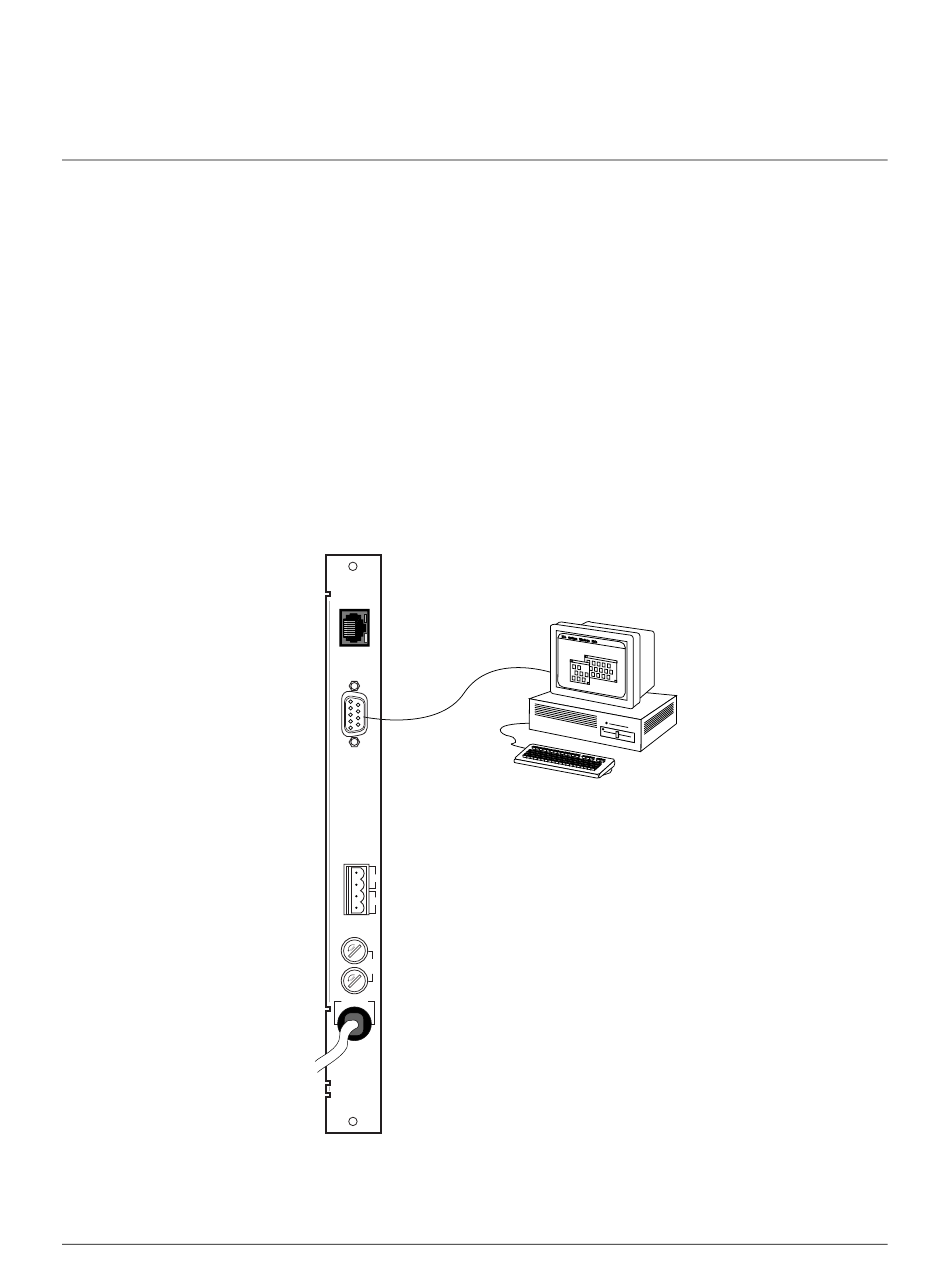

Figure 7. Local Configuration
