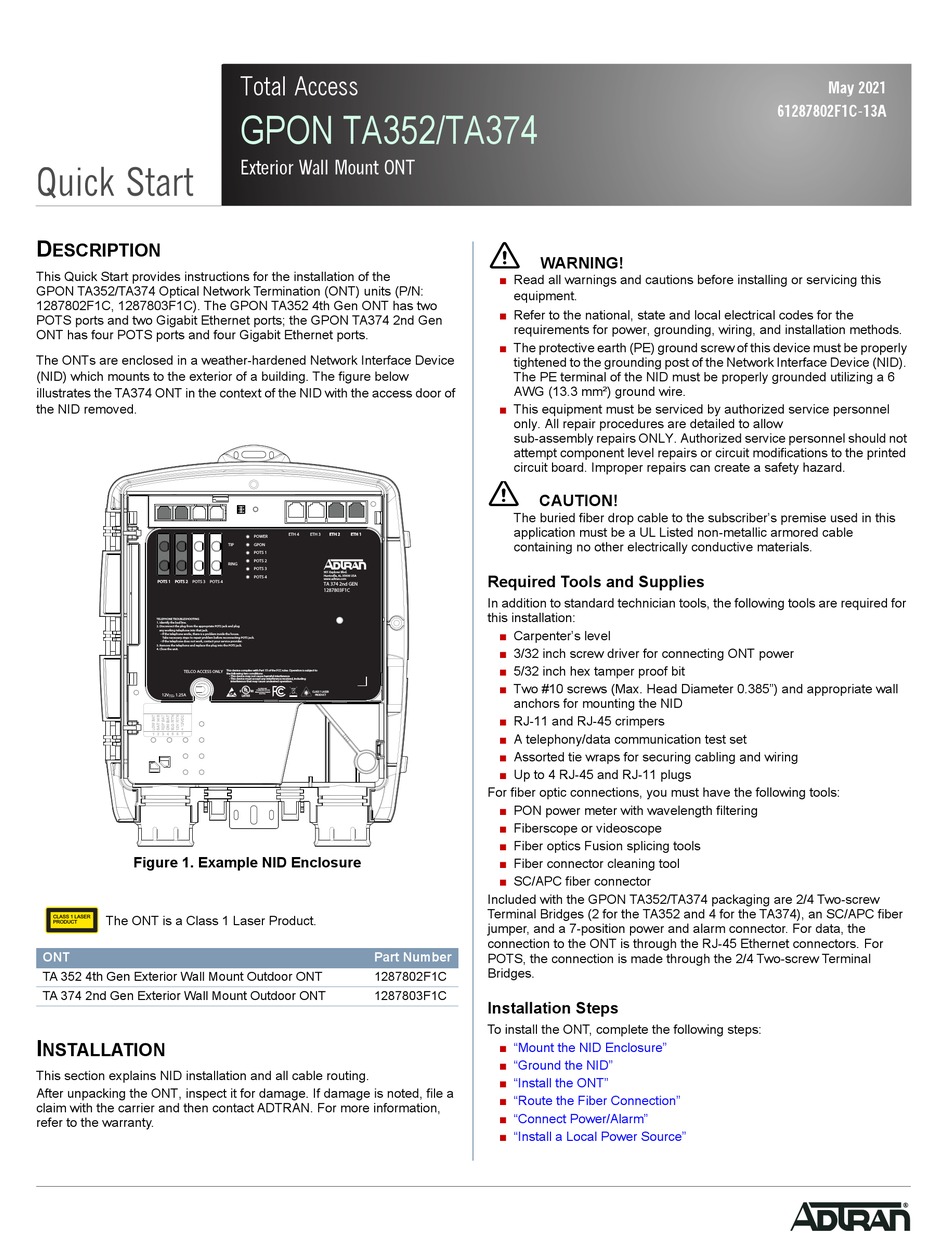

Quick Start
D
ESCRIPTION
This Quick Start provides instructions for the installation of the
GPON TA352/TA374 Optical Network Termination (ONT) units (P/N:
1287802F1C, 1287803F1C). The GPON TA352 4th Gen ONT has two
POTS ports and two Gigabit Ethernet ports; the GPON TA374 2nd Gen
ONT has four POTS ports and four Gigabit Ethernet ports.
The ONTs are enclosed in a weather-hardened Network Interface Device
(NID) which mounts to the exterior of a building. The figure below
illustrates the TA374 ONT in the context of the NID with the access door of
the NID removed.
POTS 1 POTS 1 POTS 2 POTS 3 POTS 4 POTS 2
TELEPHONE TROUBLESHOOTING
1. Identify the bad line.
2. Disconnect the plug from the appropriate POTS jack and plug
any working telephone into that jack.
• If the telephone works, there is a problem inside the house.
Take necessary steps to repair problem before reconnecting POTS jack.
• If the telephone does not work, contact your service provider.
3. Remove the telephone and replace the plug into the POTS jack.
4. Close the unit.
TELCO ACCESS ONLY
12V , 1.25A
Figure 1. Example NID Enclosure
The ONT is a Class 1 Laser Product.
CLASS 1 LASER
PRODUCT
ONT
TA 352 4th Gen Exterior Wall Mount Outdoor ONT
TA 374 2nd Gen Exterior Wall Mount Outdoor ONT
I
NSTALLATION
This section explains NID installation and all cable routing.
After unpacking the ONT, inspect it for damage. If damage is noted, file a
claim with the carrier and then contact ADTRAN. For more information,
refer to the warranty.
Total Access
GPON TA352/TA374
Exterior Wall Mount ONT
ETH 4 ETH 3 ETH 2 ETH 2 ETH 2 ETH 1 ETH 1 ETH 1
POWER
TIP GPON
POTS 1
POTS 2
RING
POTS 3
901 Explorer Blvd.
POTS 4 Huntsville, AL 35806 USA
www.adtran.com
TA 374 2nd GEN
1287803F1C
This device complies with Part 15 of the FCC rules. Operation is subject to
the following two conditions:
• This device may not cause harmful interference
• This device must accept any interference received, including
interference that may cause undesired operation.
ACCESSORY
COMMUNICATION
CLASS 1 LASER
SERVICE EQUIPMENT
E187790 PRODUCT
Part Number
1287802F1C
1287803F1C
f
WARNING!
■ Read all warnings and cautions before installing or servicing this
equipment.
■
Refer to the national, state and local electrical codes for the
requirements for power, grounding, wiring, and installation methods.
■ The protective earth (PE) ground screw of this device must be properly
tightened to the grounding post of the Network Interface Device (NID).
The PE terminal of the NID must be properly grounded utilizing a 6
AWG (13.3 mm²) ground wire.
■ This equipment must be serviced by authorized service personnel
only. All repair procedures are detailed to allow
sub-assembly repairs ONLY. Authorized service personnel should not
attempt component level repairs or circuit modifications to the printed
circuit board. Improper repairs can create a safety hazard.
f
CAUTION!
The buried fiber drop cable to the subscriber's premise used in this
application must be a UL Listed non-metallic armored cable
containing no other electrically conductive materials.
Required Tools and Supplies
In addition to standard technician tools, the following tools are required for
this installation:
■ Carpenter's level
■
3/32 inch screw driver for connecting ONT power
■ 5/32 inch hex tamper proof bit
■ Two #10 screws (Max. Head Diameter 0.385") and appropriate wall
anchors for mounting the NID
■
RJ-11 and RJ-45 crimpers
■ A telephony/data communication test set
■ Assorted tie wraps for securing cabling and wiring
■ Up to 4 RJ-45 and RJ-11 plugs
For fiber optic connections, you must have the following tools:
■
PON power meter with wavelength filtering
■ Fiberscope or videoscope
■ Fiber optics Fusion splicing tools
■ Fiber connector cleaning tool
■
SC/APC fiber connector
Included with the GPON TA352/TA374 packaging are 2/4 Two-screw
Terminal Bridges (2 for the TA352 and 4 for the TA374), an SC/APC fiber
jumper, and a 7-position power and alarm connector. For data, the
connection to the ONT is through the RJ-45 Ethernet connectors
POTS, the connection is made through the 2/4 Two-screw Terminal
Bridges.
Installation Steps
To install the ONT, complete the following steps:
■
"Mount the NID Enclosure"
■ "Ground the NID"
■ "Install the ONT"
■ "Route the Fiber Connection"
■ "Connect Power/Alarm"
■
"Install a Local Power Source"
May 2021
61287802F1C-13A
.
