Connect your transceiver to the same grounding system of your shack carefully! Use minimum length
cables and make certain that the connections are both physically and electrically sound. With poor
grounding, you may risk damaging your equipment, have problems with TVI/BCI or possible distortion of
your transmitted signal.
4.2.

Coaxial Cable

The output of the transceiver is to be connected to the input of the amplifier via RG58 or similar 50 Ohm
cable. For the connection between the power amplifier and the antenna, RG213 or similar coaxial cable
suited for high power is recommended. SO-239 sockets with Teflon insulation are used for the HF INPUT
and OUTPUT connectors.

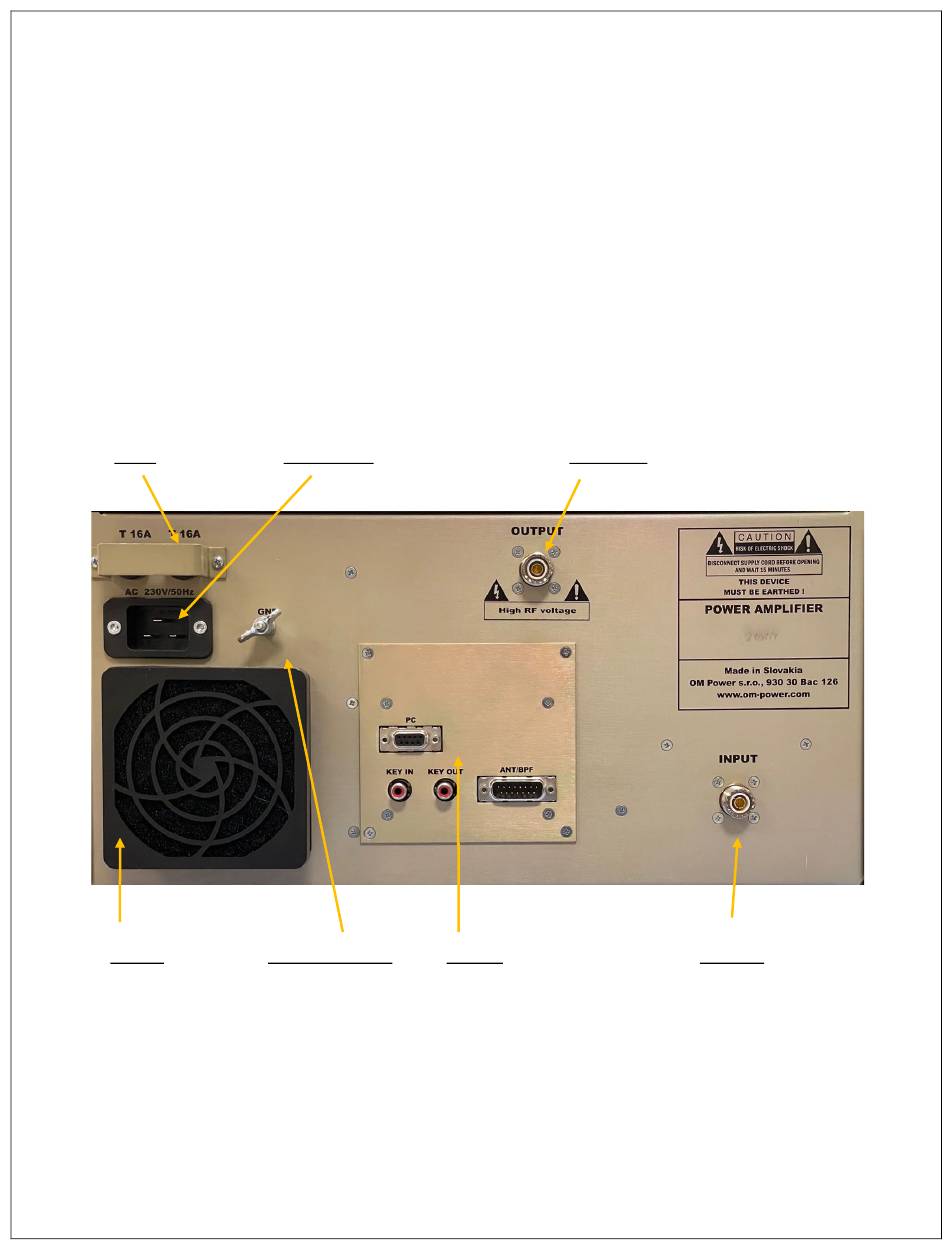

Rear view of the amplifier OM2000+
Fuses
Blower Grounding point
4.3.

Control Cable

Control cable maintains TX / RX switching of the PA (TX GND). The cable is shielded. On the side of the
power amplifier is RCA socket used. On the side of your transceiver you have to use a socket suitable for
this transceiver. During transmitting the middle pin is connected to the ground. The relays of the
Mains Plugs
Control
HF Output
HF Input
