OM POWER OM2000+ Manual page 14

.
BCD code (4 bits) is used for automatic antenna and BPF switching (see Antenna/BPF connector
on the Control panel (rear side of the PA). See section 7.9 for Control and ANT/BPF connectors
pin-out.

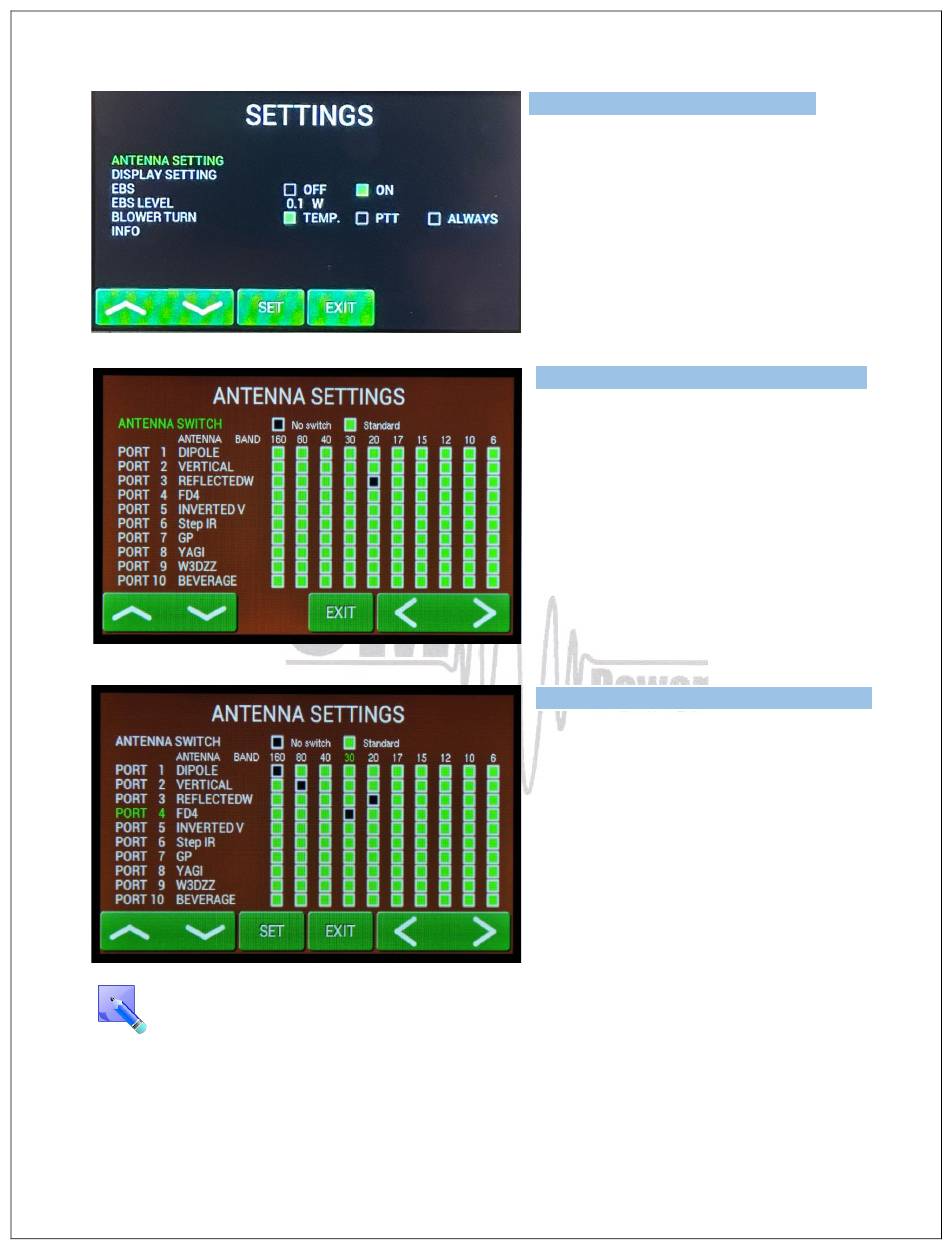

Screen shows settings possibilities for
ANTENNA, DISPLAY, EBS, BLOWER and other
INFO
Type of supported TCVR and
Scroll for choose (up or down) and press SET
frequency are visible on the
AUTO LED is ON.
Press ANTENNA SETTINGS. First select
ANTENNA SWITCH (No switch, Standard).
Use left or right arrows. If you select some
Type of supported TCVR and working
switch, 10 ports for different antennas
frequency are visible on the display.
displays. Generally all of antennas are
allowed in every band (green squares). To
disable some square, select port (up/down),
touch SET for antenna name and then select
band (left/right). Press SET.
Four types of antennas for four different
bands were disabled.
Type of supported TCVR and working
Black square means disabled combination.
frequency are visible on the display.
Press EXIT to go back to SETTINGS menu
working
display.
AUTO LED is ON.
AUTO LED is ON.
14
