Wiring Diagram - Directed Directechs DB3 Installation Manual

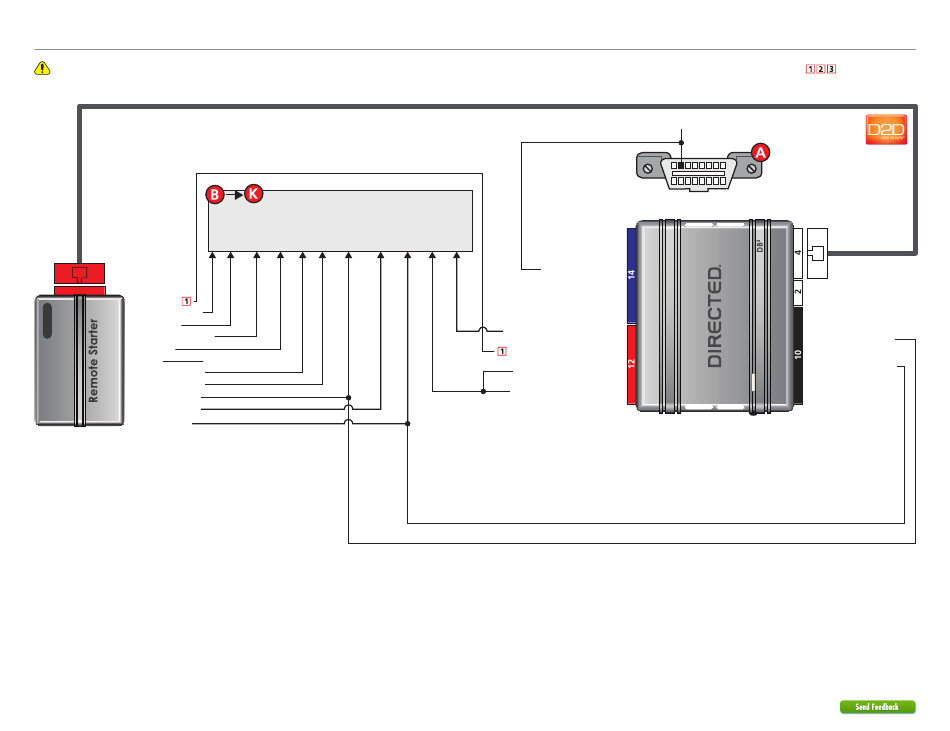

Wiring diagram

Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
D2D Port
(AC) Tach Input
(-) Hood Switch Input
(+) Brake Input
(+) Parking Lights Output
(+) 12V Input
(-) Ground (-) Ground
(+) Accessory 1 Output
(+) Accessory 2 Output
(+) Ignition 1 Output
(+) Ignition 2 Output
(+) Starter Output
6 403.GM5 4.17 2005 Chevrolet Malibu Classic
©2021 VOXX•DEI LLC. All rights reserved.
Refer to the Vehicle wiring reference charts for wire
and connector details related to the standard
connections in the vehicle.
J1850: Violet, pin 2
OBDII
1
Diagnostic Connector
9
J1850: Violet/Yellow: 2
(-) RAP Off Output: Black/White: 1
(AC) Tach Output: Violet/White: 5
R.Code Output: Violet/Green: 8
R.Code Output: Violet/Brown: 9
).
XKD2D65
8
16
9: Pink: (+) Ignition Input
8: Violet: (+) Starter Input
