Communication Unit

Select a location for the communication unit (CU) by following the information shown below.
• The unit is not waterproof. Keep the unit away from water splash.
• Keep the unit away from direct sunlight.
• The temperature and humidity must meet the requirements shown in the equipment specifica-
tions.
• Set the unit away from the exhaust pipes and vents.
• The installation location must have enough cool air.
• Install the unit where shock and vibration meet the requirements shown in the equipment spec-
ifications.
• Keep the unit away from the equipment that creates an electromagnetic field, for example, mo-
tor and generator.
• For maintenance and checking, leave enough space at the sides and rear of the unit. Refer to
the outline drawing and provide some additional length in cables.
• Follow the recommended compass safe distances shown on page i to prevent the interference
to a magnetic compass.
How to install the CU

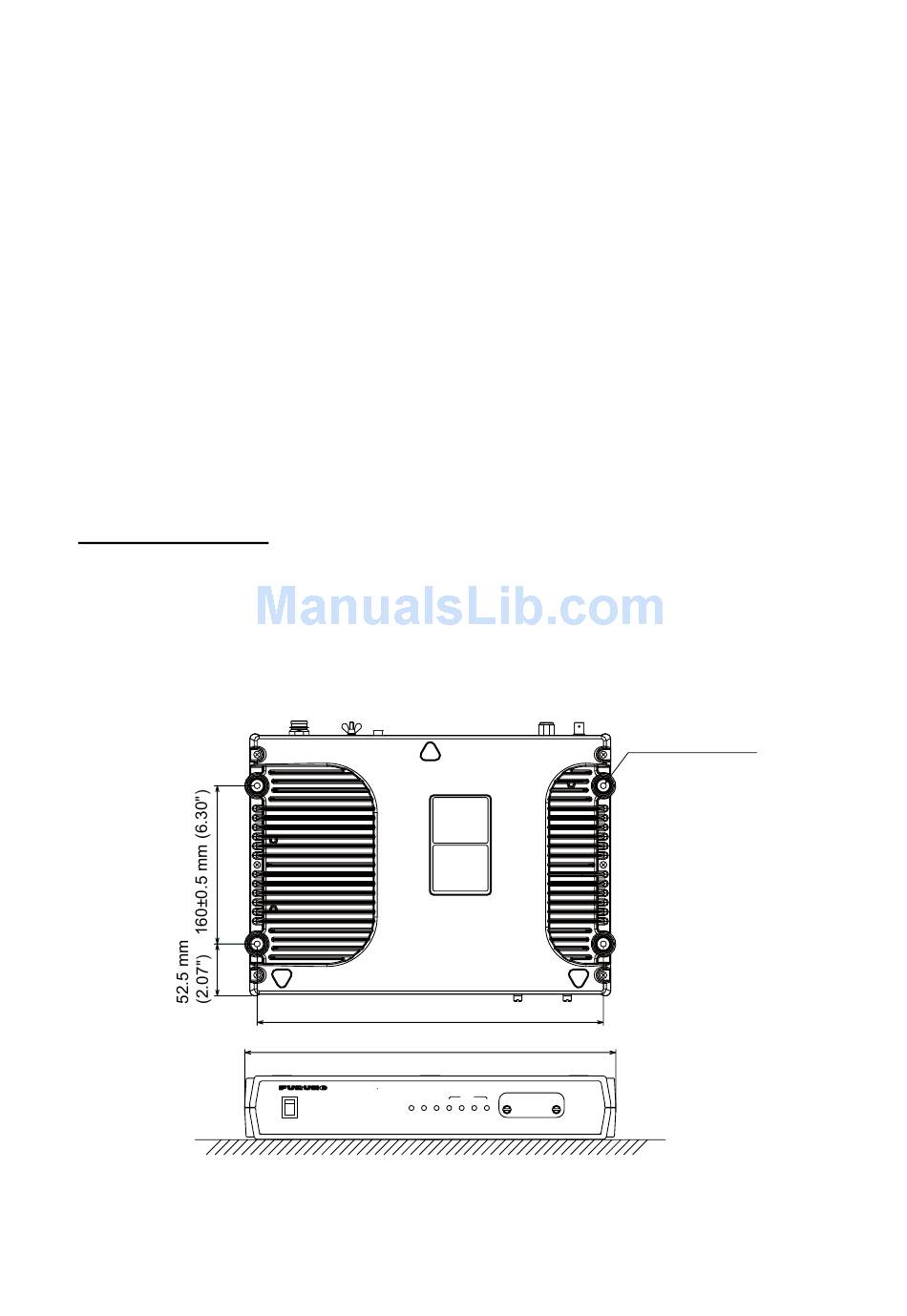

Follow the procedure shown below to install the CU on a desktop. See the outline drawing on page
D-3 for details.
1. Place the template (supplied) of the CU on the installation site.
2. Mark the points for four pilot holes and makes the pilot holes for 5x50 self-tapping screws.
3. Put the unit on the installation site and fix it with four 5x50 self-tapping screws (supplied).
Note: It is necessary to install the Communication Unit on a desktop to comply with IPX2 (drip-
ping) standard. Refer to section 2.5 for directions to how to install on a desktop.
350±0.5 mm (13.78")
375 mm (14.76")
Inmarsat FleetBroadband
I
― POWER READY TX
1
○
○
POWER
12
1. HOW TO INSTALL THE UNIT
4-
Fixing holes
STATUS
POWER OFF BEFORE INSERTING
2 3 4
OR REMOVING SIM
SIM CARD INSIDE
6 mm (0.24")
φ
