LAN Cable Fabrication

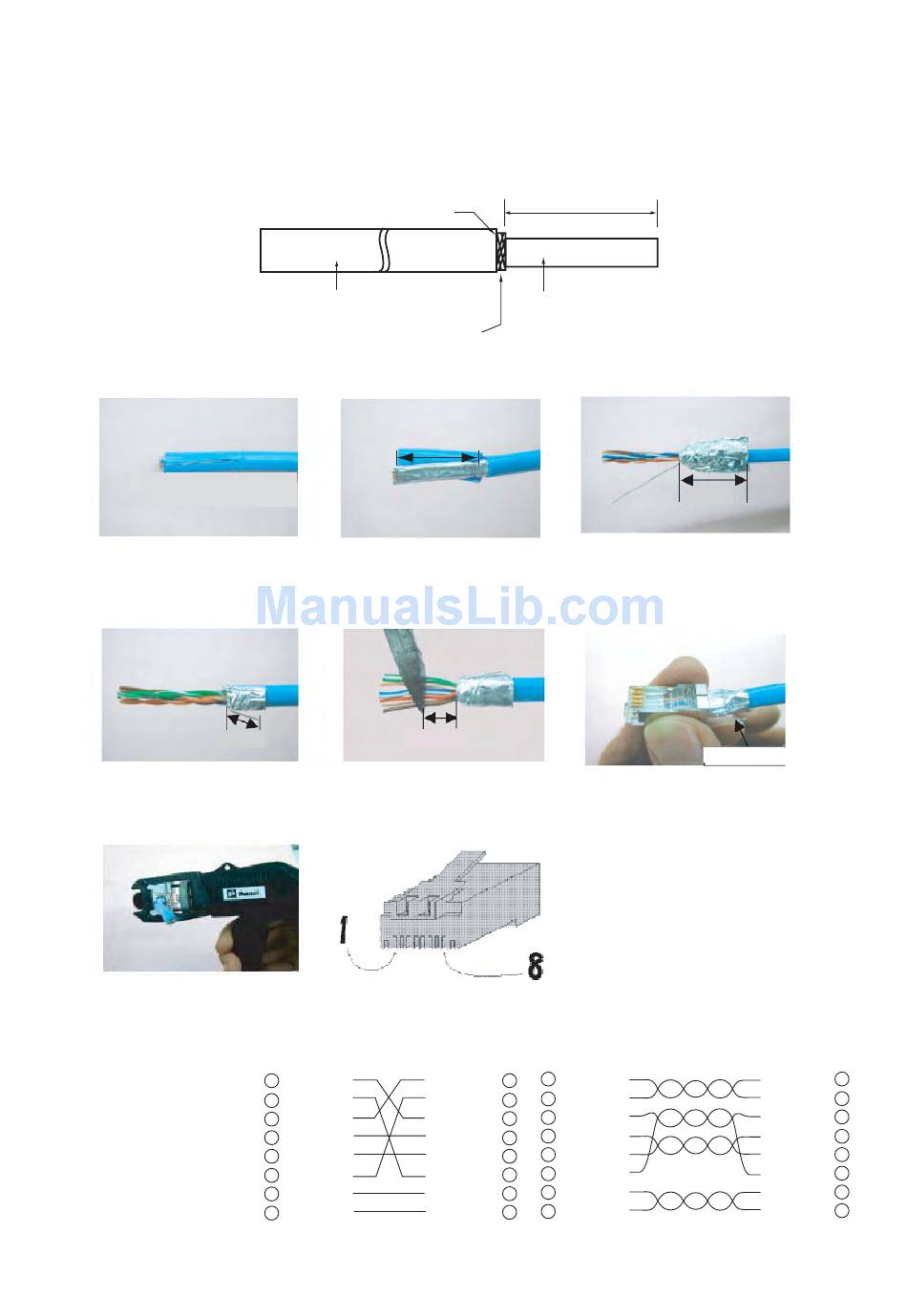

Fabricate an optional LAN cable (FR-FTPC-CY 10, 20, 30, 50 or 100 m) as follows. Cut armor and
outer vinyl sheath as shown below and then connect the modular connector MPS588-C (option)
to both ends.
1
Expose inner vinyl sheath.
4
approx. 9mm
Fold back drain wire and
cut it, leaving 9 mm.
7
Using special crimping tool
MPT5-8 (PANDUIT CORP.),
crimp the modular plug.
Finally check the plug visually.
Armor
Outer vinyl sheath
Wrap vinyl tape
2
25mm
Remove the outer sheath by
approx 25 mm. Be careful
not to damage inner shield
and cores.
5
approx. 11mm
Straighten and flatten the
core in order and cut them,
leaving 11 mm.
[Crose cable]
WHT/ORG 1
1 WHT/GRN
2 GRN
3 WHT/ORG WHT/GRN 3
4 BLU
WHT/BLE 5
5 WHT/BLE
6 ORG
7 WHT/BRN WHT/BRN 7
8 BRN
150
Inner vinyl sheath
3
Fold back the shield, wrap it
onto the outer sheath and
cut it, leaving 9 mm.
6
Insert the cable into the modular
plug so that the folded part of
the shield enters into the plug
housing. The drain wire should
be located on the tab side of
the jack.
1 WHT/ORG
2 ORG
ORG 2
3 WHT/GRN
4 BLU
BLU 4
5 WHT/BLE
6 GRN
GRN 6
7 WHT/BRN
8 BRN
BRN 8
30
2. CONNECTIONS
approx. 9mm
Drain wire
[Straight cable]
WHT/ORG 1
ORG 2
WHT/GRN 3
BLU 4
WHT/BLE 5
GRN 6
WHT/BRN 7
BRN 8
