3. SETTING AFTER INSTALLATION

3.3

Analog Port Setting

Set for analog telephones/faxes that are connected to the TEL ports as follows.

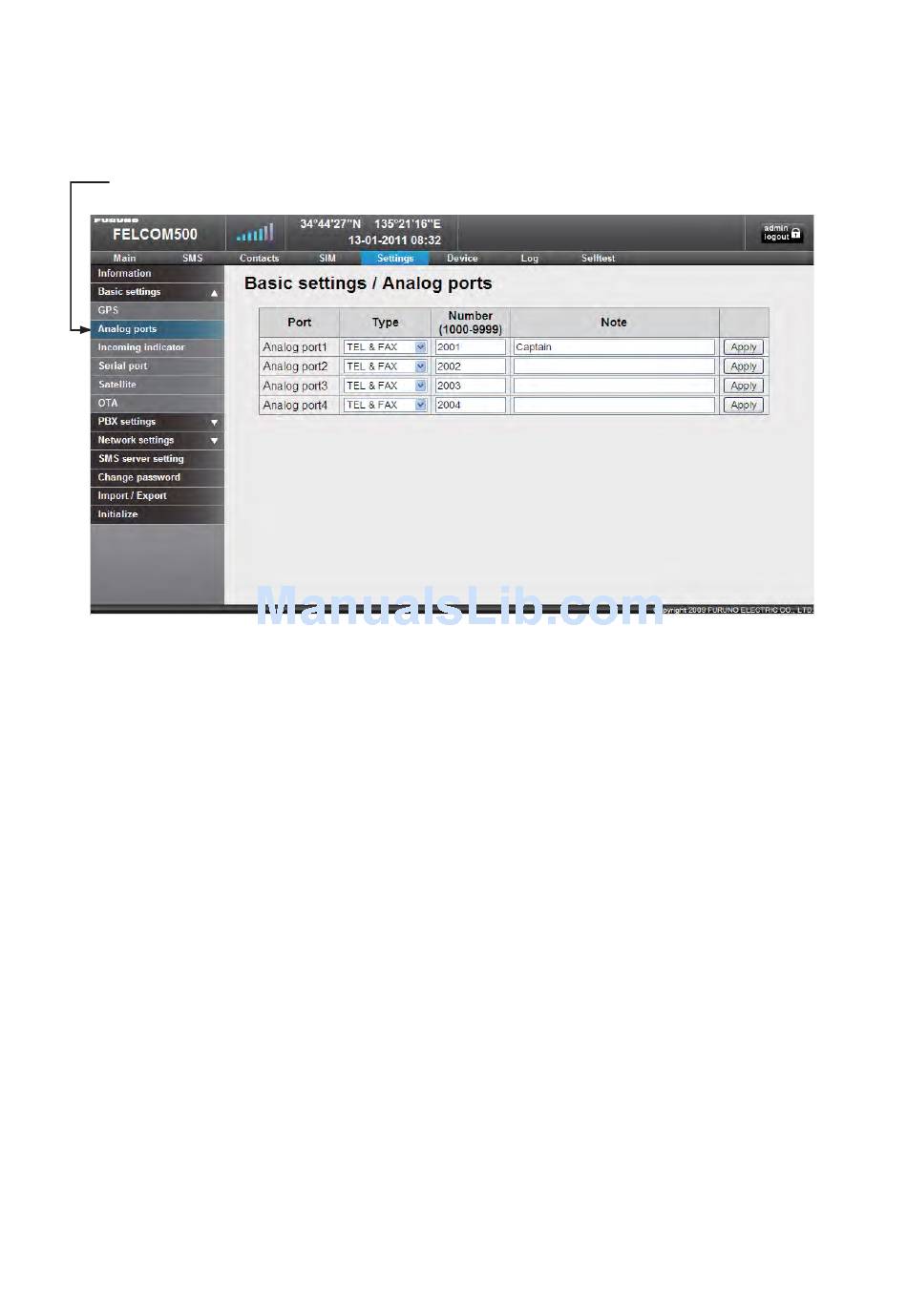

1. Click Analog ports on the Basic settings sub menu.

Analog port

2. In the Type box, select the equipment that is connected to the TEL port.

There are four TEL ports (TEL 1 to TEL 4), TEL 1 is analog port 1 in the table. The selections

are as follows;

• TEL: Analog telephone

• FAX: Facsimile

• TEL & FAX: Facsimile telephone

• No Connection: Nothing connected

3. Key in extension telephone number in the Number box. The setting range is between 1000

and 9999.

4. In the Note box, key in a name; user name, setting location, etc. This is the name a called

party sees. Up to 50 alphanumeric characters can be used. Do not use symbols, "?", "/", etc.

5. Click the Apply button to finish.Do this procedure for each analog port. A number can not be

set more than once.
