Incoming Indicator (option)

Select a location for the incoming indicator by following the information shown below.
• Keep the unit away from water splash.
• Keep the unit away from direct sunlight.
• Set the unit away from the exhaust pipes and vents.
• Follow the recommended compass safe distances shown on page i to prevent the interference
to a magnetic compass.
How to install on the bulkhead or bridge panel
1. Remove four screws from the unit to remove the lid.
2. Fix the case with four 4x16 self-tapping screws (supplied).
3. Reattach the lid with four screws.
4. Connect the cable from the CU.
5. Attach the cable fixture (supplied) with two screws.
6. Fasten the cable to the cable fixture with the cable tie (supplied).
Inmarsat FleetBroadband
Remove 4 screws
to remove the lid.
How to install by the flush mount

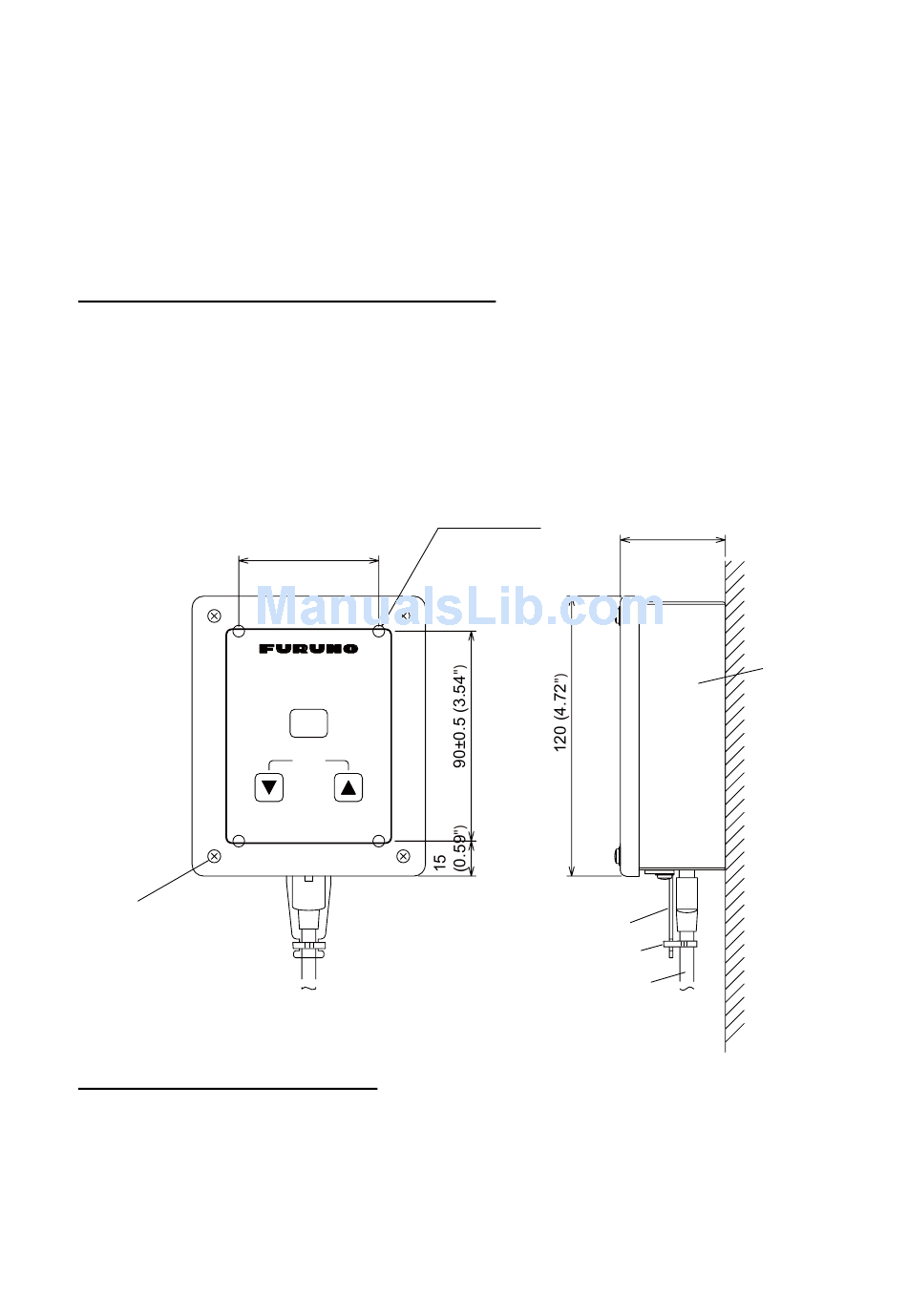

1. Prepare a cutout in the installation location and make four pilot holes. Refer to the outline
drawings.
2. Set the flush mount plate (supplied) to the cutout and fix it with four 4x16 self-tapping screws
(supplied).
3. Remove four screws from the unit to remove the lid.
60±0.5
(2.36")
INCOMING INDICATOR
ACK
VOLUME
1. HOW TO INSTALL THE UNIT
φ
4-
5
(0.20")
FIXING HOLES
Cable fixture
Cable tie
Cable from the CU
14
45
(1.77")
Case
