1. HOW TO INSTALL THE UNIT

4. Fix the case with four M4x8 screws (supplied) to the flush mount plate.

5. Pass the cable from the CU through the bottom of the case.

6. Connect the cable to the port on the lid.

7. Attach the cable fixture (supplied) with two screws.

8. Fasten the cable to the cable fixture with the cable tie (supplied).

9. Reattach the lid to the case with four screws.

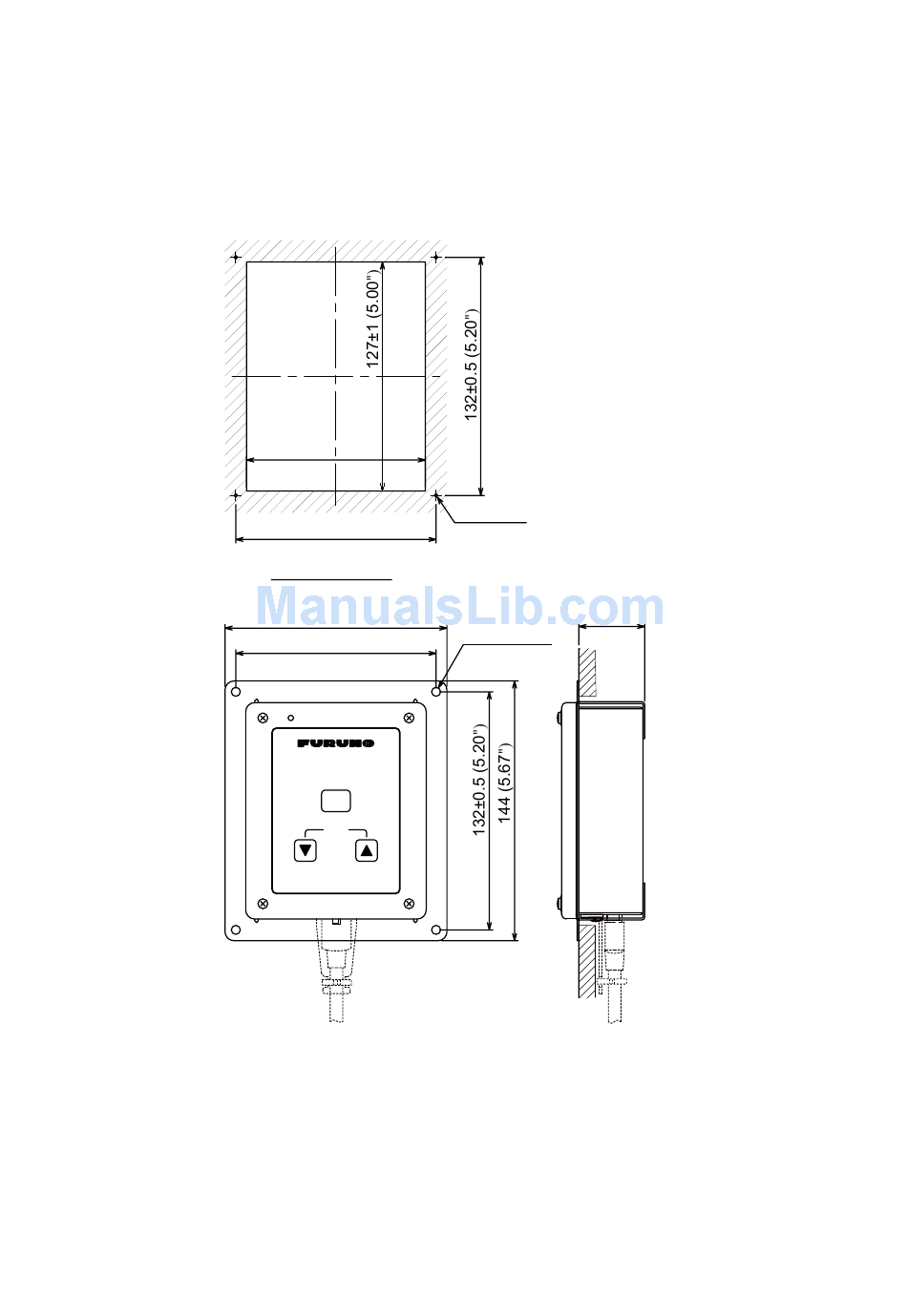

99±1 (3.90")

4-PILOT HOLES

111±0.5

(4.37")

CUTOUT DIMENSIONS

36.5

(1.44")

123

(4.84")

4-φ5

(0.20")

111±0.5

(4.37")

FIXING HOLES

INCOMING INDICATOR

ACK

VOLUME
