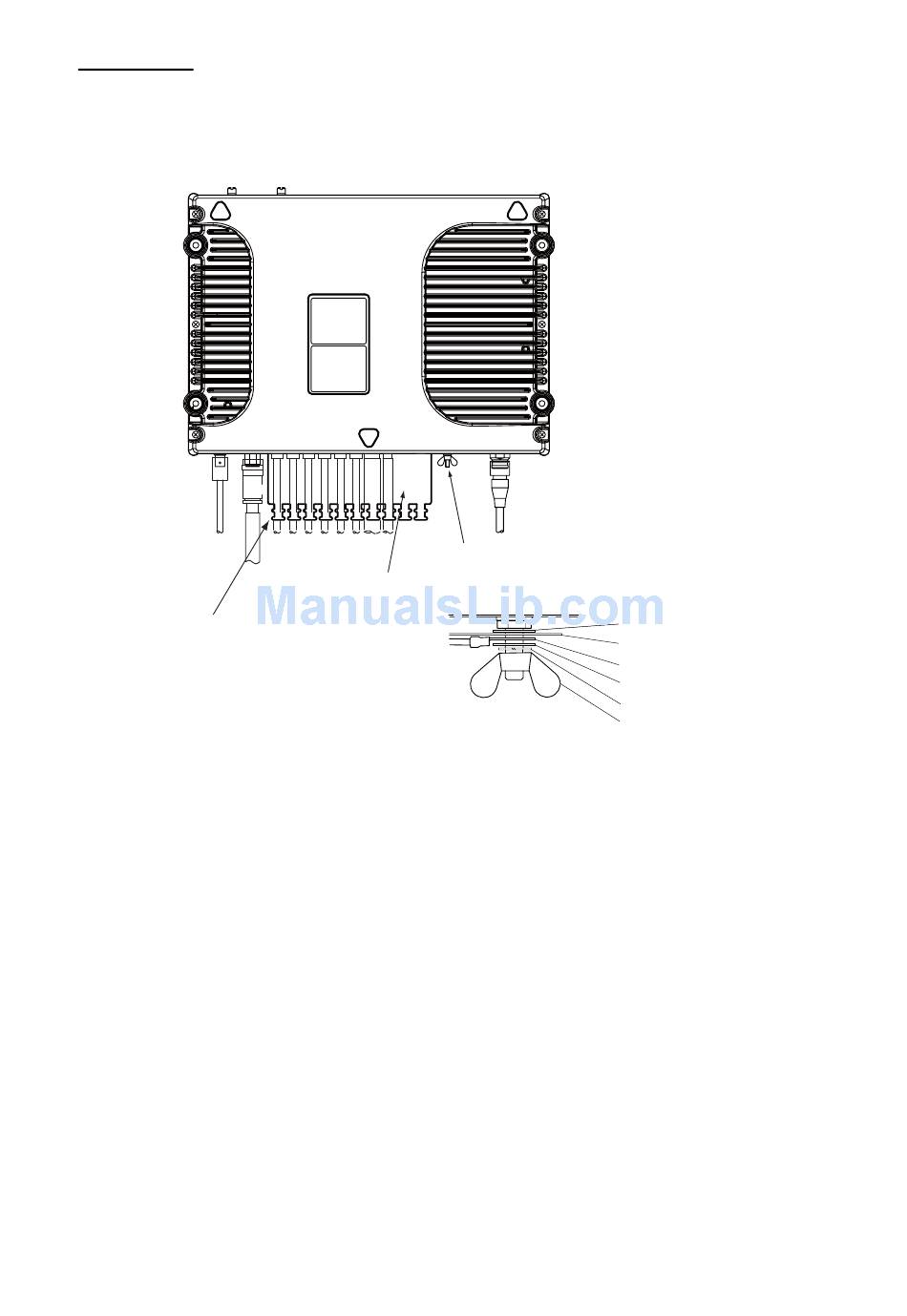

Cable fixture

To connect the LAN and TEL lines, attach the cable fixture (supplied) to the rear panel of the com-

munication unit. Then insert the connectors to each port. Fasten each cable with a cable tie (sup-

plied) to the cable fixture. Connect the braided shield wire of each cable to the ground terminal.

Fasten cable to this post

of cable fixture with a

cable tie.

Ground terminal

(Connect copper strap & braided shield

Cable fixture

of each cable)

2. CONNECTIONS

Flat washer

Copper strap

Crimp-on lug

Flat washer

Spring washer

Wing nut
