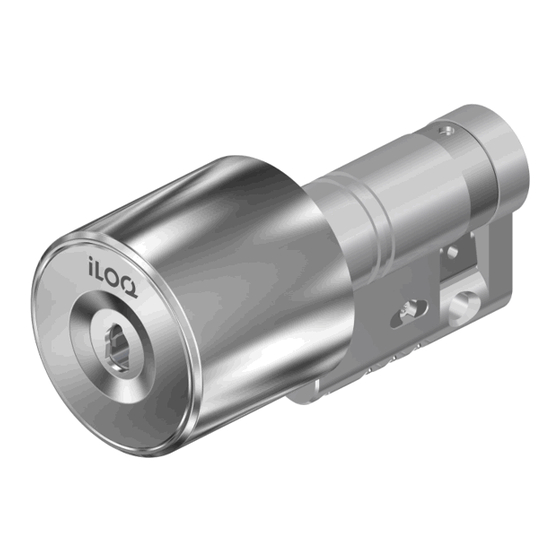

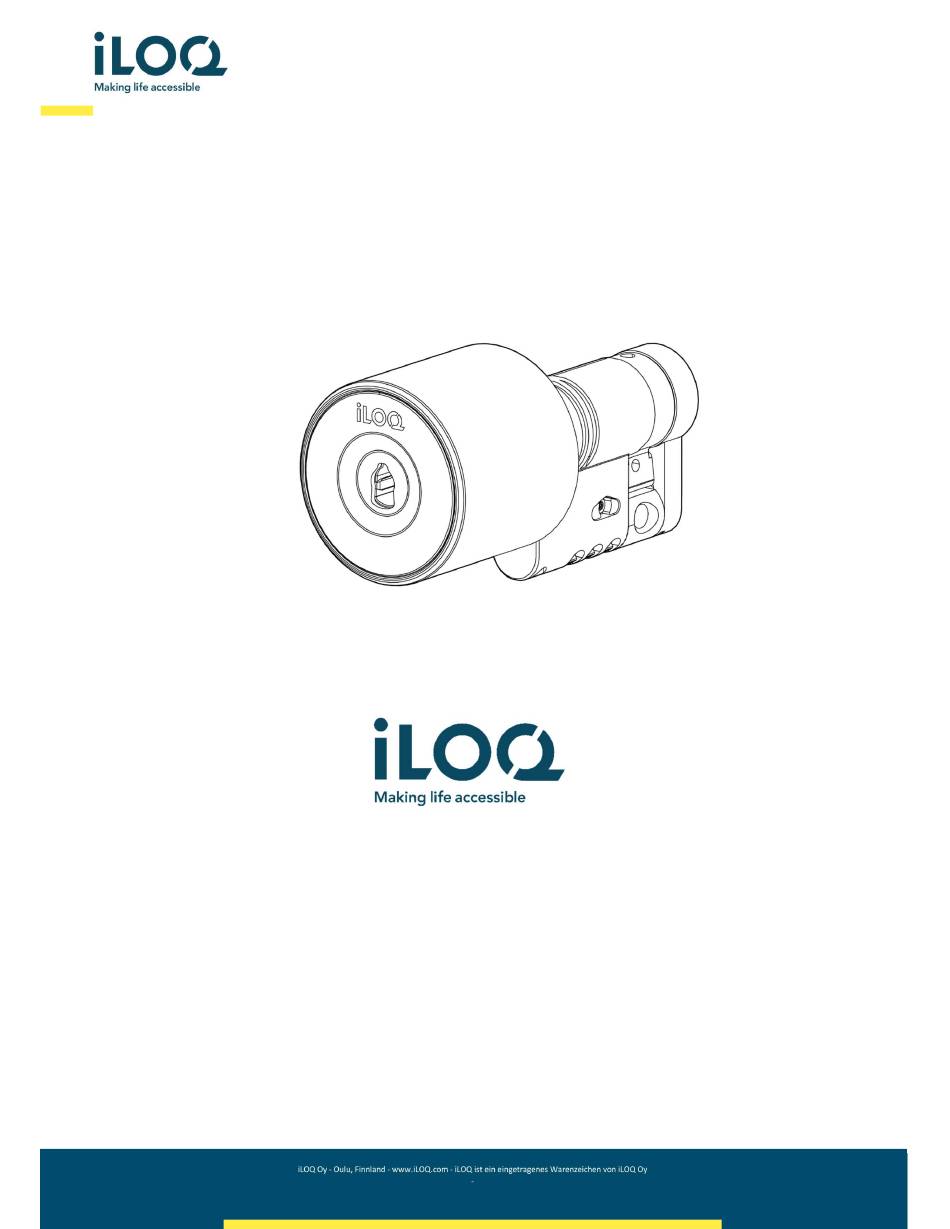

- Page 1 Page 1 of 7 D5S.5X0.SB EUROPROFILE HALF CYLINDER WITH ADJUSTABLE CAM MOUNTING AND CARE INSTRUCTIONS USER GUIDE...
- Page 2 Page 2 of 7 TABLE OF CONTENTS BEFORE INSTALLING ..............3 AFTER INSTALLATION ..............3 CARE ....................3 INSTALLATION OF ILOQ D5S.5X0 SERIES ........4 REMOVING AND INSTALLING THE OUTSIDE KNOB ....5 CAM ADJUSTMENT ............... 6 GENERAL NOTES ................7...
- Page 3 2. iLOQ D5S cylinders must be installed and used carefully without excessive force. 3. The product should not be modified in any way except in accordance with the modifications described in these instructions.
- Page 4 B. Slide the lock cylinder through the key front plate (and cover if applicable). C. Fix the cylinder into the front plate by using an iLOQ fixing screw A10.64 or with the screw shipped with the key switch. If necessary, cut the screw. Use a tightening torque of 0.9...1.1...
- Page 5 Page 5 of 7 5. REMOVING AND INSTALLING THE OUTSIDE KNOB In some installation locations it is necessary to remove the outside knob from the lock cylinder. Follow these instructions to remove the knob. Re-installing with the same instructions in the opposite order.
- Page 6 Page 6 of 7 6. CAM ADJUSTMENT The cam of the cylinder can easily be adjusted to 12 symmetric positions around the 360° (see right picture below), thus it is possible to change the default position of the cam (which is not necessarily the DIN default position). Due to that functionality, the cylinder is prepared for use in e.g.
- Page 7 7. The key is to be kept securely so that only authorized person may have access. 8. In case of losing a key, blacklisting of the lost key shall be done with the iLOQ Manager software and affected locks shall be reprogrammed.
