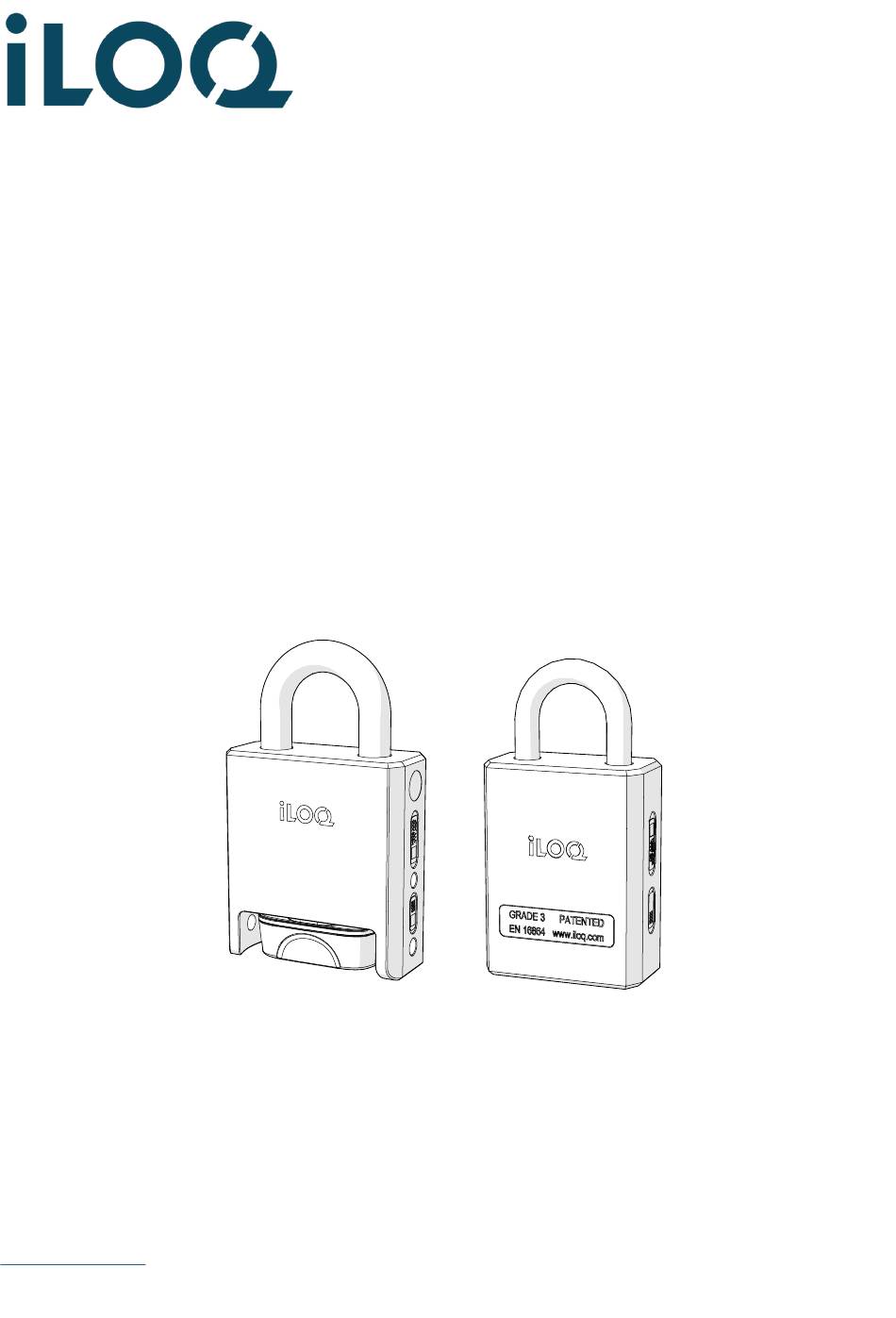

- Page 1 S5/S10/S50 iLOQ Padlocks H5S/H10S H50S.x31.HC H50S.x41.HC User Guide 11/2023 Rev. 4.0 Document ID 189730 iLOQ Oy support.iloq.com...
-
Page 2: Table Of Contents
Locking with a key (H50S.x31 versions) ......... 10 Replacing the iLOQ H50S reader knob ..............12 Disposal of decommissioned products ..............13 Compliance ......................14 iLOQ H5S/H10S padlocks ................14 iLOQ H50S padlocks ..................14 Document ID - 189730 iLOQ S5/S10/S50 (iLOQ H5S, iLOQ H10S, iLOQ H50S) -
Page 3: Safety Information
• The key has to be kept securely so that only an authorized person may have access. • In case of losing a key, blocklisting of the lost key shall be done with the iLOQ Manager software and affected locks shall be reprogrammed. -
Page 4: Care & Maintenance

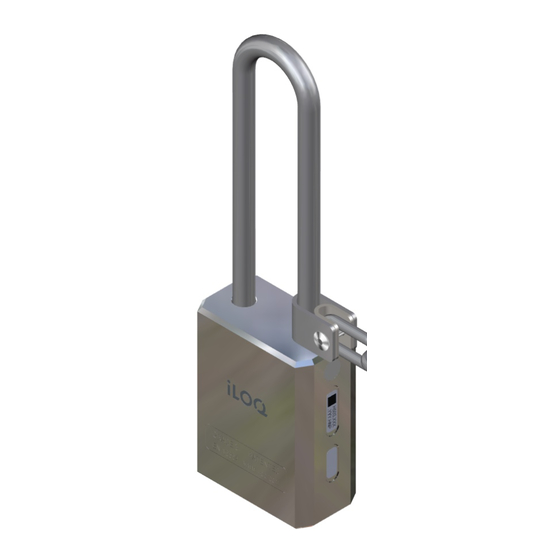

• Install the padlocks so that they hang freely and cannot be submerged in water. 90° • Use a rain cover (iLOQ A10.73 or A10.74) to ensure the longevity and functionality of the padlocks. • An accessory chain (iLOQ AH50.10, AH50.11 or AH50.12) can be used to secure the padlocks to the installation site. -
Page 5: Operating Instructions For Iloq H5S/H10S Padlock
5. Operating instructions for iLOQ H5S/H10S padlock 5.1 Opening the iLOQ H5S/H10S Padlock 1. To open the H5S/H10S padlock, insert the iLOQ key slowly and turn clockwise. 2. Pull the shackle open. Document ID - 189730 iLOQ S5/S10/S50 (iLOQ H5S, iLOQ H10S, iLOQ H50S) -
Page 6: Closing The Iloq H5S/H10S Padlock
5.2 Closing the iLOQ H5S/H10S Padlock 1. Close the shackle. 2. Insert the iLOQ key slowly and turn counterclockwise. 3. After closing the lock, ensure that the knob is in locked position and the padlock remains closed. Document ID - 189730... -
Page 7: Operating Instructions For Iloq H50S Padlock
To open the H50S padlock, you can either use: • An iLOQ S50 Key Fob (with a valid access right), by placing the Key Fob in the middle of the black knob as shown on the left hand side picture. - Page 8 2. Turn the reader knob clockwise 180°. The lock stays in the open-status for 5 to 15 seconds and automatically returns back to the locked-status if not opened (depending on the configured lock opening time). Document ID - 189730 iLOQ S5/S10/S50 (iLOQ H5S, iLOQ H10S, iLOQ H50S)
-
Page 9: Closing The Iloq H50S Padlock
3. Pull the shackle open. 6.2 Closing the iLOQ H50S Padlock 6.2.1 Locking manually (H50S.x41 versions) 1. Close the shackle. Document ID - 189730 iLOQ S5/S10/S50 (iLOQ H5S, iLOQ H10S, iLOQ H50S) -
Page 10: Locking With A Key (H50S.x31 Versions)
3. After closing the lock, ensure that the knob is in locked position and the padlock remains closed. 6.2.2 Locking with a key (H50S.x31 versions) 1. Close the shackle. Document ID - 189730 iLOQ S5/S10/S50 (iLOQ H5S, iLOQ H10S, iLOQ H50S) - Page 11 (depending on the configured lock opening time). 4. After closing the lock, ensure that the knob is in locked position and the padlock remains closed. Document ID - 189730 iLOQ S5/S10/S50 (iLOQ H5S, iLOQ H10S, iLOQ H50S)
-
Page 12: Replacing The Iloq H50S Reader Knob
2. Before installing the new knob, add a small amount of CRC silicon grease to the knobs IP gasket. 3. Insert the new knob on and tighten the fixing screw (1.5 Nm). Document ID - 189730 iLOQ S5/S10/S50 (iLOQ H5S, iLOQ H10S, iLOQ H50S) -
Page 13: Disposal Of Decommissioned Products
Never discard an electrical appliance in household waste. Follow the local laws and regulations for safe and environmentally friendly product disposal. Before discarding products, bear in mind that most iLOQ products are reusable. All programmable products can be reset to factory settings, after which they can be reused in another system. -
Page 14: Compliance
SIMPLIFIED EU DECLARATION OF CONFORMITY: Hereby, iLOQ Oy declares that the radio equipment type H50S Padlocks are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.iloq.com/en/declaration-of-compliance/... - Page 15 • Consult the dealer or an experienced radio/TV technician for help. ISED Innovation, Science and Economic Development Canada (ISED) The conformity was assessed in accordance the following standard: ISED - ICES 003, Issue 7: 2020 - class B Document ID - 189730 iLOQ S5/S10/S50 (iLOQ H5S, iLOQ H10S, iLOQ H50S)
- Page 16 S5/S10/S50 iLOQ Padlocks H5S/H10S H50S.x31.HC H50S.x41.HC User Guide iLOQ support.iloq.com Elektroniikkatie 10 90590 Oulu Finland...
