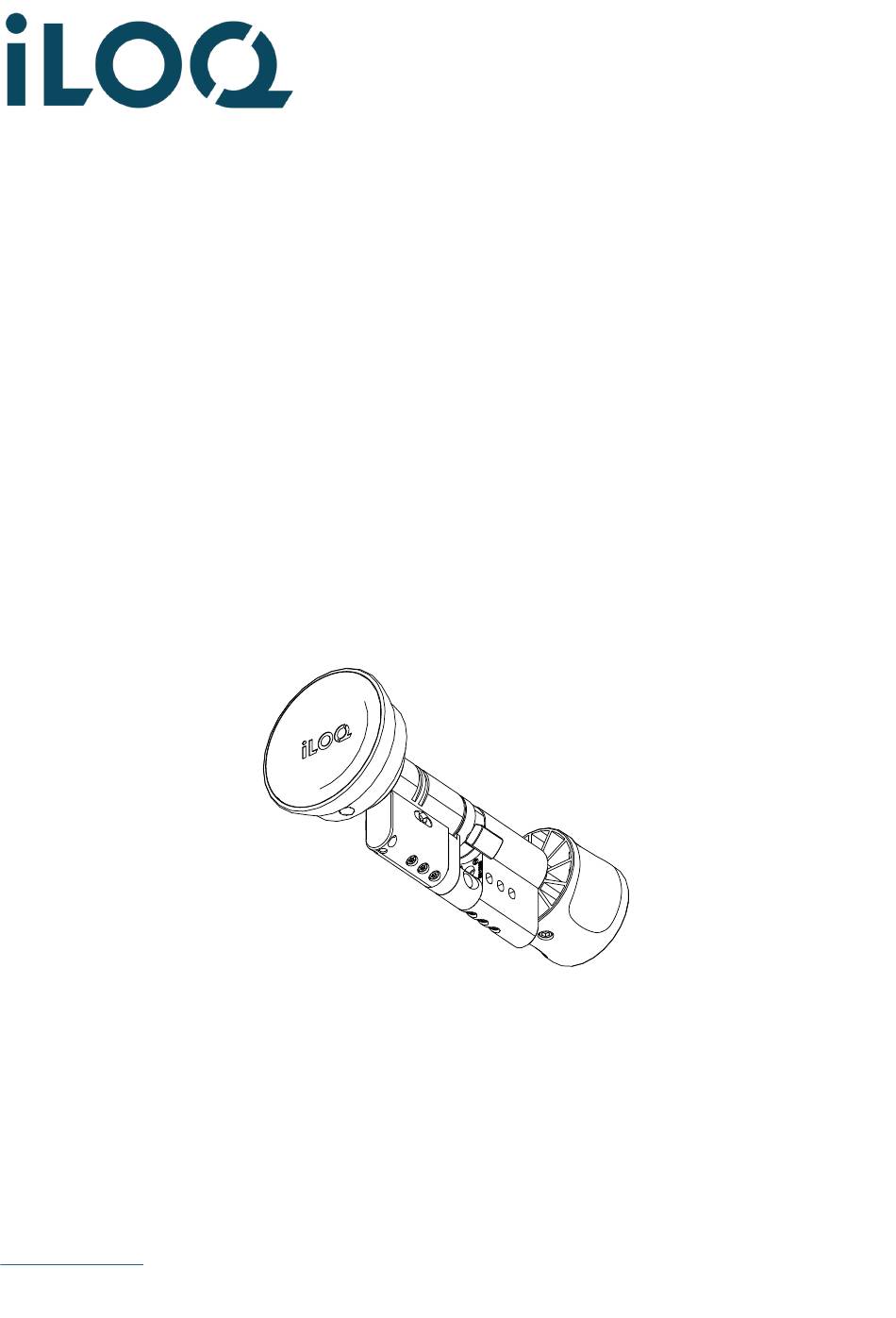

- Page 1 S50 D50S.XXXB.SD Europrofile Lock Cylinder User Guide 11/2024 Rev. 2.1 Document ID 307322 iLOQ Oy support.iloq.com...
-
Page 2: Table Of Contents
Mandatory precautions ................. 3 General notes....................4 Manufacturers involvement ................4 Installation ......................5 iLOQ D50S.1XXB.SD series ................5 iLOQ D50S.2XXB.SD series ................6 iLOQ D50S.3XXB.SD series ................9 Knob change / distance adjustment ..............12 Cylinder extensions ....................13 5 –... -
Page 3: Safety Information
• The access key is to be kept secure so that only an authorized person can use it. • In case of losing the access key, blocklisting of the lost key shall be done with the iLOQ Manager software and affected locks shall be reprogrammed. -
Page 4: General Notes
General notes • The iLOQ cylinders are successfully tested according the EN 1634-1 (EUFI29-19003368) for 120 minutes in a hinged single leaf steel door. • Where the D50S cylinder is manufactured in more than one size, make sure that you select the correct size. -
Page 5: Installation
Make sure that the cam is pointing downwards. 2. Secure the cylinder to the lock case with an iLOQ fixing screw (A10.64). Use a tightening torque of 0.9 ...1.1 Nm. If necessary, cut the screw to the correct length (calculation screw length: L = backset + 10 mm). -
Page 6: Iloq D50S.2Xxb.sd Series
D50S.2XXB.SD series 1. Slightly loosen the fixing screw of the knob with a Torx T10 tool. Loosen the fixing screw (counter-clockwise) just enough to be able to remove the knob, do not remove the screw completely. 2. Remove the loosened knob from the cylinder. - Page 7 3. Slide lock cylinder into the lock case. Make sure that the cam is pointing downwards. 4. Secure the cylinder to the lock case with an iLOQ fixing screw (A10.64). Use a tightening torque of 0.9...1.1 Nm. If necessary, cut the screw to the correct length (calculation screw length: L = backset + 10 mm).
- Page 8 5. Slide the knob onto the knob shaft. NOTE! The knob distance can be adjusted if needed. See section “Knob change/distance adjustment” for more information. 6. Tighten the fixing screw (clockwise). Use a tightening torque of 1.5 Nm. Document ID - 307322 D50S.XXXB.SD iLOQ S50 (...
-
Page 9: Iloq D50S.3Xxb.sd Series
D50S.3XXB.SD series 1. Slightly loosen the fixing screw of the turning knob with a 2 mm Allen key (counter-clockwise). Loosen the fixing screw just enough to be able to remove the knob. Do not remove the screw completely. 2. Remove the turning knob from the cylinder body. - Page 10 3. Slide the lock cylinder into the lock case. Make sure that the cam is pointing downwards. 4. Secure the cylinder to the lock case with an iLOQ fixing screw (A10.64). Use a tightening torque of 0.9...1.1 Nm. If necessary, cut the screw to the correct length (calculation screw length: L = backset + 10 mm).
- Page 11 5. Slide the turning knob onto the shaft. 6. Tighten the screw (clockwise). Use a tightening torque of 0.55…0.65 Nm. Document ID - 307322 D50S.XXXB.SD iLOQ S50 (...
-
Page 12: Knob Change / Distance Adjustment
2. Adjust the knob to the correct distance and tighten the screw (clockwise), or remove the knob and replace with a new one. Use a tightening torque of 1.5Nm. The screw will find its way into the nearest screw hole and secure the knob into position. Document ID - 307322 D50S.XXXB.SD iLOQ S50 (... -
Page 13: Cylinder Extensions
Parts included in the 5 mm / 10 mm extension delivery: • 5 / 10 mm cylinder extension pieces 1. Remove the three fixing screws with a Torx T6 tool (counter-clockwise) and set the screws aside for later use. Document ID - 307322 D50S.XXXB.SD iLOQ S50 (... - Page 14 4. Align the housing with the extension piece and secure the extension assembly with the fixing screw set aside earlier (clockwise). Use a T10 Torx tool (tightening torque 2.5 Nm). NOTE! Make sure that the assembly of the cylinder extension is done in a dry environment. Document ID - 307322 D50S.XXXB.SD iLOQ S50 (...
- Page 15 6. Secure the extended lock cylinder assembly with two of the fixing screws set aside earlier (clockwise.) Use a Torx T6 tool and a tightening torque of 0.55…0.65 Nm. Dispose of the remaining screw in accordance with local rules and regulations. Document ID - 307322 D50S.XXXB.SD iLOQ S50 (...
-
Page 16: Mm Extension
Make sure that the parts inside the cylinder do not fall after pulling the modules apart. E.g., put the cylinder on the black knob and pull the unit vertical away. Document ID - 307322 D50S.XXXB.SD iLOQ S50 (... - Page 17 Make sure that you do not damage the O-rings. Dispose of the removed part in accordance with local rules and regulations. 5. Install the extension to the backbone. The O-rings secure the assembly. Document ID - 307322 D50S.XXXB.SD iLOQ S50 (...
- Page 18 Use a Torx T6 tool (clockwise) and a tightening torque of 0.55…0.65 Nm. NOTE! Make sure that you use five fixing screws as displayed in the picture. Document ID - 307322 D50S.XXXB.SD iLOQ S50 (...
-
Page 19: Mm Extension
Make sure that the parts inside the cylinder do not fall after pulling the modules apart. E.g., put the cylinder on the black knob and pull the unit vertical away. Document ID - 307322 D50S.XXXB.SD iLOQ S50 (... - Page 20 Make sure that you do not damage the O-rings. Dispose of the removed part in accordance with local rules and regulations. 5. Install the extension to the backbone. The O-rings secure the assembly. Document ID - 307322 D50S.XXXB.SD iLOQ S50 (...
- Page 21 Use a Torx T6 tool (clockwise) and a tightening torque of 0.55…0.65 Nm. NOTE! Depending on the length of the cylinder extension, make sure that you use as many fixing screws as possible. Document ID - 307322 D50S.XXXB.SD iLOQ S50 (...
-
Page 22: Mm Extension
Make sure that the parts inside the cylinder do not fall after pulling the modules apart. E.g., put the cylinder on the black knob and pull the unit vertical away. Document ID - 307322 D50S.XXXB.SD iLOQ S50 (... - Page 23 Make sure that you do not damage the O-rings. Dispose of the removed part in accordance with local rules and regulations. 5. Install the extension to the backbone. The O-rings secure the assembly. Document ID - 307322 D50S.XXXB.SD iLOQ S50 (...
- Page 24 Use a Torx T6 tool (clockwise) and a tightening torque of 0.55…0.65 Nm. NOTE! Make sure that you use seven fixing screws as displayed in the picture. Document ID - 307322 D50S.XXXB.SD iLOQ S50 (...
-
Page 25: Instructions For Use
NOTE! After 5 to 15 seconds, the cylinder will automatically be locked. When the cylinder is locked, the iLOQ Reader Knob cannot be rotated. 8. After installation Test the cylinder functionality after installation to make sure that it does not prevent the lock case from working properly. -
Page 26: Disposal Of Decommissioned Products
Never discard an electrical appliance in household waste. Follow the local laws and regulations for safe and environmentally friendly product disposal. Before discarding products, bear in mind that most iLOQ products are reusable. All programmable products can be reset to factory settings, after which they can be reused in another system. -
Page 27: Compliance
SIMPLIFIED EU DECLARATION OF CONFORMITY: Hereby, iLOQ Oy declares that the radio equipment type D50S Lock Cylinders are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.iloq.com/en/declaration-of-compliance/... - Page 28 S50 D50S.XXXB.SD Europrofile Lock Cylinder User Guide iLOQ www.support.iloq.com Elektroniikkatie 10 90590 Oulu Finland...
