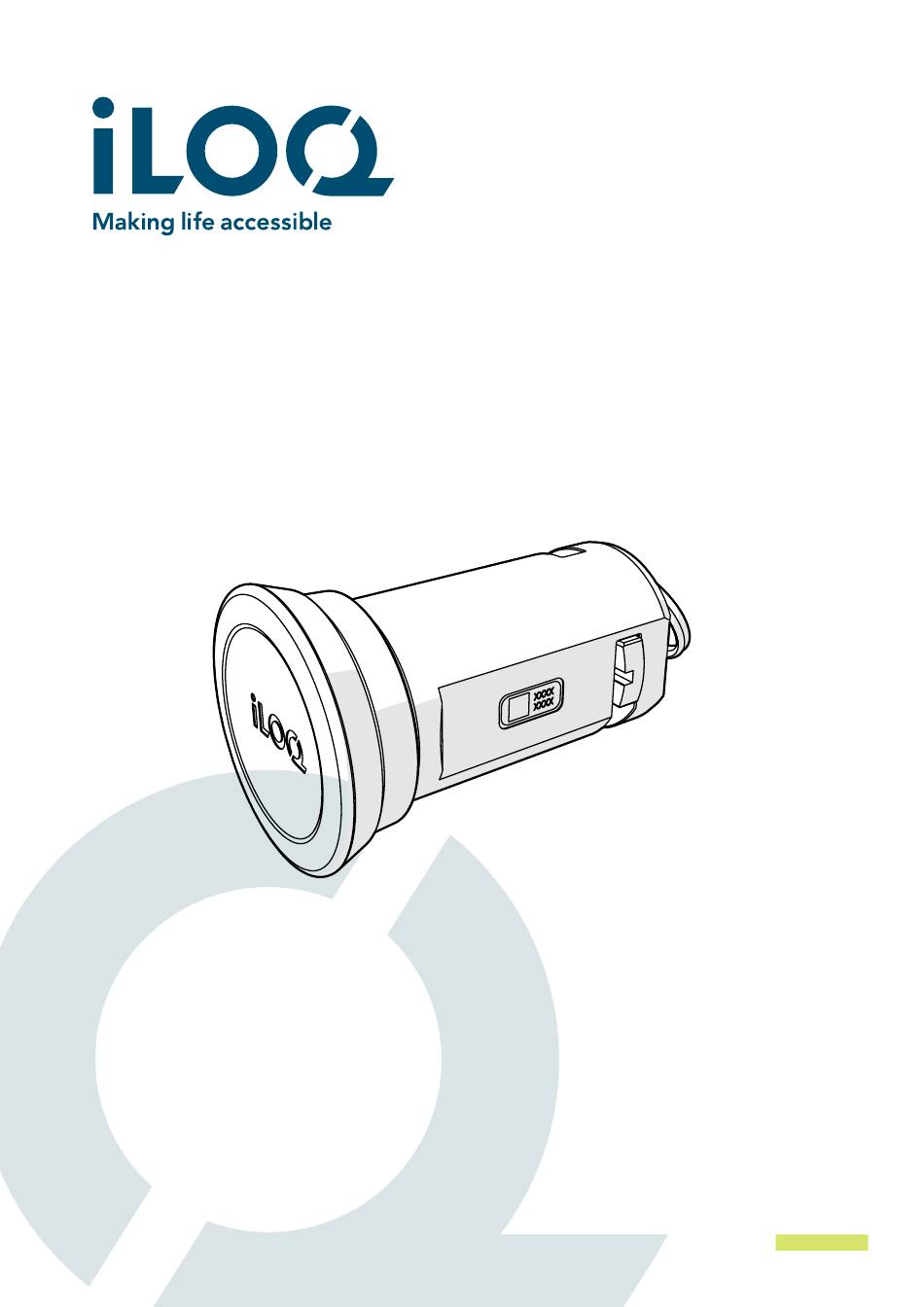

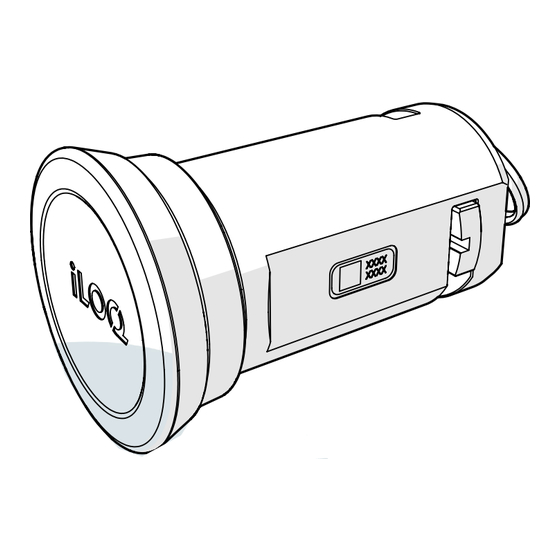

Key Tube Cylinder
User Guide
F50S.2x1.HZ
F50S.3x1.HZ/SD
F50S.4x1.HZ/SD
F50S.5x1.HZ/SD
F50S.611.SB
05/2023
Rev 1.0
Document ID
270443
iLOQ Oy
www.support.iloq.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F50S.2x1.HZ and is the answer not in the manual?

Questions and answers

Summary of Contents for iLoq F50S.2x1.HZ

  • Page 1 Key Tube Cylinder User Guide F50S.2x1.HZ F50S.3x1.HZ/SD F50S.4x1.HZ/SD F50S.5x1.HZ/SD F50S.611.SB 05/2023 Rev 1.0 Document ID 270443 iLOQ Oy www.support.iloq.com...
  • Page 2: Table Of Contents

    Safety Information ....................3 Safety signs ....................3 Overview ......................... 3 Care and Maintenance ..................3 Installation of the iLOQ F50S Key Tube Lock Cylinder ........4 Compatible Key Tubes .................. 4 Replacing the Reader Knob .................. 5 After installation ..................... 6 Instructions for use ....................
  • Page 3: Safety Information

    • The instructions should be carefully followed during installation and use. These instructions and any maintenance instructions should be passed on by the installer to the user. • The iLOQ F50S Key Tube Lock Cylinders must be installed and used carefully without excessive force. • Do not drop the product.
  • Page 4: Installation Of The Iloq F50S Key Tube Lock Cylinder

    Key Tube Cylinder User Guide 5. Installation of the iLOQ F50S Key Tube Lock Cylinder To conform with local requirements, use locally approved key tubes (please note: the key tube is not included in delivery). Mount the key tube according to the tube manufacturer’s instructions. To ensure reliable operation of the F50S Key Tube Lock Cylinder make sure that the tube is at a 4 degree angle to prevent water pooling inside and the key tube is mounted max.
  • Page 5: Replacing The Reader Knob

    Key Tube Cylinder User Guide 6. Replacing the Reader Knob The Reader Knob may need to be replaced if the length of the original knob is not suitable for the installation environment or the knob is damaged. Product: Order code: •...
  • Page 6: After Installation

    Open and close the F50S Key Tube Lock Cylinder to test the cylinder functionality after installation. 8. Instructions for use The F50S Key Tube Lock Cylinder needs to be initially programmed with a PC and an iLOQ P55S.1 Programming Key. See separate instructions for programming from the P55S.1 Programming Key user guide.
  • Page 7: Open The Key Tube

    After 5 to 15 seconds, the cylinder will automatically be locked. When the cylinder is locked, the iLOQ Reader Knob cannot be rotated. 3. Pull out the F50S Key Tube Lock Cylinder with both hands to prevent the lock cylinder from rotating uncontrollably.
  • Page 8: Lock The Key Tube

    1. Hold a valid key against the lock Reader Knob and wait until the key shows a green light. Note! Due to large variety of NFC enabled phone models and operating system versions, iLOQ cannot guarantee that all NFC-enabled phones will work seamlessly with our locks.
  • Page 9: Disposal Of Decommissioned Products

    Before discarding products, bear in mind that most iLOQ products are reusable. All programmable products can be reset to factory settings, after which they can be reused in another system.
  • Page 10: Compliance

    SIMPLIFIED EU DECLARATION OF CONFORMITY: Hereby, iLOQ Oy declares that the radio equipment type H50S Padlocks are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.iloq.com/en/company/patents-and-approvals/...
  • Page 11 Key Tube Cylinder User Guide UKCA Hereby, iLOQ Oy declares that the radio equipment type H50S Padlocks are in compliance with the UK relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: https://www.iloq.com/en/company/patents-and-approvals/...
  • Page 12 Key Tube Cylinder User Guide F50S.2x1.HZ F50S.3x1.HZ/SD F50S.4x1.HZ/SD F50S.5x1.HZ/SD F50S.611.SB iLOQ www.support.iloq.com Elektroniikkatie 10 90590 Oulu Finland...
