- Page 1 S50 C50S.XXX.SD(.SE) Oval cylinder User Guide 11/2023 Rev. 1.0 Document ID 306430 iLOQ Oy support.iloq.com...
-
Page 2: Table Of Contents
General notes....................4 Care and maintenance .................. 4 Installation ......................5 Installation of iLOQ C50S.1xx/2xx ..............5 Installation with iLOQ AC50.1 accessory ............. 6 Adjusting the knob distance ................. 7 Changing the knob ..................9 Adjusting the tail-plug .................. 10 4.5.1... -
Page 3: Safety Information

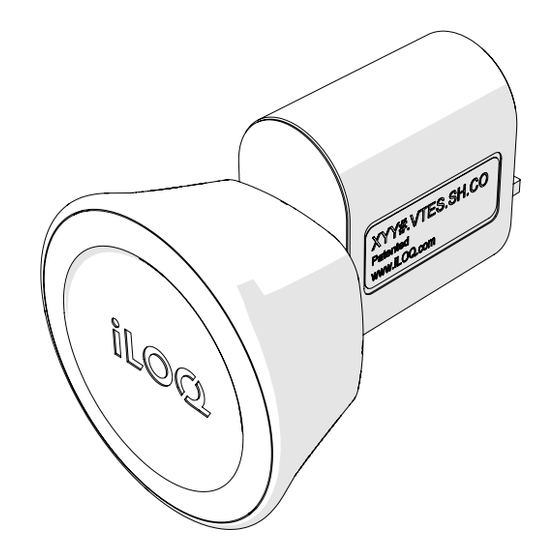

2. Overview The iLOQ C50S is a battery-free programmable electromechanical lock cylinder for the iLOQ S50 locking system. It is NFC-powered: no batteries are required for the lock. Opening with NFC enabled Android and iOS mobile phones or iLOQ K55S Key Fob. -
Page 4: Before Installation
• Do not modify the product in any way, except in accordance with those modifications described in these instructions. • The iLOQ C50S cylinders must be installed and used effortlessly without the use of excessive force. • Make sure that any seals or weather-stripping fitted to the complete door assembly do not inhibit the correct operations of the cylinder. -
Page 5: Installation
Contact your local iLOQ partner for more information. NOTE! If the lock case needs a tail piece to be left in the horizontal position, use the iLOQ AC50.1 accessory with the cylinder. Check out chapter "4.2 Installation with oval/Finnish retrofit cylinder centering piece". -
Page 6: Installation With Iloq Ac50.1 Accessory
See section 4.3 "Adjusting the knob distance". 4. Install the needed accessories and escutheons to finish the cylinder installation. 4.2 Installation with iLOQ AC50.1 accessory 1. Remove the tail piece from the tail plug. -
Page 7: Adjusting The Knob Distance
Adjustability: 4 mm in total with three fixing points C50S.121.SD Oval cylinder with a long adjustable reader C50S.121.SD.SE Oval cylinder with a Swedish tail piece and long adjustable reader C50S.221.SD Finnish retrofit cylinder with a long adjustable reader Document ID - 306430 iLOQ S50 (C50S.XXX.SD(.SE) Oval cylinder) - Page 8 1. Loosen the screw so that the knob can be moved. 2. Adjust the knob to the right distance and tighten the screw. Use a tightening torque of 1.5 Nm. Document ID - 306430 iLOQ S50 (C50S.XXX.SD(.SE) Oval cylinder)
-
Page 9: Changing The Knob
4.4 Changing the knob 1. Loosen the screw so that the knob can be removed. 2. Adjust the knob to the right distance and tighten the screw. Use a tightening torque of 1.5 Nm. Document ID - 306430 iLOQ S50 (C50S.XXX.SD(.SE) Oval cylinder) -
Page 10: Adjusting The Tail-Plug
1. Remove the tail piece and the holding spring. WARNING! Be careful when removing the holding spring to avoid eye injuries. 2. Turn the tail-plugin fixing T10 screw carefully to the left and remove the fixing screw. Document ID - 306430 iLOQ S50 (C50S.XXX.SD(.SE) Oval cylinder) - Page 11 3. Turn the tail-plug to adjust it with a suitable tool (for example, a spindle, flat-head screwdriver, etc.). Try to adjust the tail-plug first counter-clockwise by +22 degrees. 0° +22° -22° 0° 4. Tighten the T10 screw. Document ID - 306430 iLOQ S50 (C50S.XXX.SD(.SE) Oval cylinder)
-
Page 12: Cylinder Test
4.5.1 Cylinder test • Make sure that the cylinder does not prevent the lock casing from working properly. iLOQ S50 lock cylinders feature an automatic reset back to a locked state. 1. Open the cylinder with a valid key NOTE! Due to the large variety of phone... -
Page 13: Operating Instructions
3. Release the reader knob to make sure that it is not preventing lock-case functionality. • If the test fails (for example, the lock case gets stuck in an open position), use the iLOQ AC50.1 accessory with the cylinder. See chapter "4.2 Installation with oval/Finnish retrofit cylinder centering piece". -
Page 14: Disposal Of Decommissioned Products
Never discard an electrical appliance in household waste. Follow the local laws and regulations for safe and environmentally friendly product disposal. Before discarding products, bear in mind that most iLOQ products are reusable. All programmable products can be reset to factory settings, after which they can be reused in another system. -
Page 15: Compliance
SIMPLIFIED EU DECLARATION OF CONFORMITY: Hereby, iLOQ Oy declares that the radio equipment type C50S Lock Cylinders are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.iloq.com/en/declaration-of-compliance/... - Page 16 ISED Innovation, Science and Economic Development Canada (ISED) The conformity was assessed in accordance the following standard: ISED - ICES 003, Issue 7: 2020 - class B Document ID - 306430 iLOQ S50 (C50S.XXX.SD(.SE) Oval cylinder)
- Page 17 S50 C50S.XXX.SD(.SE) Oval cylinder User Guide iLOQ support.iloq.com Elektroniikkatie 10 90590 Oulu Finland...
