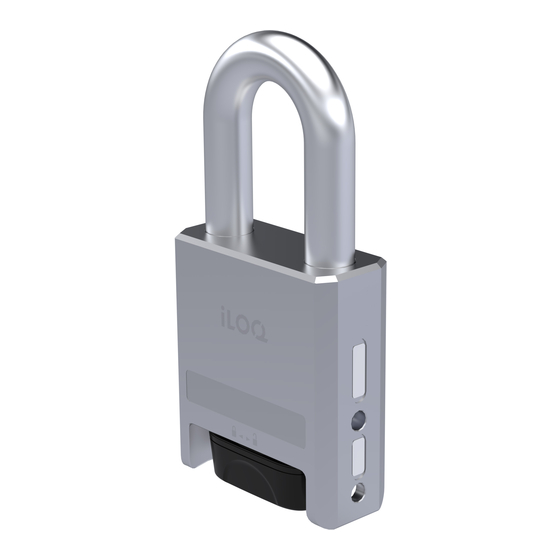

- Page 1 H50S Padlock User Guide iLOQ S5 / S50 H50S.x31.HC H50S.x41.HC 05/2023 Rev. 2.0 Document ID 189730 iLOQ Oy support.iloq.com...
-
Page 2: Table Of Contents
Before installation ....................3 General notes....................3 Care & maintenance ..................4 After installation ..................... 4 Installation ......................4 Operating instructions for iLOQ H50S ..............5 Opening ......................5 Closing ......................7 6.2.1 Locking manually (H50S.x41 versions) ........... 7 6.2.2 Locking with a key (H50S.x31 versions) ......... -
Page 3: Safety Information
• The key has to be kept securely so that only an authorized person may have access. • In case of losing a key, blocklisting of the lost key shall be done with the iLOQ Manager software and affected locks shall be reprogrammed. -
Page 4: Care & Maintenance
• Install the padlock so that it hangs freely and cannot be submerged in water. 90° • Use a rain cover (iLOQ A10.73 or A10.74) to ensure the longevity and functionality of the padlock. • An accessory chain (iLOQ AH50.10, AH50.11 or AH50.12) can be used to secure the padlock to the installation site. -
Page 5: Operating Instructions For Iloq H50S
To open the H50S padlock, you can either use: • An iLOQ S50 Key Fob (with a valid access right), by placing the Key Fob in the middle of the black knob as shown on the left hand side picture. - Page 6 2. Turn the reader knob clockwise 180°. The lock stays in the open-status for 5 to 15 seconds and automatically returns back to the locked-status if not opened (depending on the configured lock opening time). Document ID - 189730 iLOQ S5/S50 (iLOQ H50S)
-
Page 7: Closing
3. Pull the shackle open. Closing 6.2.1 Locking manually (H50S.x41 versions) 1. Close the shackle. Document ID - 189730 iLOQ S5/S50 (iLOQ H50S) - Page 8 2. Turn the reader knob 180° counterclockwise. 3. After closing the lock, ensure that the knob is in locked position and the padlock remains closed. Document ID - 189730 iLOQ S5/S50 (iLOQ H50S)
-
Page 9: Locking With A Key (H50S.x31 Versions)
1. Close the shackle. 2. Present a valid key to the reader knob to activate the lock. Wait until the key shows a green light to indicate that the lock is unlocked. Document ID - 189730 iLOQ S5/S50 (iLOQ H50S) - Page 10 (depending on the configured lock opening time). 4. After closing the lock, ensure that the knob is in locked position and the padlock remains closed. Document ID - 189730 iLOQ S5/S50 (iLOQ H50S)
-
Page 11: Replacing The Reader Knob
2. Before installing the new knob, add a small amount of CRC silicon grease to the knobs IP gasket. 3. Insert the new knob on and tighten the fixing screw (1.5 Nm). Document ID - 189730 iLOQ S5/S50 (iLOQ H50S) -
Page 12: Disposal Of Decommissioned Products
Never discard an electrical appliance in household waste. Follow the local laws and regulations for safe and environmentally friendly product disposal. Before discarding products, bear in mind that most iLOQ products are reusable. All programmable products can be reset to factory settings, after which they can be reused in another system. -
Page 13: Compliance
SIMPLIFIED EU DECLARATION OF CONFORMITY: Hereby, iLOQ Oy declares that the radio equipment type H50S Padlocks are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.iloq.com/en/company/patents-and-approvals/... - Page 14 ISED - ICES 003, Issue 7: 2020 - class B UKCA Hereby, iLOQ Oy declares that the radio equipment type H50S Padlocks are in compliance with the UK relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: https://www.iloq.com/en/company/patents-and-approvals/...
- Page 15 H50S Padlock User Guide iLOQ S5 / S50 H50S.x31.HC H50S.x41.HC iLOQ www.support.iloq.com Elektroniikkatie 10 90590 Oulu Finland...
