iLOQ D10X.XXX.SB (V.9)
LOCK CYLINDER MOUNTING
AND CARE INSTRUCTIONS
BEFORE INSTALLING
1. These instructions should be carefully followed during installation.
2. These instructions should be passed on by the installer to the user.
3. iLOQ D10x Europrofile cylinder must be installed effortlessly without the use of excessive force.
4. If cylinder length adjustment is needed, use iLOQ A10.Ex.x extension piece.
5. The product should not be modified in any way except in accordance with those modifications
described in these instructions.
6. The installer of the iLOQ lock cylinder must be authorized by iLOQ.
7. It is recommended to use tools from iLOQ tool set T009/T010.

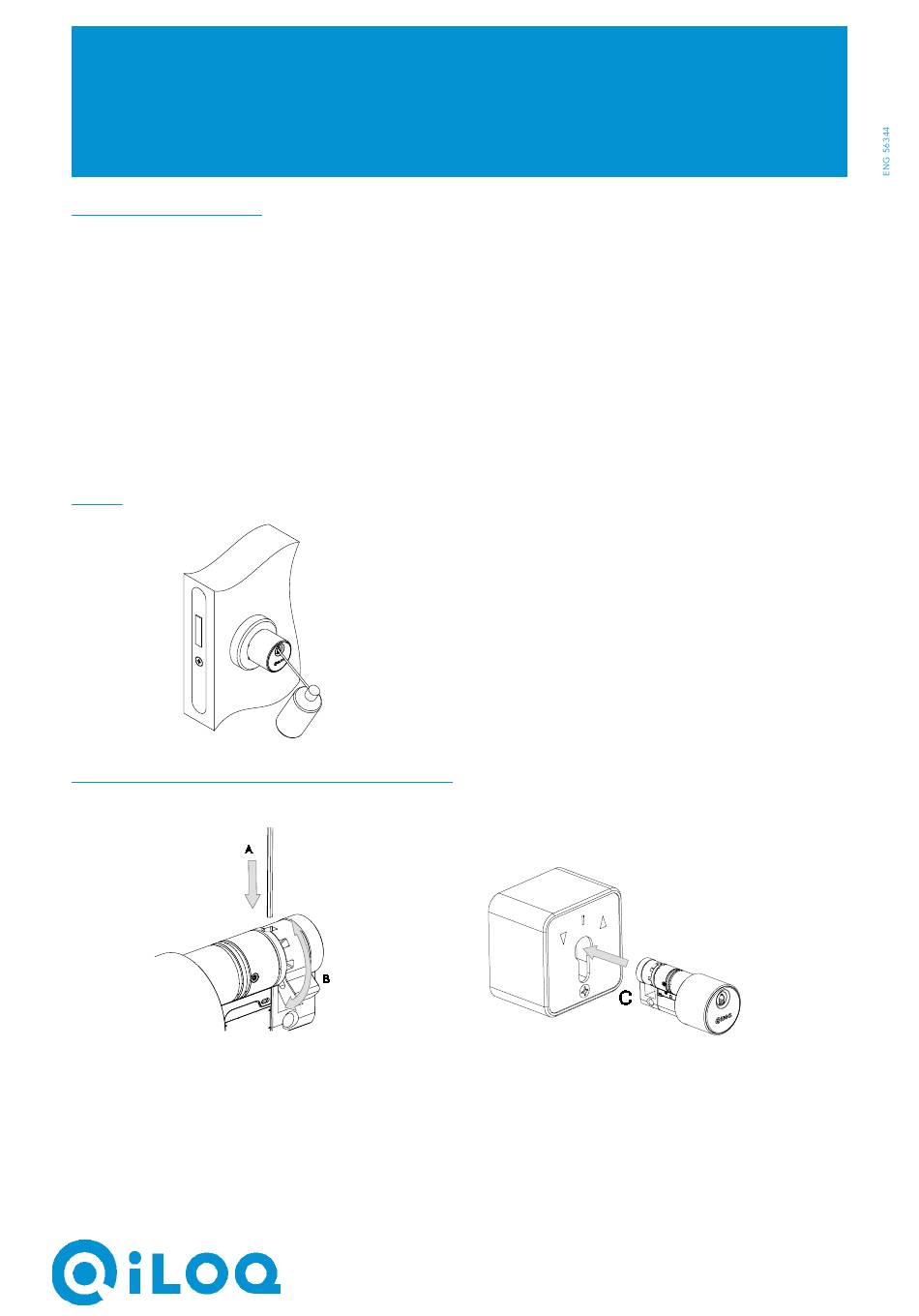

CARE
INSTALLATION OF iLOQ D10X.1XX SERIES
1
A. Adjust the cam position if necessary by pushing
the locking pin for example by TORX 6 tool from
iLOQ tool set.
B. Rotate the cam in new position. Ensure that new
position is locked.
After 10 000 usages, clean contact rolls lightly with
lint-free cotton pad. Spray small amount of high
quality lock oil i.e. CRC lock oil (with PTFE) onto
contact rolls.
2
C. Fix cylinder into a key switch according the key
switch manufacturer's instructions.
iLOQ Oy, Oulu, Finland
