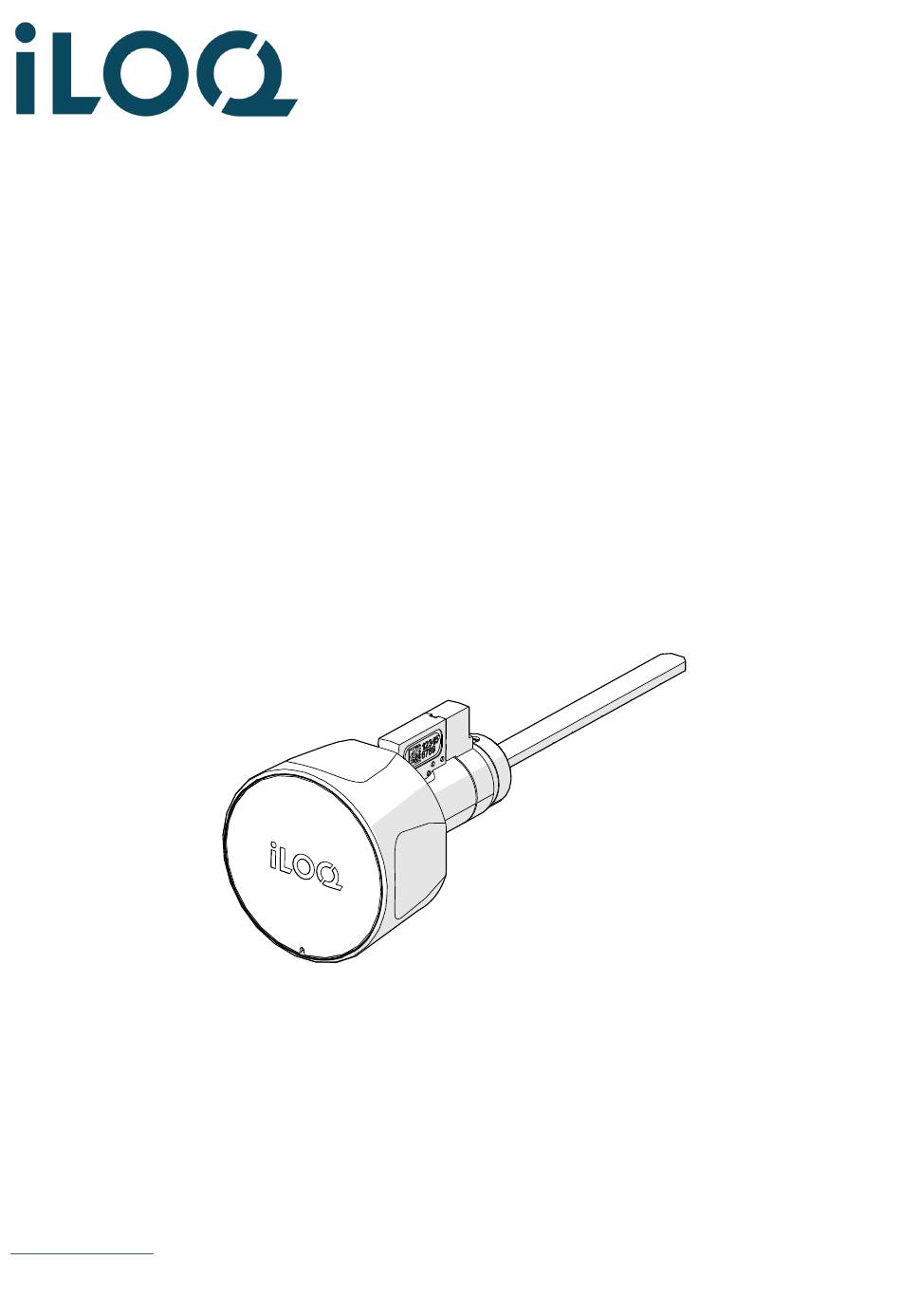

iLOQ S50

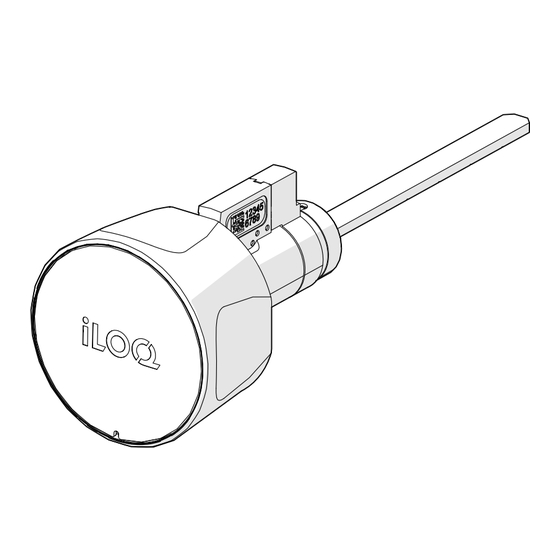

KIK Schlage for Deadbolt Cylinder
Y50S.T.TL01
Y50S.T.TL02
User Guide
10/2023
Rev. 1.0
Document ID
304932
iLOQ Oy
support.iloq.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iLoq S50

Summary of Contents for iLoq S50

  • Page 1 S50 KIK Schlage for Deadbolt Cylinder Y50S.T.TL01 Y50S.T.TL02 User Guide 10/2023 Rev. 1.0 Document ID 304932 iLOQ Oy support.iloq.com...

  • Page 2: Table Of Contents

    Overview ......................... 4 iLOQ KIK Schlage for deadbolt cylinder ............. 4 Tools supplied ....................4 Lazy tailpiece for iLOQ KIK Schlage Cylinder Y50S.T.TL01 ......5 Lazy tailpiece for iLOQ KIK Schlage Cylinder Y50S.T.TL02 ......5 Before installation ....................6 Safety ......................6 General notes....................

  • Page 3: Safety Information

    Read these instructions carefully before using products. This information is to ensure your safety and long lifetime of the products. General warning sign. Indicates the presence of a hazard which could result in personal injury, equipment damage, or loss of data. Document ID - 304932 iLOQ S50 (Y50S.T.TL01, Y50S.T.TL02)

  • Page 4: Overview

    2. Overview 2.1 iLOQ KIK Schlage for deadbolt cylinder The iLOQ Y50S.T.TL01 and Y50S.T.TL02 are battery-free programmable NFC cylinders for the iLOQ S50 product family in the 5 Series platform. 1. Front cap 2. Knob 3. Cylinder 4. Plunger 5. Lazy tailpiece 6.

  • Page 5: Lazy Tailpiece For Iloq Kik Schlage Cylinder Y50S.t.tl01

    2.3 Lazy tailpiece for iLOQ KIK Schlage Cylinder Y50S.T.TL01 The lazy tailpiece for KIK Schlage Cylinder Y50S.T.TL01 has a 45 degrees angle, and it is used with Schlage B560/B660 deadbolts or with any other deadbolts that have a bolt with a similar 45 degrees angle.

  • Page 6: Before Installation

    3. Before installation The content of this manual is current at the time of publication. iLOQ reserves the right to change availability of any item in this guide, its design, construction, and/or its materials. For the most current information, please see our website at support.iloq.com.

  • Page 7: Terms Of Service And Warranty

    • The lock cylinder has a 24 month warranty. By purchasing or using the product, you agree to the Terms of Service found at www.iloq.com. • If you suspect that this product is broken, do not attempt to repair it. Contact iLOQ customer support for professional assistance. 3.4 Care & maintenance The product is designed to be maintenance-free.

  • Page 8: Installation

    WARNING! Risk of injury. Do not leave the knob removal tool inside the knob. Hold the knob securely during installation and removal to prevent the tool from accidentally popping off. 4.1 Installation of the iLOQ KIK for Deadbolt Cylinder 1. Cut the tailpiece to the proper length according to the door thickness.
  • Page 9 4. Remove the tool from the knob. 5. Slide the KIK cylinder into the deadbolt body. NOTE! An iLOQ high guard escutcheon for Schlage deadbolt B560/ B660 could be used to provide an extra protection to the knob. Remove the...
  • Page 10 7. While pressing on the tool, slide the knob onto the cylinder until it stops. NOTE! Make sure that the knob is inserted the correct way around so that the straight edges of the cylinder and knob align horizontally. 8. Remove the tool from the knob. Document ID - 304932 iLOQ S50 (Y50S.T.TL01, Y50S.T.TL02)
  • Page 11 9. Insert the front cap into the knob by aligning the four tabs of the cap with the four pockets in the knob. The iLOQ logo on the cap should be horizontal when the cylinder is locked. NOTE! The front cap can be installed in four different orientations (0º, 90º, 180º and 270º...

  • Page 12: Operating Instructions

    5. Operating instructions Read and follow the instructions in this manual and any other instructions provided by iLOQ. Failure to do so may result in injury, malfunction, damage or a safety hazard.. WARNING! This product contains small magnets: • Medical devices, such as implanted pacemakers and defibrillators may contain sensors that respond to magnets and radios when in close contact.

  • Page 13: Installing The Ada Adapter

    1. Insert the cap removal tool into the hole of the cap to remove the front cap from the knob. 2. Insert the knob removal tool into the front of the knob. While holding the back of the knob, press firmly on the tool until it clicks. Document ID - 304932 iLOQ S50 (Y50S.T.TL01, Y50S.T.TL02)
  • Page 14 NOTE! The screw side should be facing the door and the upper lip of the adapter should sit on top of the upper lip of the knob NOTE! The ADA adapter can be installed in four different orientations (0º, 90º, 180º and 270º angles). Document ID - 304932 iLOQ S50 (Y50S.T.TL01, Y50S.T.TL02)
  • Page 15 6. Close the ADA-adapter. 7. Tighten the T6 fixing screw on the bottom of the adapter (Max 0.1 Nm of torque). Document ID - 304932 iLOQ S50 (Y50S.T.TL01, Y50S.T.TL02)
  • Page 16 9. While pressing on the tool, slide the knob onto the cylinder until it stops. NOTE! Make sure that the knob is inserted the correct way around so that the straight edges of the cylinder and knob align horizontally. 10. Remove the tool from the knob. Document ID - 304932 iLOQ S50 (Y50S.T.TL01, Y50S.T.TL02)
  • Page 17 11. Insert the front cap into the knob by aligning the four tabs of the cap with the four pockets in the knob. The iLOQ logo on the cap should be horizontal when the cylinder is locked. NOTE! The front cap can be installed in four different orientations (0º, 90º, 180º and 270º...

  • Page 18: Changing The Tailpiece Of A Kik Cylinder

    7. Changing the tailpiece of a KIK cylinder NOTE! Only use an authentic iLOQ tailpiece. The use a of non-iLOQ tailpiece can compromise the built-in security features. Parts needed: • AX50.Y.G.02 - Crown installation tool • AX50.Y.TX - KIK Tailpiece (specify the needed tailpiece when ordering) 1.
  • Page 19 3. Remove the tailpiece from the cylinder. 4. Push the plunger back into its designated position. 5. Insert the new tailpiece and place the spacer in its position. Document ID - 304932 iLOQ S50 (Y50S.T.TL01, Y50S.T.TL02)
  • Page 20 6. Place the crown in its position. 7. Insert the crown installation tool and turn it clockwise until it bottoms out. 8. Turn the crown installation tool slightly counterclockwise until it stops. Document ID - 304932 iLOQ S50 (Y50S.T.TL01, Y50S.T.TL02)

  • Page 21: Replacing The Knob

    1. Insert the cap removal tool into the hole of the cap to remove the front cap from the knob. 2. Insert the knob removal tool into the front of the knob. While holding the back of the knob, press firmly on the tool until it clicks. Document ID - 304932 iLOQ S50 (Y50S.T.TL01, Y50S.T.TL02)
  • Page 22 5. While pressing on the tool, slide the knob onto the cylinder until it stops. NOTE! Make sure that the knob is inserted the correct way around so that the straight edges of the cylinder and knob align horizontally. Document ID - 304932 iLOQ S50 (Y50S.T.TL01, Y50S.T.TL02)
  • Page 23 7. Insert the front cap into the knob by aligning the four tabs of the cap with the four pockets in the knob. The iLOQ logo on the cap should be horizontal when the cylinder is locked. NOTE! The front cap can be installed in four different orientations (0º, 90º, 180º and 270º...

  • Page 24: Converting A Kik Schlage Cylinder To A Mortise Cylinder

    9. Knob removal tool WARNING! Risk of injury. Do not leave the knob removal tool inside the knob. Hold the knob securely during installation and removal to prevent the tool from accidentally popping off. Document ID - 304932 iLOQ S50 (Y50S.T.TL01, Y50S.T.TL02)
  • Page 25 1. Remove the KIK cylinder plunger using tweezers. 2. Insert the crown installation tool into the crown piece of the KIK cylinder and turn it counterclockwise. Document ID - 304932 iLOQ S50 (Y50S.T.TL01, Y50S.T.TL02)
  • Page 26 5. Insert the knob removal tool into the front of the knob to remove the knob from the cylinder. Press firmly on the tool until it clicks while holding the back of the knob. Document ID - 304932 iLOQ S50 (Y50S.T.TL01, Y50S.T.TL02)
  • Page 27 6. Pull the knob from the cylinder. 7. Remove the tool from the knob. 8. Insert the mortise front frame into the front of the cylinder. Document ID - 304932 iLOQ S50 (Y50S.T.TL01, Y50S.T.TL02)
  • Page 28 10. Attach the mortise housing to the front frame and secure it with the two T20 screws. 11. Attach the mortise cam to the cylinder using two T6 screws (max. 0.5 Nm of torque). Document ID - 304932 iLOQ S50 (Y50S.T.TL01, Y50S.T.TL02)
  • Page 29 13. While pressing on the tool, slide the knob onto the cylinder until it stops. NOTE! Make sure that the knob is inserted the correct way around so that the straight edges of the cylinder and knob align horizontally. 14. Remove the tool from the knob. Document ID - 304932 iLOQ S50 (Y50S.T.TL01, Y50S.T.TL02)
  • Page 30 15. Insert the front cap into the knob by aligning the four tabs of the cap with the four pockets in the knob. The iLOQ logo on the cap should be horizontal when the cylinder is locked. NOTE! The front cap can be installed in four different orientations (0º, 90º, 180º and 270º...

  • Page 31: Disposal Of Decommissioned Products

    Never discard an electrical appliance in household waste. Follow the local laws and regulations for safe and environmentally friendly product disposal. Before discarding products, bear in mind that most iLOQ products are reusable. All programmable products can be reset to factory settings, after which they can be reused in another system.

  • Page 32: Compliance

    • Consult the dealer or an experienced radio/TV technician for help. ISED Innovation, Science and Economic Development Canada (ISED) The conformity was assessed in accordance the following standard: ISED - ICES 003, Issue 7: 2020 - class B Document ID - 304932 iLOQ S50 (Y50S.T.TL01, Y50S.T.TL02)
  • Page 33 Document ID - 304932 iLOQ S50 (Y50S.T.TL01, Y50S.T.TL02)
  • Page 34 S50 KIK Schlage for Deadbolt Cylinder Y50S.T.TL01 Y50S.T.TL02 User Guide iLOQ support.iloq.com Elektroniikkatie 10 90590 Oulu Finland...
